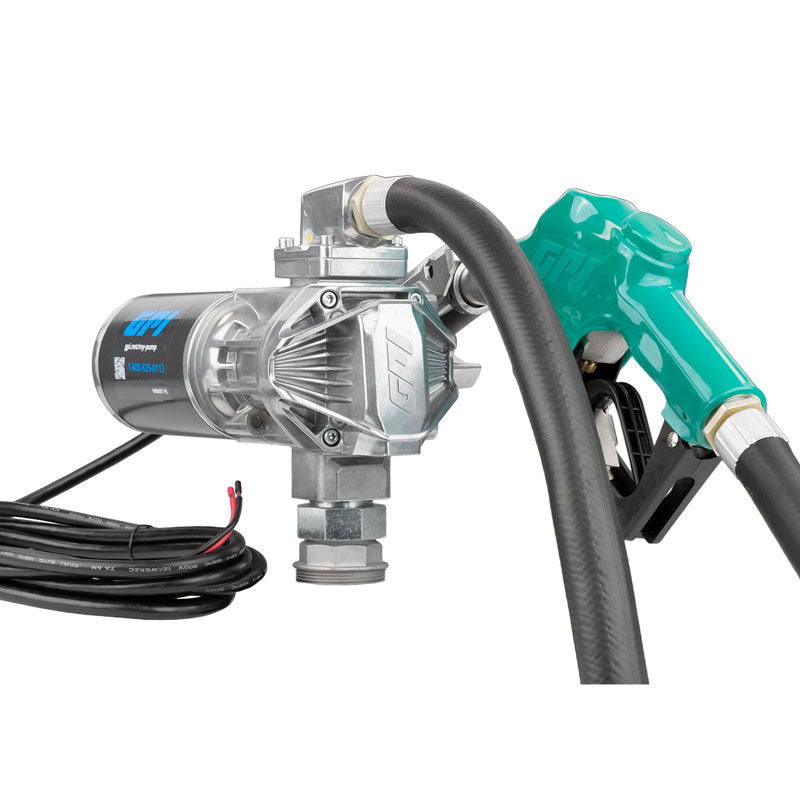

20 GPM 12V Fuel Transfer Pump with Automatic Shut-Off Diesel Nozzle | BS-G20-012AD
SKU BS-G20-012AD
Original price
$979.00
-
Original price
$979.00
Original price
$979.00
$979.00
-
$979.00
Current price
$979.00
20 GPM 12V Fuel Transfer Pump Automatic Shut-Off Diesel Nozzle
Recommended for use with these fuels:
Diesel Fuel up to B20 | Gasoline up to E15 | Kerosene
The 20 GPM 12V Fuel Transfer Pump with Automatic Shut-Off Diesel Nozzle is the first gear pump to deliver a true 20 GPM through a 14 ft. hose with an automatic nozzle. Designed for high performance, it features quick-connect points for fast accessory attachment and a rotary gear design that ensures long-lasting operation with minimal maintenance. Built from high-quality diecast aluminum, this durable fuel transfer pump is self-priming, easy to use, and engineered to perform reliably for years.
12V Fuel Transfer Pump with Auto Shut-Off Diesel Nozzle Features:
- Quick-fit modular makes it easy to attach a filter, meter or both to build your own custom system
- Powder coated motor can and aluminum body to prevent rust and survive all weather conditions
- Includes a Quick-Fit 1 in. NPT 90 degree outlet to provide multidirectional options
- Drip catch - Lockable nozzle holder keeps your truck and tanks clean and stops fuel theft
- Rotary gear design: fewer moving parts means less friction and wear on components, for minimal maintenance and a longer pump life
- Factory-Installed power cord saves installation time
- Spin collar mount makes installation and pump orientation easy - fits any 2" NPT tank
20 GPM 12V Fuel Transfer Pump with Automatic Shut-Off Diesel Nozzle Specifications
| Max. Flow Rate | 20 GPM (76 L/min) |
| Voltage Input | 12V (DC) |
| Horsepower | 0.40 |
| Technology | Rotary Gear |
| Amps Rated | 34 amps |
| Duty Cycle | 30 min on / 30 min off |
| Power Cord | 18 ft. (5.5m), 12/2 AWG, Factory Installed |
| Max. Discharge Pressure | 12 PSI (0.82 bar) |
| Operating Temperature | -22° F to 131° F (-30° C to 55° C) |
| Suction Lift | Up to 10 ft. (3 m) at Sea Level 70° F (21.1° C) |
| Discharge Lift | Up to 15 ft. (4.5 m) at Sea Level 70° F (21.1° C) |
| Pump Housing Material | Powder Coated, Corrosion-Resistant Diecast Aluminum |
| Wetted Materials | Acetal | Aluminum | FKM | NBR | PPS | Stainless Steel |
| Mounting Type/Thread | Spin Collar, 2in. MNPT |
| Suction Pipe | Polypropylene, Telescoping 15 to 40in. x 1in. MNPT |
| Inlet | 1 in. FNPT |
| Outlet | Modular, 1 in. FNPT |
| Dispensing Hose | 14 ft. (5.2 m) x 1 in. MNPT |
| Nozzle | 1 in. FNPT Inlet, Automatic Shut-off, Diesel |
| Nozzle Holder Type | Lockable |
| What's in the Box | G20-12AD Fuel transfer pump, Auto-shut off diesel nozzle, Dispensing hose, Factory-installed power cord, Telescoping suction pipe, Modular fitting w/hardware, Tank adapter, Fuse assembly, Owner's manual |
| Warranty | Limited Lifetime Warranty |
| UPC | 031401007183 |
| Approvals | cULus Motor Listed for Hazardous Locations Class I, Division 2, Group D USA and Canada |
