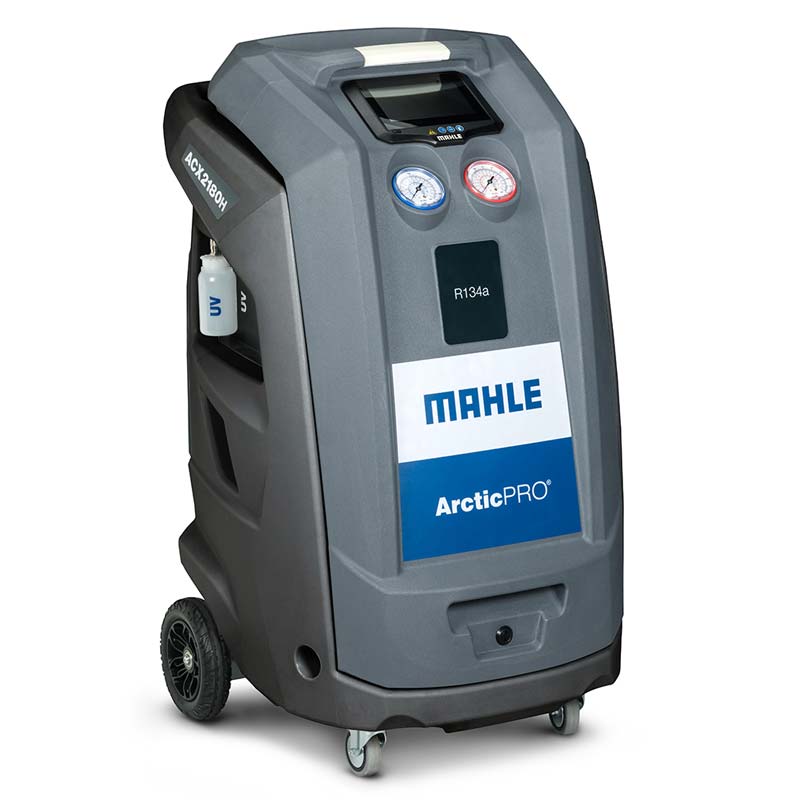

The ArcticPRO ACX2180H offers flexbility with the same benefits of the ACX2180 but the added capability of servicing hybrid vehicles.

High Performance R134a Air Conditioning Handling System

ArcticPRO ACX2180H Refrigerant Handling System Features

• State-of-the-art ergonomic design, 7" capacitive touch LCD display, and intuitive user interface set a new industry standard
• Contains three transducers, providing reduced process times over single sensor units
• Hybrid certified for high voltage compressor service
• LED light indicates status visible from anywhere in the workshop
• iOS and Android capable phone app allowing remote service session mirroring and advanced functions
• Best-in-class serviceability with a new ergonomic hinged service door simplifies unit service
• Permanent automatic wireless software updates ensure you always have the latest features
• Remote support for technicians allows MAHLE to connect to a unit over WiFi for troubleshooting and advanced support
• Data management and reporting metrics offer the ability to log and monitor services, allowing analytics for proactive service reminders, refrigerant use optimization, warranty reporting, and more
• Every unit is built to be easily repaired by the owner; nationwide service centers and lifetime phone support coverage are proudly offered
• Network printing capabilities retain valuable service records and print services provided for the customer

Optional Features for the ArcticPRO ACX2180H

• Thermal Printer. Allows printing of service reports.
• Refrigerant identifier prevents contamination of machine internals.

ArcticPRO ACX2180H Specifications

• Certifications: SAE J2788, SAE J2099, UL 1963
• Charge Performance: +/- 0.5 oz. at 70° to 75° F (+/- 15g at 21° to 24° C)
• Recovery Performance: 95% at 70° to 75° F (21° to 24° C) within 30 minutes
• Operation: Fully Automatic
• Charging Cylinder: 30 lb. (13.6 kg) DOT
• Compressor: 3/8 HP - 0.279 kW
• Dimensions (H × W × D): 47 in × 29 in × 29 in (119 cm × 74 cm × 74 cm)
• Weight: 215 lb. (98 kg)
• Display: 7” Capacitive Touch Screen
• Filter Drier Capacity: 150 lb. (75 kg)
• Hoses: 9 ft. (2.75 m)
• Hybrid Function: Certified (ACX2180H only)
• Languages: English, French, Spanish
• Operating Ranges: 50° to 122° F (10° to 50° C)
• Power Source: 120 VAC - 60 HZ - 12 AMP
• Printer: Optional
• Vacuum Pump: 1.8 CFM dual stage
• Warranty: 1 Year Labor, 2 Years Parts
