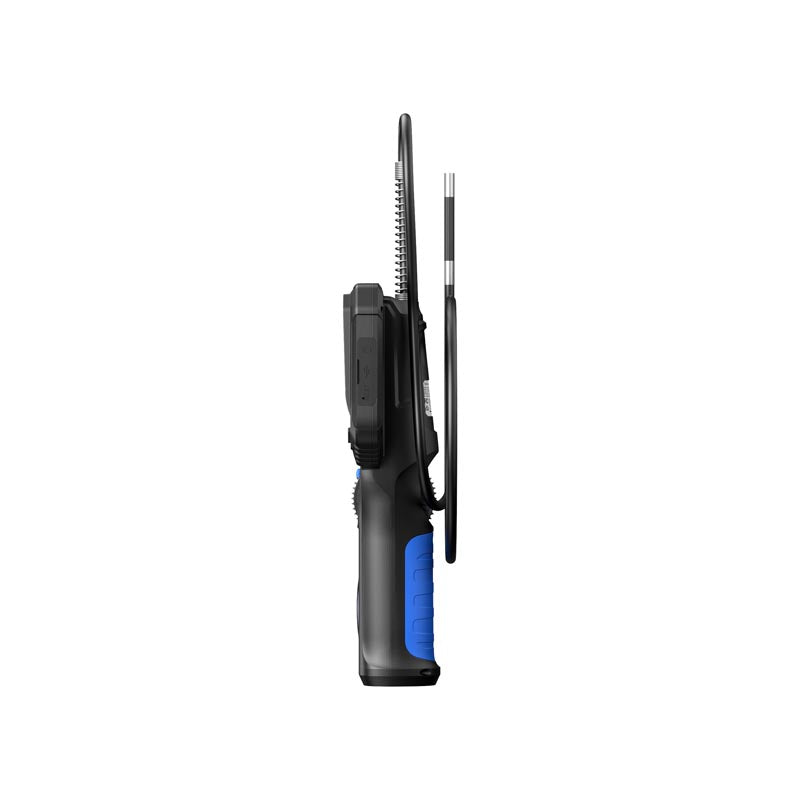

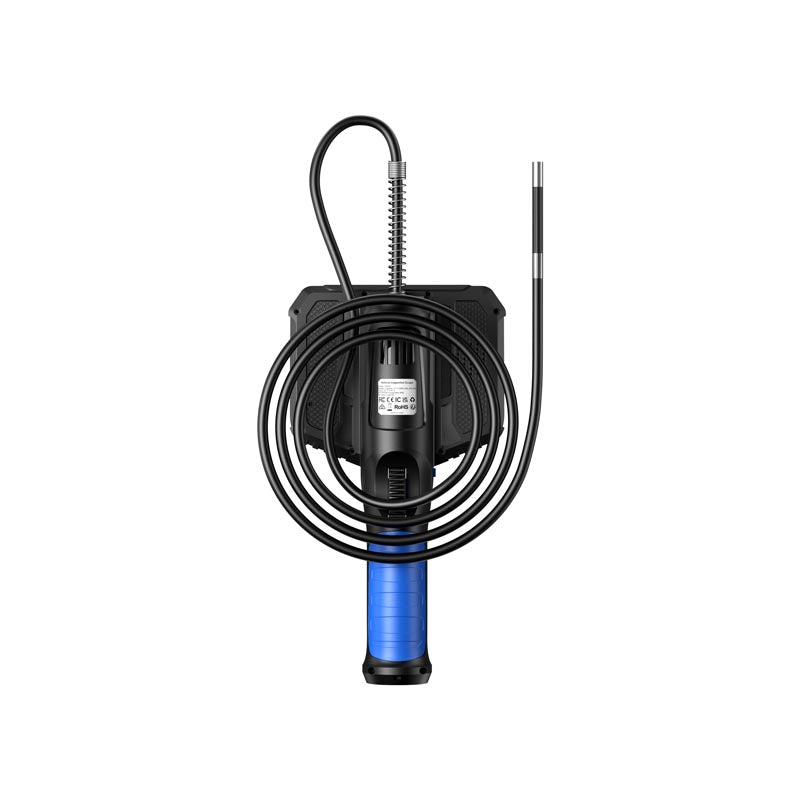

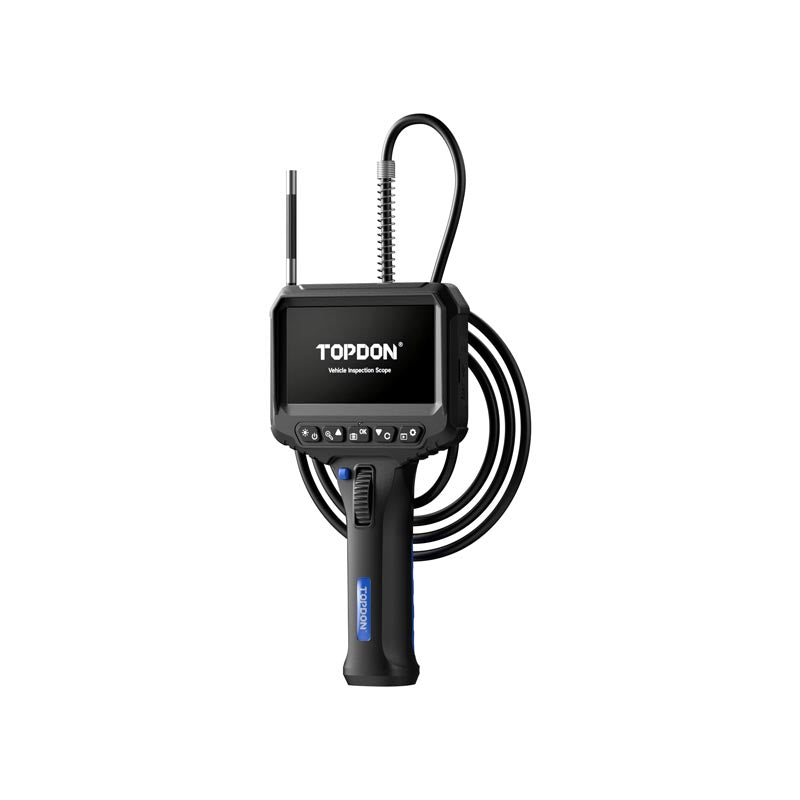

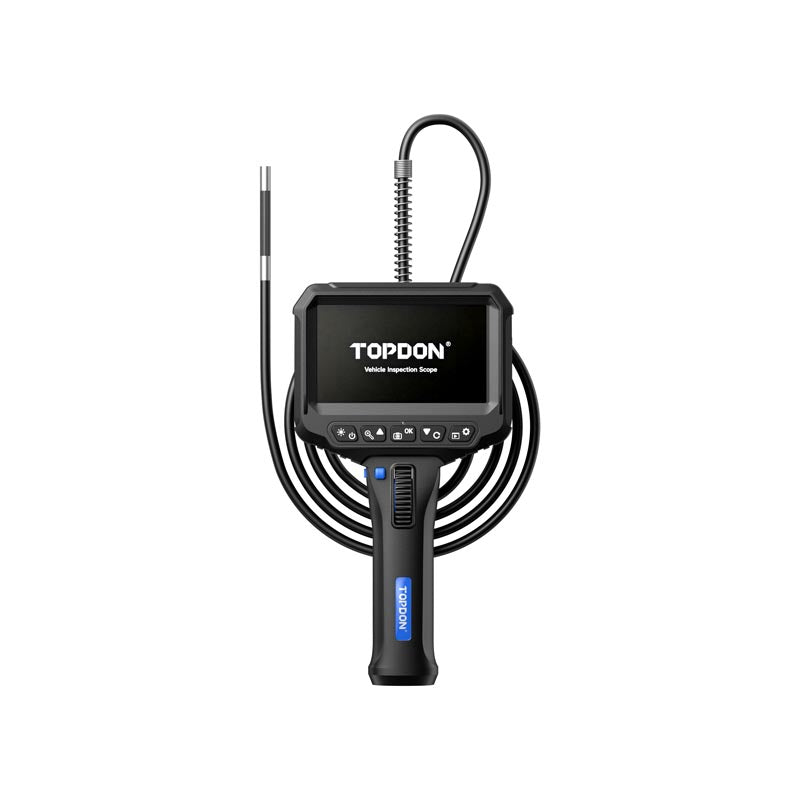

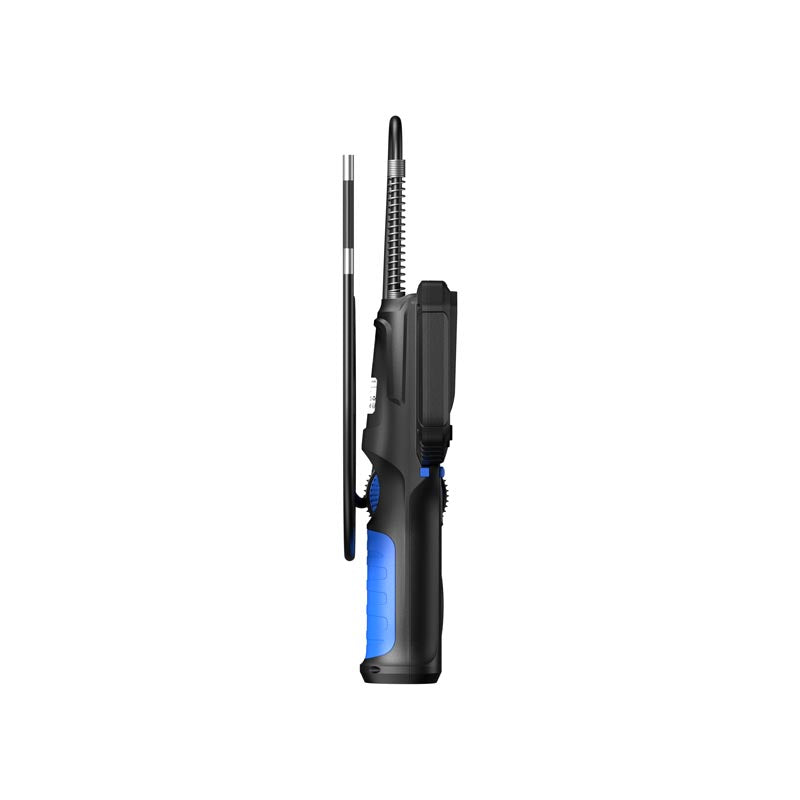

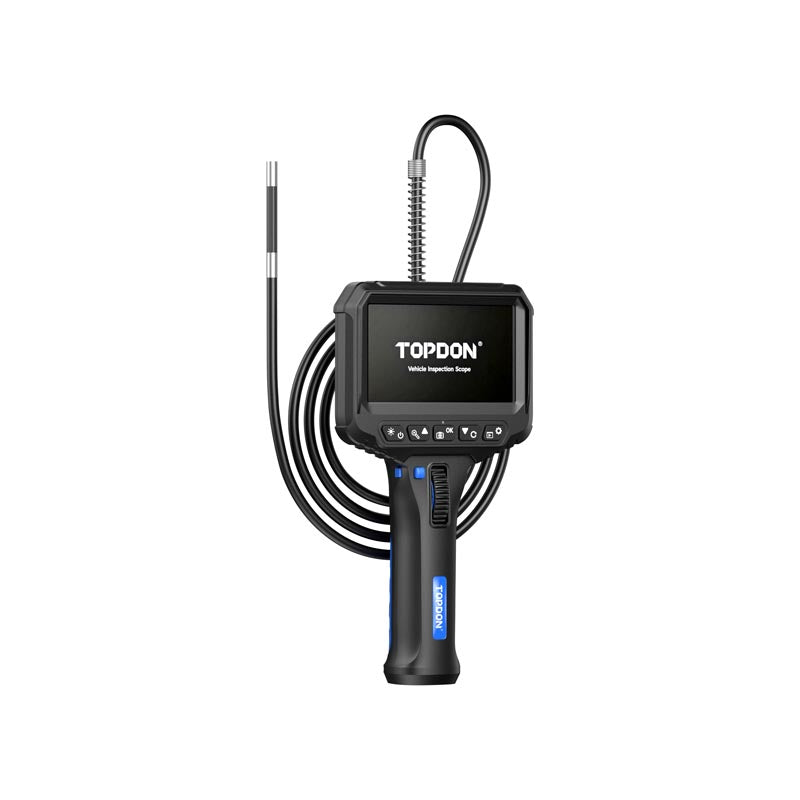

TOPDON VIS002 Articulating Borescope, 210° Camera

The TOPDON VIS002 articulating borescope gives technicians a clear view into tight, hard-to-reach areas without unnecessary disassembly. Featuring a 210° two-way articulating camera, 5.5 mm probe, 4.3-inch IPS display, 1 MP HD camera, IP67-rated probe, and semi-rigid cable, it delivers the visibility and control needed for confident automotive inspections.

Inspect Tight Engine Areas Without Unnecessary Disassembly

The ultra-slim 5.5 mm probe passes through narrow access points, making it ideal for inspecting gasoline and diesel engines through spark plug and glow plug openings. Reach deep into confined spaces to identify hidden problems faster while reducing unnecessary teardown.

Clear Images for More Confident Diagnoses

The 1 MP HD camera with a large-aperture lens captures bright, detailed inspection images to help reveal carbon buildup, spark plug cracks, cylinder scoring, corrosion, leaks, and other hidden defects. Get the visibility needed to make informed repair decisions.

Look Around Obstacles with 210° Articulation

The two-way articulating camera bends left and right through a 210° range, making it easier to inspect around obstacles and hidden components. An integrated thumbwheel provides smooth control so technicians can position the camera at the angle needed to inspect engine cylinders, intake ports, wiring channels, HVAC systems, and more.

See Inspection Results Instantly

The integrated 4.3-inch IPS display provides bright, detailed images with accurate color and wide viewing angles. Inspect and diagnose problems immediately without a smartphone, app, or Wi-Fi connection. Simply power on the VIS002 and get to work.

Built for Challenging Automotive Inspections

The IP67-rated probe provides protection against dust and water exposure while offering enhanced protection in high-temperature conditions. Combined with a semi-rigid cable, the VIS002 is built to handle demanding inspection work around engines, exhaust systems, and other challenging areas.

Adjustable LED Lighting for Better Visibility

Eight adjustable LED lights help optimize brightness when working in dark spaces, reflective surfaces, and confined areas. Adjust the lighting to capture clearer, more balanced images with less glare and better visibility.

Record and Document Your Findings

Built-in photo and video recording lets technicians capture, review, and share inspection results. The VIS002 includes a 32GB microSD card and supports cards up to 128GB, providing ample storage for inspection history and documentation.

Recover Dropped Parts from Tight Spaces

The VIS002 does more than inspect. Included hook and magnet attachments help retrieve dropped screws, nuts, clips, and other small parts from confined spaces. Recover lost objects without unnecessary disassembly when working deep inside engine bays or other hard-to-reach areas.

• Probe Diameter: 5.5 mm
• Camera Articulation: 210° Two-Way
• Camera Resolution: 1 MP HD
• Display: 4.3-inch IPS
• Probe Rating: IP67
• Lighting: 8 Adjustable LED Lights
• Storage Included: 32GB microSD Card
• Maximum Supported Storage: 128GB
• Recording: Photo and Video
