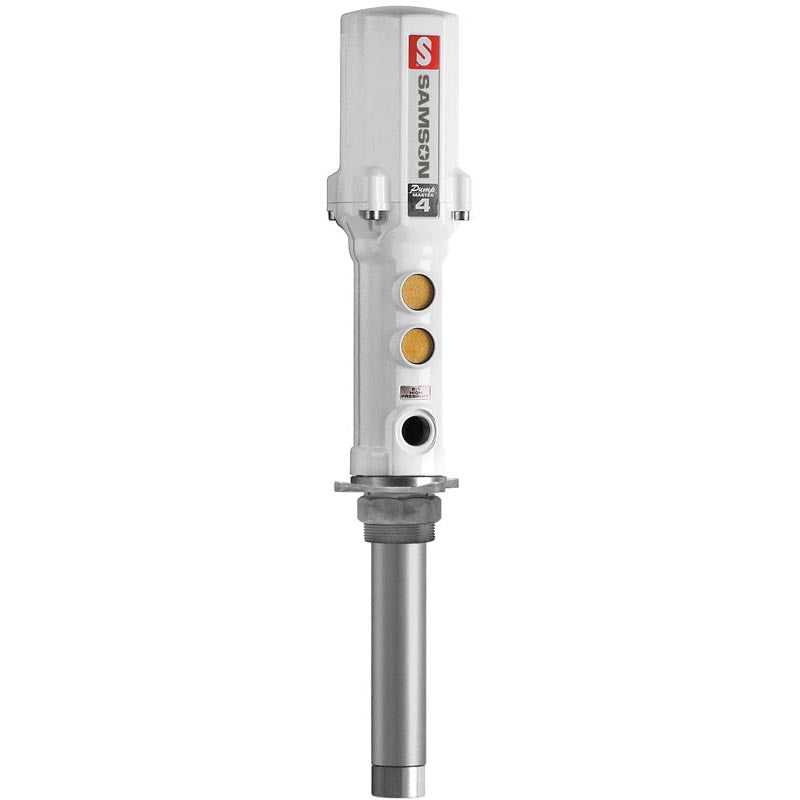

Samson 347 120 | 5:1 PumpMaster 4 Universal Oil Pump with Bung Adapter
by Samson
SKU 347 120
Sale
Original price
$1,025.00
Original price
$1,025.00
-
Original price
$1,025.00
Original price
$1,025.00
Current price
$871.25
$871.25
-
$871.25
Current price
$871.25
The PumpMaster 4 5:1 pump from Samson is a double-acting air-operated medium pressure utility oil pump for dispensing oil and automotive style fluids and lubricants in medium to large size installations, that include multiple outlets with simultaneous operations. Pumps include a height adjustable 2" bung adaptor for drum and tank mounting
Samson 347 120 | 5:1 PumpMaster 4 Specifications:
| Pump Pressure Ratio | 5:1 |
| Air Pressure Operating Range | 20-140 psi (1.5-10 bar) |
| Air Consumption (1) | 14 scfm (400 NL/min) |
| Maximum Fluid Outlet Pressure | 700 psi (50 bar) |
| Air Motor Diameter | 3 1/2" (88 mm) |
| Air Motor Effective Diameter | 2 1/2" (60 mm) |
| Air Motor Stroke | 4" (100 mm) |
| Delivery at 235 cpm | 2.7 gpm (10 l/min) |
| Maximum Free Flow Delivery (2) | 6.6 gpm (25 l/min) |
| Air inlet | 3/8" NPT(F) |
| Fluid inlet (stub pump only) | 1" NPT(F) |
| Fluid outlet (3) | 3/4" NPT(F) |
| Wetted Materials | Aluminum / Steel / Polyurethane / NBR / PTFE |
| Noise Level | Pump noise level meets OSHA requirements at all recommended operating air pressures |
(2) Maximum free delivery at 100 psi (7 bar)
(3) Adaptor 2065 3/4"M x 1/2"F is included with the pump
