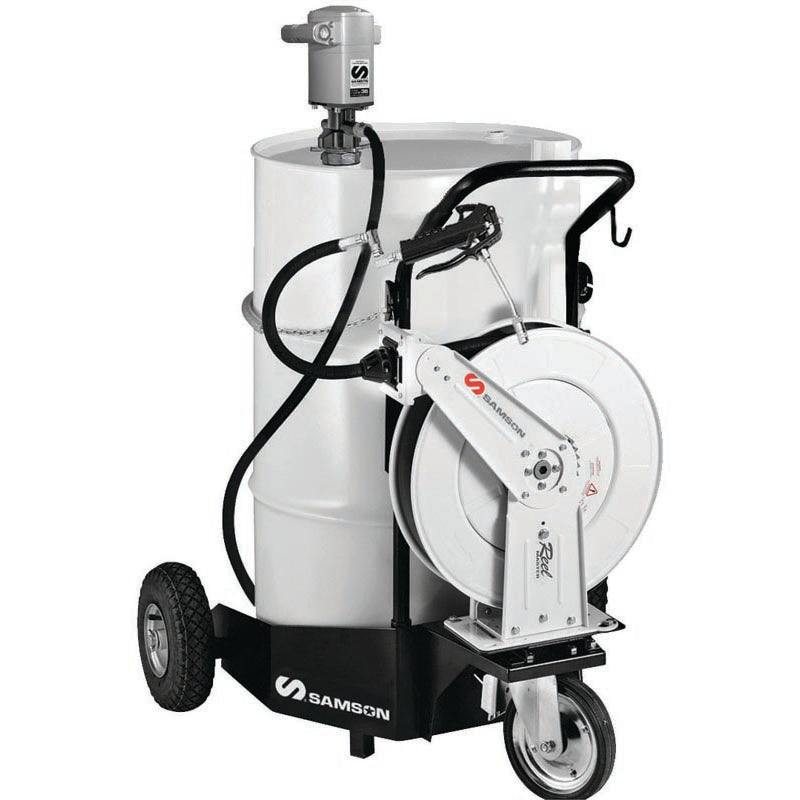

The Samson 311 001 PumpMaster35 Grease 60:1 for 400 Lb. Drum Package with with 15ft Hose, Heavy-Duty Cart and Reel Includes:
-
PumpMaster 35 – 60:1 Utility High Pressure Grease Pump with Bung Adaptor for 400 Lb. Drum
-
400 Lb Drum Cover
-
400 Lb Follower Plate
-
20ft Delivery Hose
-
Grease Handle
- Z-Swivel
- 1/4" Quick Air Coupler
- 1/4" Quick Air Nipple
- 1/4" Mini Filter Regulator with Gauge
- Standard-Duty Platform Truck
PumpMaster 35 60:1 High Pressure Heavy-Duty Grease Pump
The PumpMaster 35 60:1 is a double acting air operated heavy-duty pump that combine high pressure (60:1 ratio) and volume delivery. Recommended pump to deliver high viscosity greases in medium length systems that include multiple dispense points.
Pump has a 400 lb. suction tube length and includes a height adjustable 2" bung adapter.
- 3 1/4" air motor: Mechanically actuated air valve with only three moving parts and no springs. Large effective area for maximum pumping power
- Efficient air exhaust: No ice forming, no stalling pump operation
- Long life packings: Anti-corrosion, hardened plunger and cartridge packings assembly designed for low friction.
- High quality materials: Barrel, piston and foot valve are made of hardened, precision fitted ground steel for perfect seal and longer life
- Ductile iron pump body: For superior properties
- Pump valve inlet: Chop-check priming valve, assists the entry of heavy and sticky grease
PumpMaster 35 60:1 Grease Pump Technical Specifications
- Pump ratio 60:1
- Air pressure operating range 20 to 145 psi (1.5 to 10 bar)
- Air consumption(2) 15.9 scfm (450 Nl/min)
- Maximum fluid outlet pressure 8,700 psi (600 bar)
- Air motor diameter 3.25” (80 mm)
- Air motor stroke 3.15” (80 mm)
- Delivery at 80 cpm (1) 1.1 lb/min (500 kg/min)
- Maximum free flow delivery 4.4 lb/min (2 kg/min)
- Air inlet 3/8” NPT(F)
- Fluid outlet 3/8” NPT(F)
- Wetted materials Cast Iron / Hard chromed steel / Steel / UHMWPE / NBR / PTFE /
Viton® - Noise level Pump noise level meets OSHA requirements at all recommended operating air pressures
