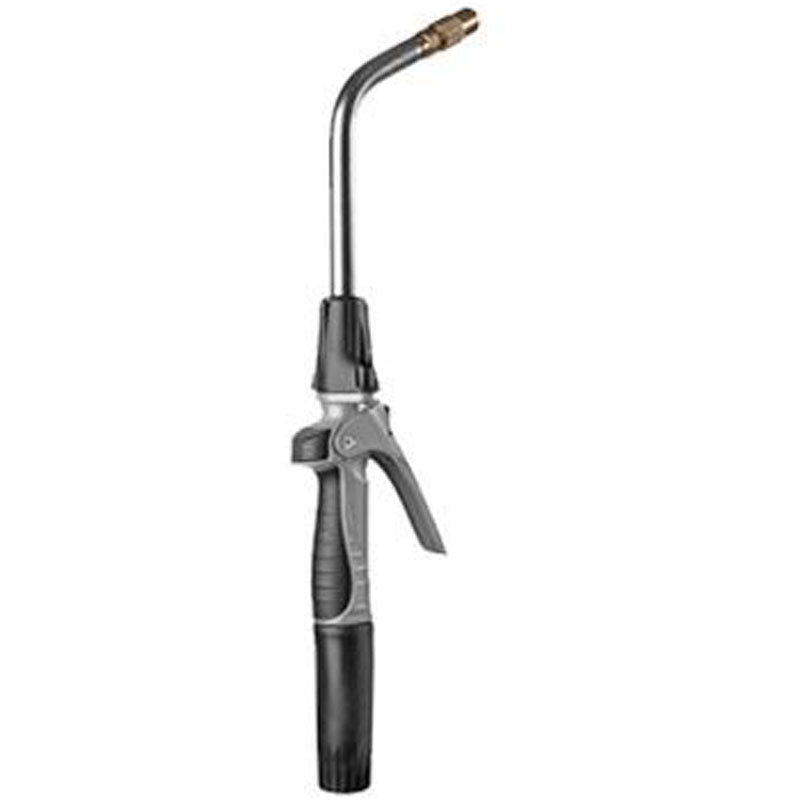

Non-Metered Control Handle Rigid Ext. (11GPM) | Samson 363 116

SAMSON control handles are used at the end of hose assembly to dispense lubricants and antifreeze solutions.

For use with Synthetic and mineral based oil, Gear Oil, Hydraulic oil and fluids, ATF, and Antifreeze Solutions.

CV11 Non-metered Dispense Valve 363 116 - Oil valve with 60º rigid outlet and quarter turn non-drip tip

11 gpm max delivery
SAMSON control valves are used at the end of hose assembly to dispense lubricants and antifreeze solutions.

Safety trigger latch
Prevents accidental dispense

Locking trigger
For hands free operation

Aluminum die-cast body with ergonomic design
Stands the toughest environments and provides better comfort of operation

Large inlet screen filter
Keeping fluid clean with no flow restriction

Large inlet port swivel
Ball bearing design for maximum ease of use

Non-Metered Control Handle Rigid Ext. (11GPM) | Samson 363 116 Features:

• Extensively and rigorously field tested; reliable performance.

• Aluminum body with light weight ergonomic design.

• Cam and piston valve design for minimum flow resistance.

• Large inlet swivel and inlet filter with large screen surface.

• Swivel and outlet covers.

• Safety latch must be depressed before product can be dispensed.

• Trigger can be locked open for dispensing large volumes.

• Wide selection of outlets available.

Non-Metered Control Handle Rigid Ext. (11GPM) | Samson 363 116 Specifications:

• Maximum Free Flow Rate 11 gal/min (40 l/min)

• Maximum Working Pressure 1,450 psi (100 bar)

• Fluid Inlet 1/2" NPT(F)

• Fluid Outlet 1/2" NPT(F)

• Wetted Materials Aluminum / Zinc plated steel / NBR
