Graco

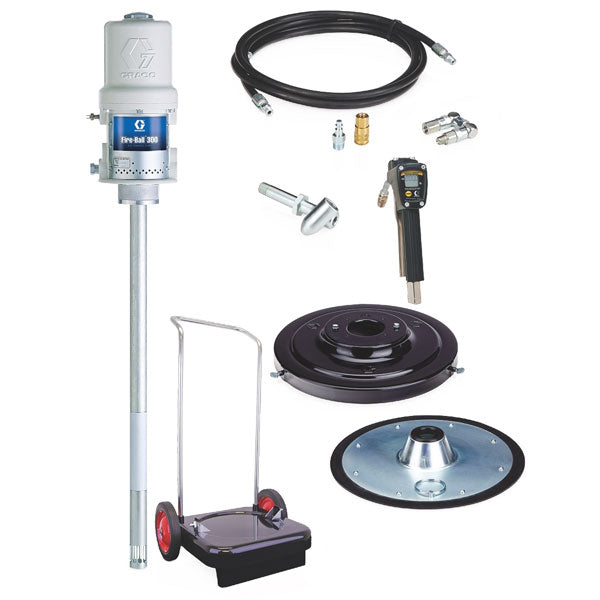

Fire-Ball 300 Series - 120 Lb 50:1 Grease Package (Mobile Cart, Accu-Shot Meter)

$2,630.00
SKU 245696

*Use 3/8 in (9.5 mm) air regulator (109075); must be ordered separately.

A three inch differential air motor ensures smooth pumping and the smooth double-acting pump design provides reliable fluid flow and accurate dispense.

  • Durable: Thick cast aluminum air motor housing offers unmatched durability.
  • Fewer Repairs: Fewer moving parts in the air motor assembly means less downtime and low repair cost.
  • Extended Seal Life: In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
  • Reduce Downtime: Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
  • Superior Sealing: Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair.
  • Reduced Icing: Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
  • Corrosion-Resistant: Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.






Package Number 245696
Type of Package Portable with 2-wheel cart
Ratio 50:1
Container Size 120 lb (55 kg)
Pump Part Number 239887
Dispense Kit 245697
Fluid Hose 1/4 in x 12 ft
Hose Part Number 109151
6 ft Coupled Hose -
Air Coupler 114558
Air Fitting 169971
Z-Swivel 202577
Fitting(s) -
Dispenser Accu-Shot
Dispenser Part Number 233807
Fluid Hose Size See kit above
Air Hose Size -
Meter See kit above
Follower Plate 220654
Drum Cover 204574
Holster 203976
Portable Base 203650
Elevator -
Pump Support -
Hold Down Kit -
Instruction Manual 307878
CE Package -






Technical Specifications
Air Inlet Size (in) 0.375
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT
Application Industrial
Compatible Material Grease
Fluid Inlet Thread Gender Female
Fluid Inlet Thread Type NPT
Fluid Inlet Type Slotted
Fluid Outlet Size (in) 1/4
Fluid Outlet Thread Gender Female
Fluid Outlet Thread Type NPT
Includes Fireball 300 50:1 Pump, Portable Truck, Dispense Kit, Cover, Follow Plate
Maximum Air Working Pressure 140
Maximum Working Pressure (MPa) 35
Maximum Working Pressure (psi) 5000
Motor Type Pneumatic
Power Type Pneumatic
Pump Ratio 50:1
Pump Weight (lb) 22
Series 300
Type Piston Pump Package
Wetted Material CS, Delrin, Buna-N, Polyurethane



*This product typically ships from our warehouse within 2-3 business days.
