*Use 3/8 in (9.5 mm) air regulator (109075); must be ordered separately.
A three inch differential air motor ensures smooth pumping and the smooth double-acting pump design provides reliable fluid flow and accurate dispense.

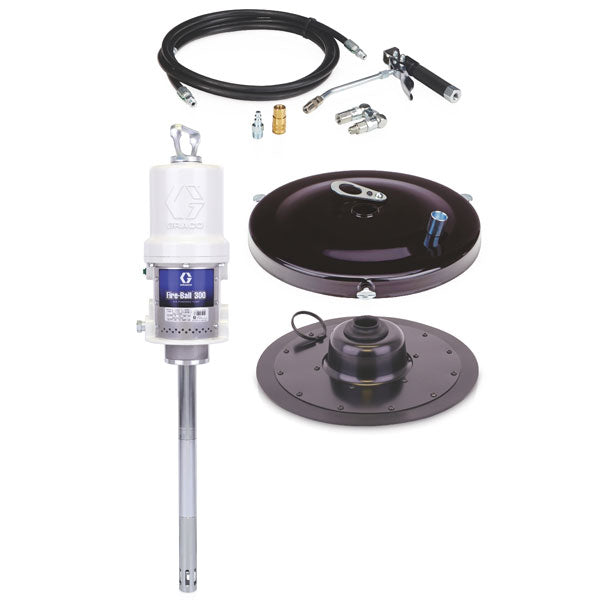

- Install the Fire-Ball 300 50:1 in grease dispense applications.
- Durable: Thick cast aluminum air motor housing offers unmatched durability.
- Fewer Repairs: Fewer moving parts in the air motor assembly means less downtime and low repair cost.
- Extended Seal Life: In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
- Reduce Downtime: Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
- Superior Sealing: Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair.
- Reduced Icing: Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
- Corrosion-Resistant: Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.
| Package Number |
245694 |
| Type of Package |
Portable pail dispenser |
| Ratio |
50:1 |
| Container Size |
25 lb to 50 lb (11 kb to 23 kg) |
| Pump Part Number |
239877 |
| Dispense Kit |
245697 |
| Fluid Hose |
1/4 in x 12 |
| Hose Part Number |
109151 |
| Air Coupler |
114558 |
| Air Fitting |
169971 |
| Z-Swivel |
202577 |
| Dispenser |
Accu-Shot |
| Dispenser Part Number |
233807 |
| Follower Plate |
220653 |
| Drum Cover |
222059 |
| Holster |
- |
| Container |
- |
| Portable Base |
- |
| Elevator |
- |
| Inductor Plate |
- |
| Instruction Manual |
307878 |
| CE Package |
- |
TECHNICAL SPECIFICATIONS
| Air Inlet Size (in) |
0.375 |
| Air Inlet Thread Gender |
Female |
| Air Inlet Thread Type |
NPT |
| Application |
Industrial |
| Compatible Material |
Grease |
| Fluid Inlet Thread Gender |
Female |
| Fluid Inlet Thread Type |
NPT |
| Fluid Inlet Type |
Slotted |
| Fluid Outlet Size (in) |
1/4 |
| Fluid Outlet Thread Gender |
Female |
| Fluid Outlet Thread Type |
NPT |
| Includes |
Fireball 300 50:1 Pump, Dispense Kit, Cover, Follow Plate |
| Maximum Air Working Pressure |
140 |
| Maximum Working Pressure (MPa) |
35 |
| Maximum Working Pressure (psi) |
5000 |
| Motor Type |
Pneumatic |
| Power Type |
Pneumatic |
| Pump Ratio |
50:1 |
| Pump Weight (lb) |
22 |
| Series |
300 |
| Type |
Piston Pump Package |
| Wetted Material |
CS, Delrin, Buna-N, Polyurethane |
