Graco

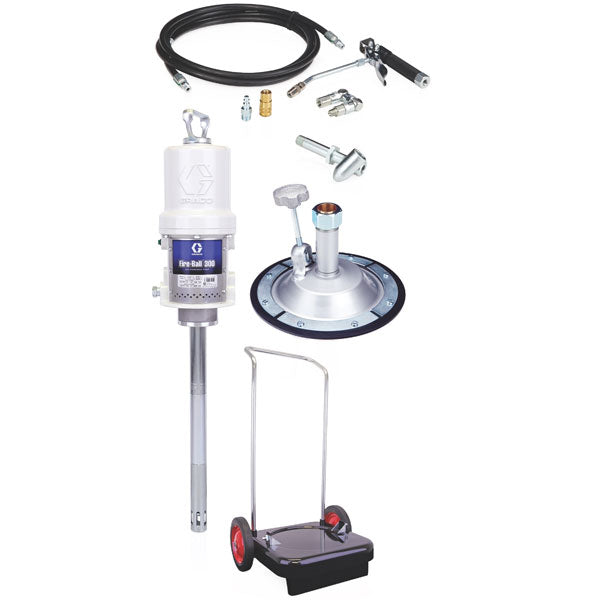

Fire-Ball 300 Series - 50 Lb 50:1 Grease Package (Pro-Shot Cart-Mounted Pail Topper)

$2,965.00

SKU 226012

*Use 3/8 in (9.5 mm) air regulator (109075); must be ordered separately.

A three inch differential air motor ensures smooth pumping and the smooth double-acting pump design provides reliable fluid flow and accurate dispense.
  • Install the Fire-Ball 300 50:1 in grease dispense applications.
  • Durable: Thick cast aluminum air motor housing offers unmatched durability.
  • Fewer RepairsFewer moving parts in the air motor assembly means less downtime and low repair cost.
  • Extended Seal LifeIn-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
  • Reduce DowntimeDisplacement rods have minimal wear due to a proprietary Graco manufacturing process.
  • Superior SealingNon-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair.
  • Reduced IcingLarge air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
  • Corrosion-ResistantCorrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.






Package Number 226012
Type of Package Cart-mounted pail dispenser
Ratio 50:1
Container Size 50 LB (23 kg)
Pump Part Number 239877
Dispense Kit 222070
Fluid Hose 1/4 in x 12 ft
Hose Part Number 109151
Air Coupler 114558
Air Fitting 169971
Z-Swivel 202577
Dispenser Pro-Shot
Dispenser Part Number 242056
Follower Plate -
Drum Cover -
Holster 203976
Container -
Portable Base 203650
Elevator 203664
Inductor Plate 204351
Instruction Manual 307878
CE Package 240886






TECHNICAL SPECIFICATIONS

Air Inlet Size (in) 0.375
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT
Application Industrial
Compatible Material Grease
Fluid Inlet Thread Gender Female
Fluid Inlet Thread Type NPT
Fluid Inlet Type Slotted
Fluid Outlet Size (in) 1/4
Fluid Outlet Thread Gender Female
Fluid Outlet Thread Type NPT
Includes Fireball 300 50:1 Pump, Portable Truck, Dispense Kit
Maximum Working Pressure (MPa) 35
Maximum Working Pressure (psi) 5000
Motor Type Pneumatic
Power Type Pneumatic
Pump Ratio 50:1
Series 300
Type Piston Pump Package
Wetted Material CS, Delrin, Buna-N, Polyurethane



*This product typically ships from our warehouse within 2-3 business days.
