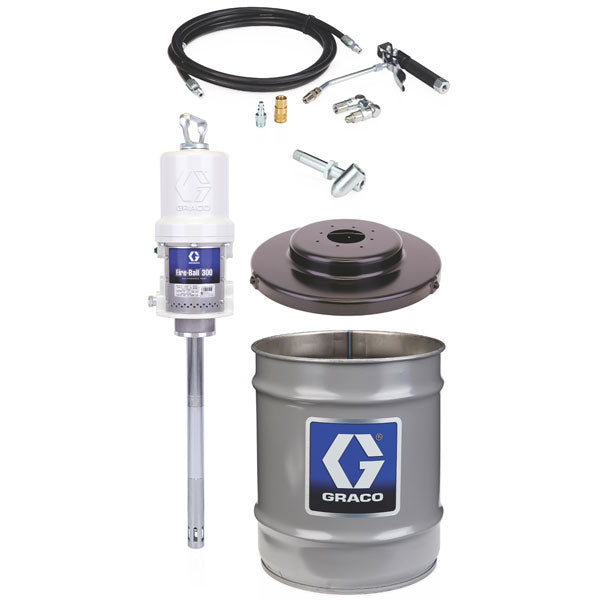

Graco 225827 | Fire-Ball 300 Series - 35 / 50 Lb 50:1 Grease Package (Pro-Shot Stationary Pail Dispenser)
*Use 3/8 in (9.5 mm) air regulator (109075); must be ordered separately.A three inch differential air motor ensures smooth pumping and the smooth double-acting pump design provides reliable fluid flow and accurate dispense.
- Install the Fire-Ball 300 50:1 in grease dispense applications.
- Durable: Thick cast aluminum air motor housing offers unmatched durability.
- Fewer Repairs: Fewer moving parts in the air motor assembly means less downtime and low repair cost.
- Extended Seal Life: In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
- Reduce Downtime: Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
- Superior Sealing: Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair.
- Reduced Icing: Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
- Corrosion-Resistant: Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.
|Type of Package||Stationary pail dispenser|
|Container Size||35 lb to 50 lb (16 kg to 23 kg)|
|Pump Part Number||239877|
|Fluid Hose||1/4 in x 12 ft|
|Hose Part Number||109151|
|Dispenser Part Number||242056|
|Air Inlet Size (in)||0.375|
|Air Inlet Thread Gender||Female|
|Air Inlet Thread Type||NPT|
|Fluid Inlet Thread Gender||Female|
|Fluid Inlet Thread Type||NPT|
|Fluid Inlet Type||Slotted|
|Fluid Outlet Size (in)||1/4|
|Fluid Outlet Thread Gender||Female|
|Fluid Outlet Thread Type||NPT|
|Includes||Fireball 300 50:1 Pump, Dispense Kit, Cover, Pail|
|Maximum Air Working Pressure||140|
|Maximum Working Pressure (MPa)||35|
|Maximum Working Pressure (psi)||5000|
|Pump Weight (lb)||22|
|Type||Piston Pump Package|
|Wetted Material||CS, Delrin, Buna-N, Polyurethane|
*This product typically ships from our warehouse within 2-3 business days.
