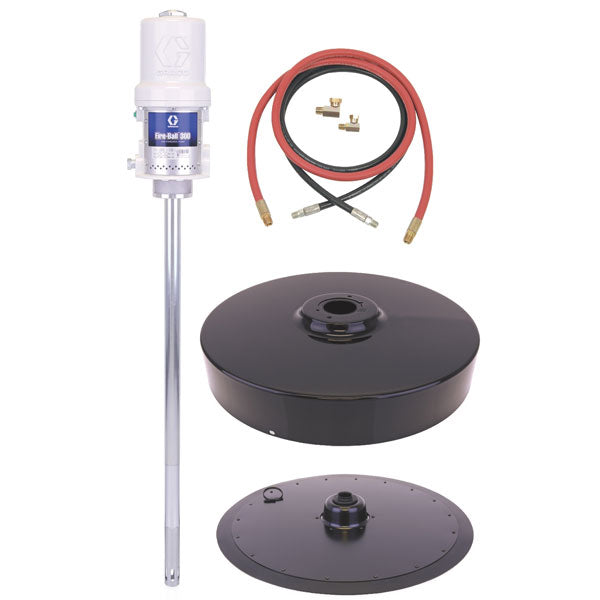

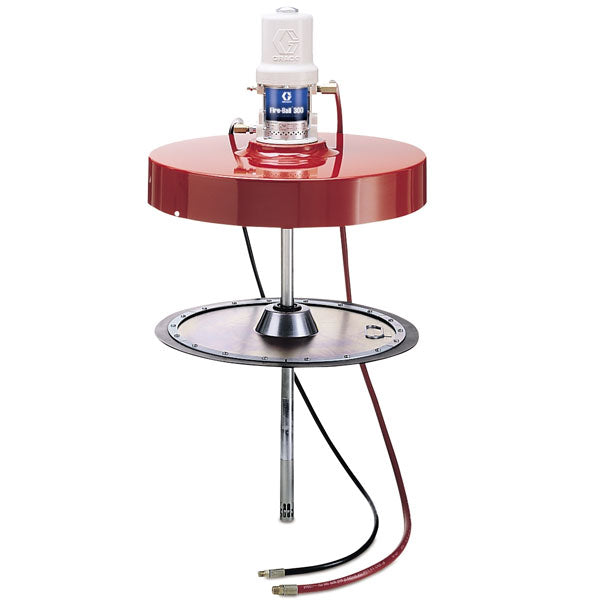

Graco 225016 | Fire-Ball 300 Series - 400 Lb 50:1 Grease Package (Stationary Supply)

by Graco
SKU 225016
Original price $2,070.00 - Original price $2,070.00
Original price
$2,070.00 - $2,070.00
Current price $2,070.00
A three inch differential air motor ensures smooth pumping and the smooth double-acting pump design provides reliable fluid flow and accurate dispense.
  • Install the Fire-Ball 300 50:1 in grease dispense applications.
  • Durable: Thick cast aluminum air motor housing offers unmatched durability.
  • Fewer Repairs: Fewer moving parts in the air motor assembly means less downtime and low repair cost.
  • Extended Seal Life: In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
  • Reduce Downtime: Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
  • Superior Sealing: Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair.
  • Reduced Icing: Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
  • Corrosion-Resistant: Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.


*Use 3/8 in (9.5 mm) air regulator (109075); must be ordered separately.



Package Number 225016
Type of Package Stationary Supply
Ratio 50:1
Container Size 400 lb (180 kg)
Pump Part Number 239888
Dispense Kit 222072
Fluid Hose
Hose Part Number 109150
6 ft Coupled Hose 203320
Fitting(s) 155494/155541
Air Hose Size 3/8 in X 6 ft
Follower Plate 24F903
Drum Cover 200326
Elevator -
Pump Support -
Inductor Plate -
Base -
Instruction Manual 307880
CE Package 241035



Technical Specifications
Air Inlet Size (in) 3/4
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT
Application Industrial
Compatible Material Grease
Fluid Inlet Thread Gender Female
Fluid Inlet Thread Type NPT
Fluid Inlet Type Slotted
Fluid Outlet Size (in) 1/4
Fluid Outlet Thread Gender Female
Fluid Outlet Thread Type NPT
Includes Fireball 50:1 300 Pump, Hose and Fitting Kit, Cover, Follow Plate
Maximum Air Working Pressure (psi) 140
Maximum Working Pressure (MPa) 35
Maximum Working Pressure (psi) 5000
Motor Type Pneumatic
Mount Location Drum Mount
Power Type Pneumatic
Pump Ratio 50:1
Pump Weight (lb) 22
Series 300
Type Piston Pump Package
Wetted Material CS, Delrin, Buna-N, Polyurethane
