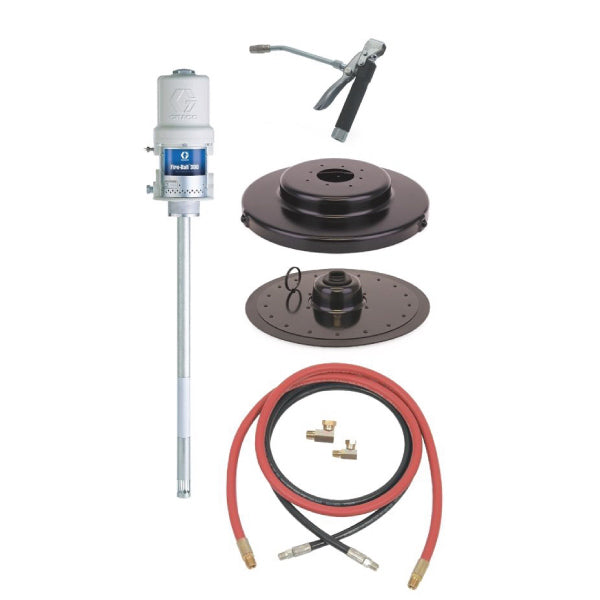

Graco 225014 | Fire-Ball 300 Series - 120 Lb 50:1 Grease Package (Stationary Supply)
by Graco
SKU 225014
Sale
Original price
$1,715.00
Original price
$1,715.00
-
Original price
$1,715.00
Original price
$1,715.00
Current price
$1,542.99
$1,542.99
-
$1,542.99
Current price
$1,542.99
*Use 3/8 in (9.5 mm) air regulator (109075); must be ordered separately.
- A three inch differential air motor ensures smooth pumping and the smooth double-acting pump design provides reliable fluid flow and accurate dispense.
- Install the Fire-Ball 300 50:1 in grease dispense applications.
- Durable: Thick cast aluminum air motor housing offers unmatched durability.
- Fewer Repairs: Fewer moving parts in the air motor assembly means less downtime and low repair cost.
- Extended Seal Life: In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
- Reduce Downtime: Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
- Superior Sealing: Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair.
- Reduced Icing: Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
- Corrosion-Resistant:Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.
| Package Number | 225014 |
| Type of Package | Stationary Supply |
| Ratio | 50:1 |
| Container Size | 120 lb (55 kg) |
| Pump Part Number | 239887 |
| Dispense Kit | 222072 |
| Fluid Hose | 1/4 in x 6 ft |
| Hose Part Number | 109150 |
| 6 ft Coupled Hose | 203320 |
| Air Coupler | - |
| Air Fitting | - |
| Z-Swivel | - |
| Fitting(s) | 1554494/155541 |
| Dispenser | - |
| Dispenser Part Number | - |
| Fluid Hose Size | See kit above |
| Air Hose Size | See kit above |
| Follower Plate | 24F902 |
| Drum Cover | 24R350 |
| Holster | - |
| Portable Base | - |
| Elevator | - |
| Pump Support | - |
| Hold Down Kit | - |
| Instruction Manual | 307880 |
| CE Package | 241034 |
TECHNICAL SPECIFICATIONS
| Air Inlet Size (in) | 3/8 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Industrial |
| Compatible Material | Grease |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | NPT |
| Fluid Inlet Type | Slotted |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Includes | Fireball 50:1 300 Pump, Hose and Fitting Kit, Cover, Follow Plate |
| Maximum Air Working Pressure (psi) | 140 |
| Maximum Working Pressure (MPa) | 35 |
| Maximum Working Pressure (psi) | 5000 |
| Motor Type | Pneumatic |
| Mount Location | Drum Mount |
| Power Type | Pneumatic |
| Pump Ratio | 50:1 |
| Pump Weight (lb) | 22 |
| Series | 300 |
| Type | Piston Pump Package |
| Wetted Material | CS, Delrin, Buna-N, Polyurethane |
