Graco

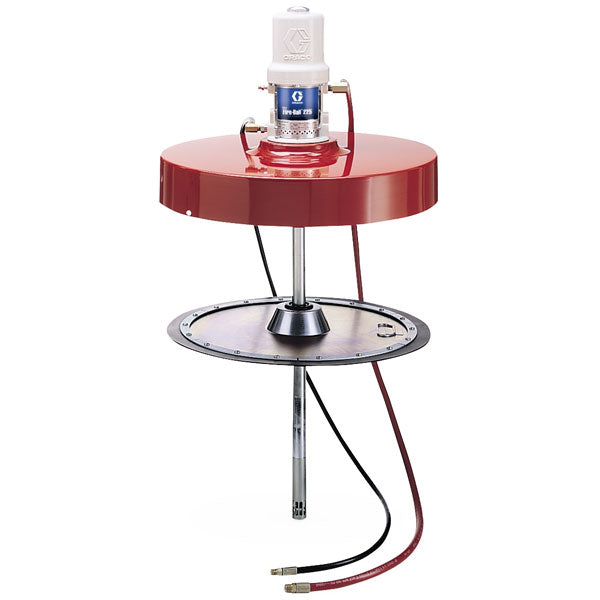

Mini Fire-Ball 225 Series - 400 Lb Grease Package (Stationary Supply)

$1,230.00

SKU 246917

*Use 3/8 in (9.5 mm) air regulator (109075); must be ordered separately.

You can't afford down time, especially when your shop is small and your work force depends on equipment performance. The Mini Fire-Ball 225 is an engineered design with fewer moving parts, which means less wear out, and reduced downtime and more profit for your business.
  • The Mini Fire-Ball 225 50:1 is perfect for medium pressure, low volume grease applications.
  • Durable: Thick cast aluminum air motor housing offers unmatched durability.
  • Fewer RepairsFewer moving parts in the air motor assembly means less downtime and low repair cost.
  • Extended Seal LifeIn-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
  • Reduce DowntimeDisplacement rods have minimal wear due to a proprietary Graco manufacturing process.
  • Superior SealingNon-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair.
  • Reduced IcingLarge air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
  • Corrosion-ResistantCorrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.






Package Number 246917
Ratio 50:1
Type of Package Stationary supply package
Container Size 400 lb (180 kg)
Pump Part Number 246781
Fluid Hose Size 1/4 in x 6 ft
Dispense Hose Kit 222072
12 ft Hose -
6 ft Hose 109150
6 ft Coupled Hose 203320
Air Coupler -
Air Fitting -
Z-Swivel -
90° Fitting(s) 155494/155541
Pro-Shot Valve -
Follower Plate 24F903
Drum Cover 200326
Portable Base -
Instruction Manual 309967
CE Package 253390






TECHNICAL SPECIFICATIONS

Air Inlet Size (in) 0.375
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT
Application Industrial
Compatible Material Grease
Fluid Inlet Type Slotted
Fluid Outlet Size (in) 1/4
Fluid Outlet Thread Gender Female
Fluid Outlet Thread Type NPT
Includes Mini Fireball 50:1 225 Pump, Hose and Fitting Kit, Cover, Follow Plate, Shim
Maximum Air Working Pressure 140
Maximum Working Pressure (MPa) 35
Maximum Working Pressure (psi) 5000
Motor Type Pneumatic
Mount Location Drum Mount
Power Type Pneumatic
Pump Ratio 50:1
Pump Weight (lb) 15
Series 225
Type Piston Pump Package
Wetted Material Steel, Urethane, Aluminum, Buna-N, Brass, Ethylene, Delrin



*This product typically ships from our warehouse within 2-3 business days.
