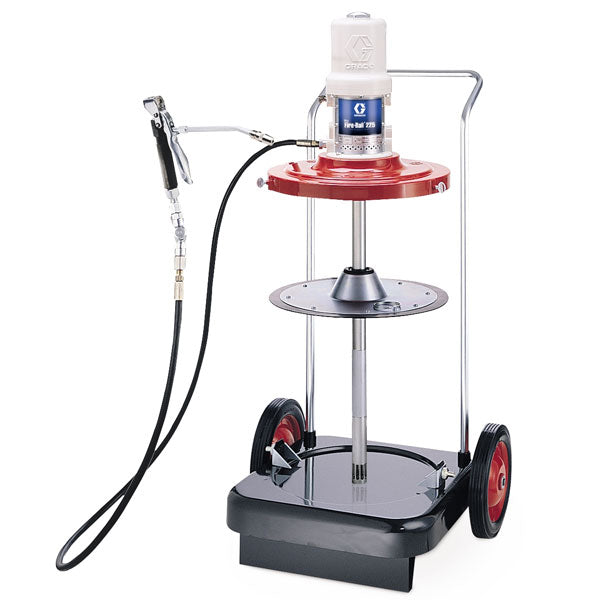

Graco 246916 | Mini Fire-Ball 225 Series - 120 Lb Grease Package (Portable Cart)
*Use 3/8 in (9.5 mm) air regulator (109075); must be ordered separately.You can't afford down time, especially when your shop is small and your work force depends on equipment performance. The Mini Fire-Ball 225 is an engineered design with fewer moving parts, which means less wear out, and reduced downtime and more profit for your business.
- The Mini Fire-Ball 225 50:1 is perfect for medium pressure, low volume grease applications.
- Durable: Thick cast aluminum air motor housing offers unmatched durability.
- Fewer Repairs: Fewer moving parts in the air motor assembly means less downtime and low repair cost.
- Extended Seal Life: In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
- Reduce Downtime: Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
- Superior Sealing: Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair.
- Reduced Icing: Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
- Corrosion-Resistant: Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.
|Type of Package||Portable package with 2-wheel cart|
|Container Size||120 lb (55 kg)|
|Pump Part Number||246780|
|Fluid Hose Size||1/4 in x 12 ft|
|Dispense Hose Kit||236058|
|12 ft Hose||109151|
|6 ft Hose||-|
|6 ft Coupled Hose||-|
|Air Inlet Size (in)||0.375|
|Air Inlet Thread Gender||Female|
|Air Inlet Thread Type||NPT|
|Fluid Inlet Type||Slotted|
|Fluid Outlet Size (in)||1/4|
|Fluid Outlet Thread Gender||Female|
|Fluid Outlet Thread Type||NPT|
|Includes||Mini Fireball 50:1 225 Pump, Dispense Kit, Cover, Follow Plate, Holster, 2-Wheel Truck, Shim|
|Maximum Air Working Pressure||140|
|Maximum Working Pressure (MPa)||35|
|Maximum Working Pressure (psi)||5000|
|Mount Location||Drum Mount|
|Pump Weight (lb)||15|
|Type||Piston Pump Package|
|Wetted Material||Steel, Urethane, Aluminum, Buna-N, Brass, Ethylene, Delrin|
