*Use 3/8 in (9.5 mm) air regulator (109075); must be ordered separately.
**Order follower plate (220653) separately for 35 lb (16 kg) pails or (220654) for 70 lb (32 kg) bulk.

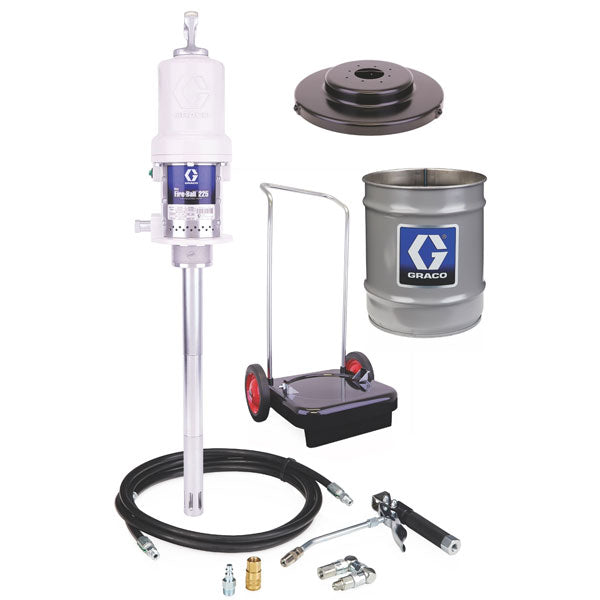

You can't afford down time, especially when your shop is small and your work force depends on equipment performance. The Mini Fire-Ball 225 is an engineered design with fewer moving parts, which means less wear out, and reduced downtime and more profit for your business.
- The Mini Fire-Ball 225 50:1 is perfect for medium pressure, low volume grease applications.
- Durable: Thick cast aluminum air motor housing offers unmatched durability.
- Fewer Repairs: Fewer moving parts in the air motor assembly means less downtime and low repair cost.
- Extended Seal Life: In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
- Reduce Downtime: Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
- Superior Sealing: Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair.
- Reduced Icing: Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
- Corrosion-Resistant: Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.
| Package Number |
246913 |
| Ratio |
50:1 |
| Type of Package |
Cart-mounted pail dispenser |
| Container Size |
35 lb to 50 lb (16 kg to 23 kg) |
| Container |
204134 |
| Pump Part Number |
246909 |
| Fluid Hose Size |
1/4 in x 12 ft |
| Dispense Hose Kit |
236058 |
| 12 ft Hose |
109151 |
| Air Coupler |
114558 |
| Air Fitting |
169971 |
| Z-Swivel |
202577 |
| Pro-Shot Valve |
242056 |
| Follower Plate |
** |
| Drum Cover |
24R350 |
| Portable Base |
203650 |
| Instruction Manual |
309967 |
| CE Package |
255386 |
TECHNICAL SPECIFICATION
| Air Inlet Size (in) |
0.375 |
| Air Inlet Thread Gender |
Female |
| Air Inlet Thread Type |
NPT |
| Application |
Industrial |
| Compatible Material |
Grease |
| Fluid Inlet Type |
Slotted |
| Fluid Outlet Size (in) |
1/4 |
| Fluid Outlet Thread Gender |
Female |
| Fluid Outlet Thread Type |
NPT |
| Includes |
Pump, Dispense Kit, Cover, Holste, 2-Wheel Truck, CE Kit, Pail |
| Maximum Air Working Pressure |
140 |
| Maximum Working Pressure (MPa) |
35 |
| Maximum Working Pressure (psi) |
5000 |
| Motor Type |
Pneumatic |
| Mount Location |
Cart Mount |
| Power Type |
Pneumatic |
| Pump Ratio |
50:1 |
| Pump Weight (lb) |
15 |
| Series |
225 |
| Type |
Piston Pump Package |
| Wetted Material |
Steel, Urethane, Aluminum, Buna-N, Brass, Ethylene, Delrin |
*This product typically ships from our warehouse within 2-3 business days.
