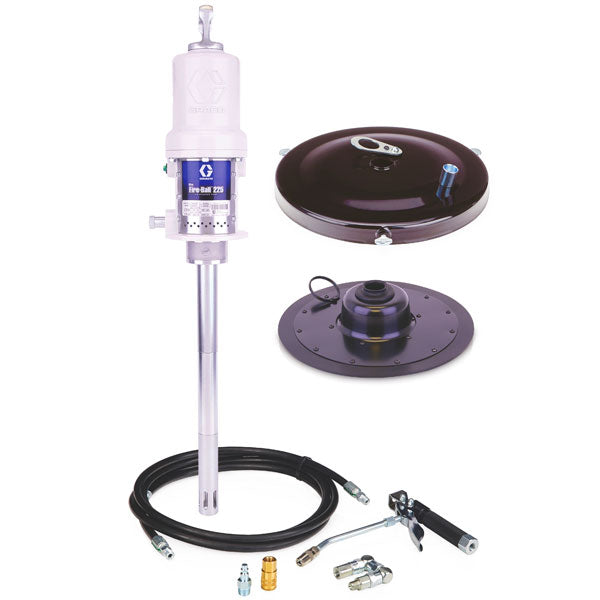

Graco 246910 | Mini Fire-Ball 225 Series - 35 Lb / 50 Lb Grease Package (Portable Pail Dispenser)

by Graco
SKU 246910
Original price $1,930.00 - Original price $1,930.00
Original price
$1,930.00 - $1,930.00
Current price $1,930.00

*Use 3/8 in (9.5 mm) air regulator (109075); must be ordered separately.

**Order follower plate (220653) separately for 35 lb (16 kg) pails or (220654) for 70 lb (32 kg) bulk.

You can't afford down time, especially when your shop is small and your work force depends on equipment performance. The Mini Fire-Ball 225 is an engineered design with fewer moving parts, which means less wear out, and reduced downtime and more profit for your business.
  • The Mini Fire-Ball 225 50:1 is perfect for medium pressure, low volume grease applications.
  • Durable: Thick cast aluminum air motor housing offers unmatched durability.
  • Fewer RepairsFewer moving parts in the air motor assembly means less downtime and low repair cost.
  • Extended Seal LifeIn-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
  • Reduce DowntimeDisplacement rods have minimal wear due to a proprietary Graco manufacturing process.
  • Superior SealingNon-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair.
  • Reduced IcingLarge air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
  • Corrosion-ResistantCorrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.



Package Number 246910
Ratio 50:1
Type of Package Portable pail dispenser
Container Size 35 lb to 50 lb (16 kg to 23 kg)
Container -
Pump Part Number 246909
Fluid Hose Size 1/4 in x 12 ft
Dispense Hose Kit 236058
12 ft Hose 109151
Air Coupler 114558
Air Fitting 169971
Z-Swivel 202577
Pro-Shot Valve 242056
Follower Plate 24F901
Drum Cover 222059
Portable Base -
Instruction Manual 309967
CE Package 253384




Air Inlet Size (in) 0.375
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT
Application Industrial
Compatible Material Grease
Fluid Inlet Type Slotted
Fluid Outlet Size (in) 1/4
Fluid Outlet Thread Gender Female
Fluid Outlet Thread Type NPT
Includes Dispense Kit, Cover, Follow Plate, Handle
Maximum Air Working Pressure 140
Maximum Working Pressure (MPa) 35
Maximum Working Pressure (psi) 5000
Motor Type Pneumatic
Power Type Pneumatic
Pump Ratio 50:1
Pump Weight (lb) 15
Series 225
Type Piston Pump Package
Wetted Material Steel, Urethane, Aluminum, Buna-N, Brass, Ethylene, Delrin
