Graco

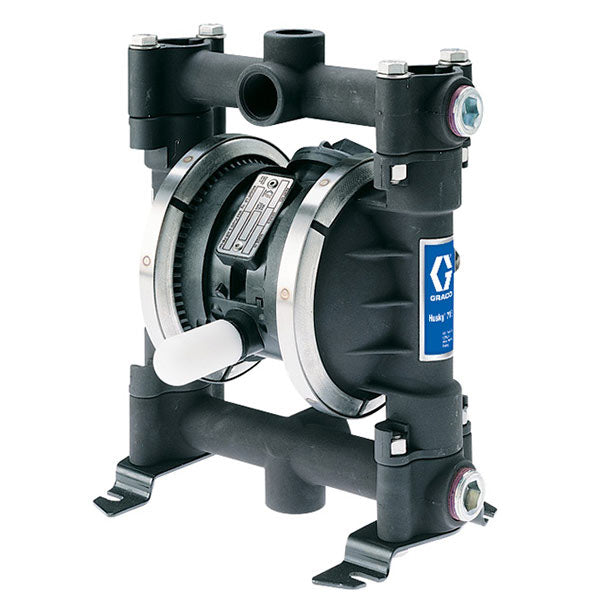

Husky 716 Double Diaphragm Pump

$669.00

SKU 241906

Husky® 716 Series Air-Operated Double Diaphragm Transfer Pump for Oil Evac/Transfer, Water, Anti-Freeze, Windshield Wash Fluid

The Husky 716 air operated diaphragm pump features an external controller for remote control capabilities.



Part Number Pump Description Fluids Max PSI
241906

Husky 716

Aluminum –3/4 in

Aluminum/Buna-N

  • Oil Evacuation
  • Oil Transfer
  • Water
  • Anti-Freeze
  • Windshield wash fluid

100 psi

(6.9 bar)






FEATURES

The Husky 716 air operated diaphragm pump features an external controller for remote control capabilities.

  • Center- and end-porting
  • No mechanical seals which causes fluid leaks or failures
  • Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
  • Easy-to-service air valve and ball checks
  • 3/4 in (19.05 mm) center- and end-porting
  • No seals to leak or fail
  • Quiet running less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
  • Easy-to-service air valve and ball checks






TECHNICAL SPECIFICATIONS

Air Exhaust Port Size (in) 3/8
Air Exhaust Port Thread Gender Female
Air Exhaust Port Thread Type NPT
Air Inlet Size (in) 1/4
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT
Application Industrial
Ball Material Buna-N
Compatible Material Oil, Water, Antifreeze, Windshield Washer Fluid
Connection Type Threaded
Diaphragm Material Buna-N
Fluid Inlet Size (in) 3/4
Fluid Inlet Thread Gender Female
Fluid Inlet Thread Type NPT
Fluid Outlet Size (in) 3/4
Fluid Outlet Thread Gender Female
Fluid Outlet Thread Type NPT
Fluid Section Material Aluminum
For Use With Oil, Water, Anti-freeze, Washer Fluid, Used Oil
Manifold O-Ring Material PTFE
Material Aluminum
Maximum Air Consumption (SCFM) 28
Maximum Air Pressure (MPa) 0.69
Maximum Air Pressure (psi) 100
Maximum Cycle Rate (CPM) 400
Maximum Flow Rate (GPM) 16
Maximum Fluid Pressure (MPa) 0.69
Maximum Fluid Pressure (psi) 100
Maximum Operating Temperature (°F) 180
Maximum Solid Size (in) 0.09375
Overall Height (in) 10.43
Power Source Air
Standards Met CE
Type Pneumatic Diaphragm Pump
Weight (lb) 8.5
Wetted Material Aluminum, Buna-N, PTFE



*This product typically ships from our warehouse within 2-3 business days.
