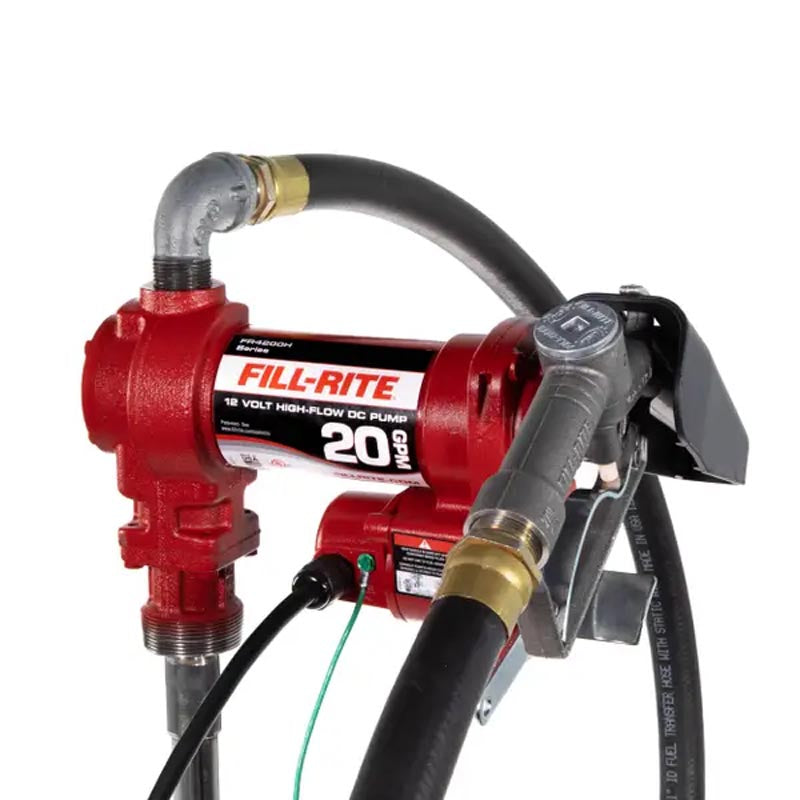

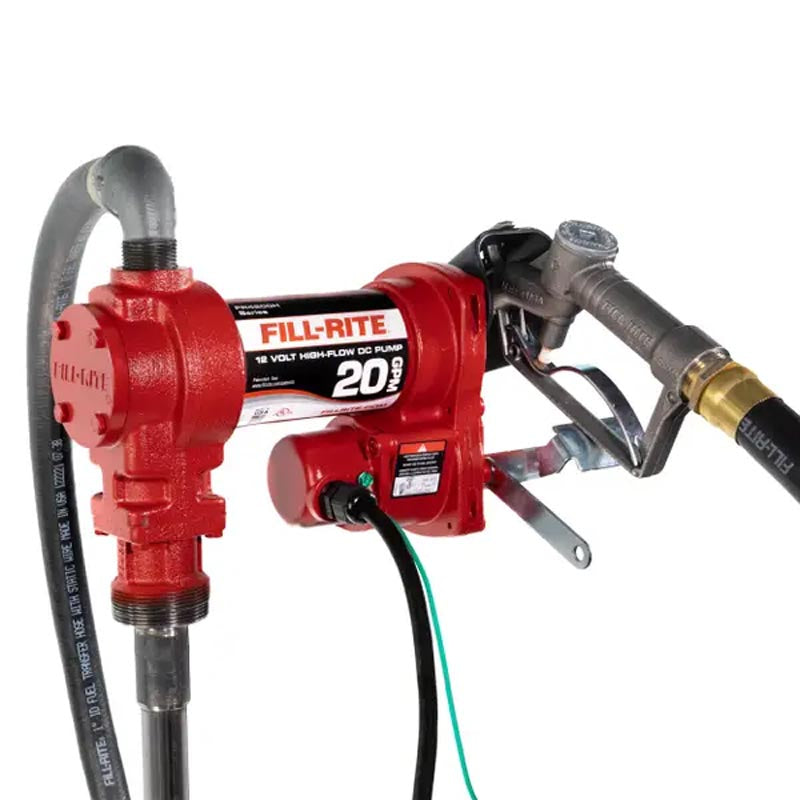

Fill-Rite FR4210H 12V DC 20 GPM Fuel Transfer Pump with Hose & Nozzle

The Fill-Rite FR4210H is a heavy-duty 12V DC fuel transfer pump delivering up to 20 GPM. Designed for mobile transfer tanks and truck-bed applications, this complete bundle includes a hose, manual nozzle, telescoping suction pipe and installation components.

Features

• 20 GPM flow rate for efficiently fueling equipment with 20-80 gallon tanks

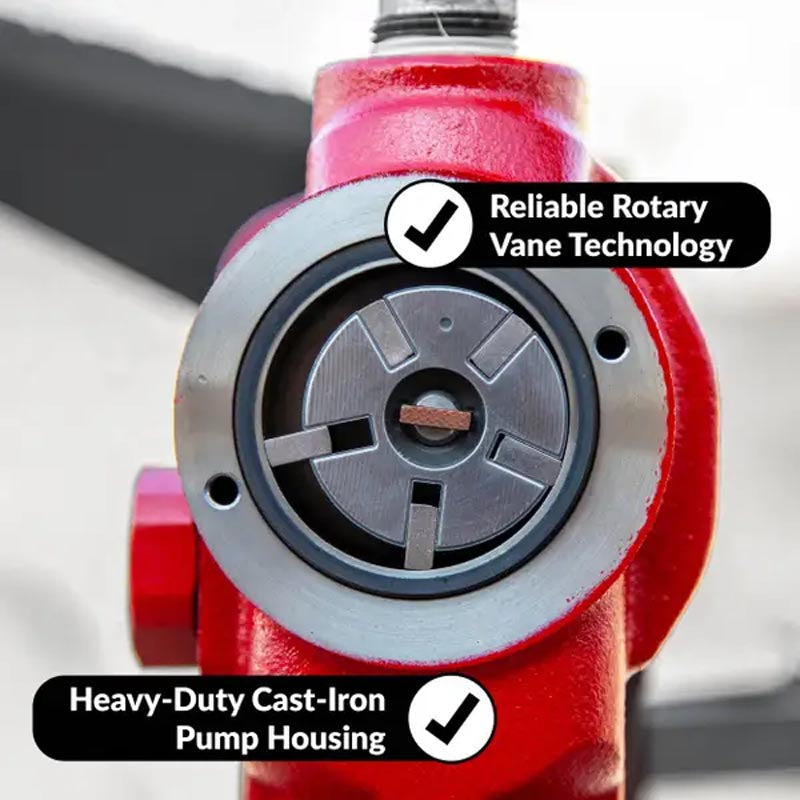

• Heavy-duty cast-iron construction for demanding field and job-site applications

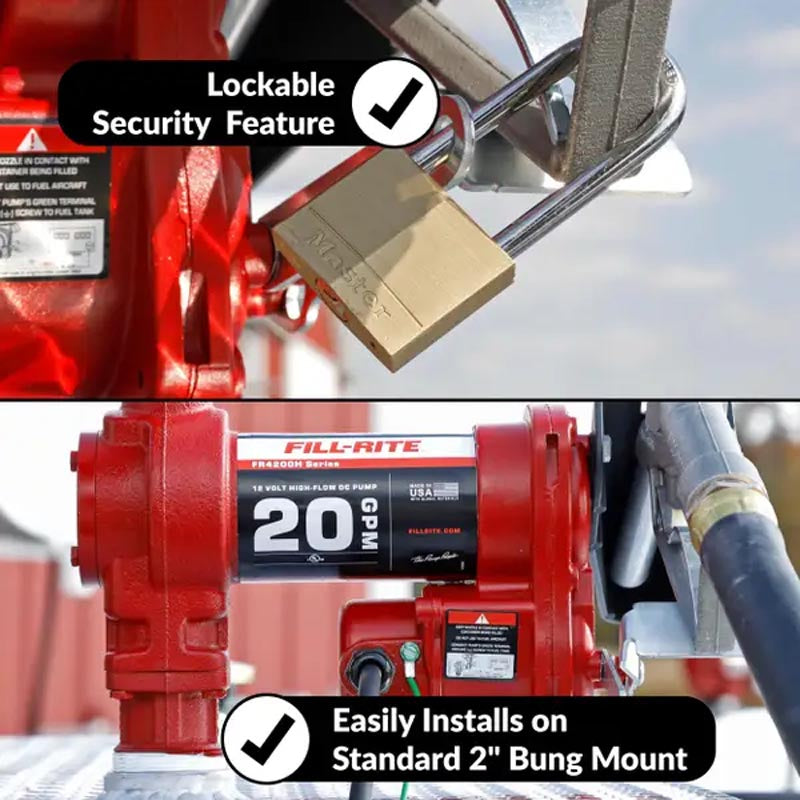

• 12V DC motor with 2" NPT bung mount for mobile transfer tanks
• Compatible with diesel, kerosene, gasoline up to E15, biodiesel up to B20 and mineral spirits
• Rotating electrical junction box simplifies wiring and installation in tight spaces
• Thermally protected motor helps protect against overheating
• Built-in 20-micron strainer helps filter fuel particulates
• Metal on/off switch stopping arm provides dependable repeated operation
• Limited lifetime warranty

Specifications

• Maximum Flow Rate: 20 GPM / 75 LPM
• Power: 12V DC
• Motor Power: 0.25 HP
• Maximum Current: 19 A
• Inlet: 1" Female NPT
• Outlet: 1" Female NPT
• Mounting: 2" NPT Bung Mount
• Duty Cycle: 30 Min. On / 30 Min. Off
• Maximum Operating Pressure: 16 PSI
• Discharge Head: 37 ft.
• Suction Lift: 8 ft.
• Dry Vacuum: 5 in. Hg
• Strainer Mesh: 20 x 20 Micron
• Viscosity Range: 0.5 to 5.5 cSt
• Operating Temperature: -15 to 150°F
• Self-Priming: Yes
• Thermal Protection: Yes

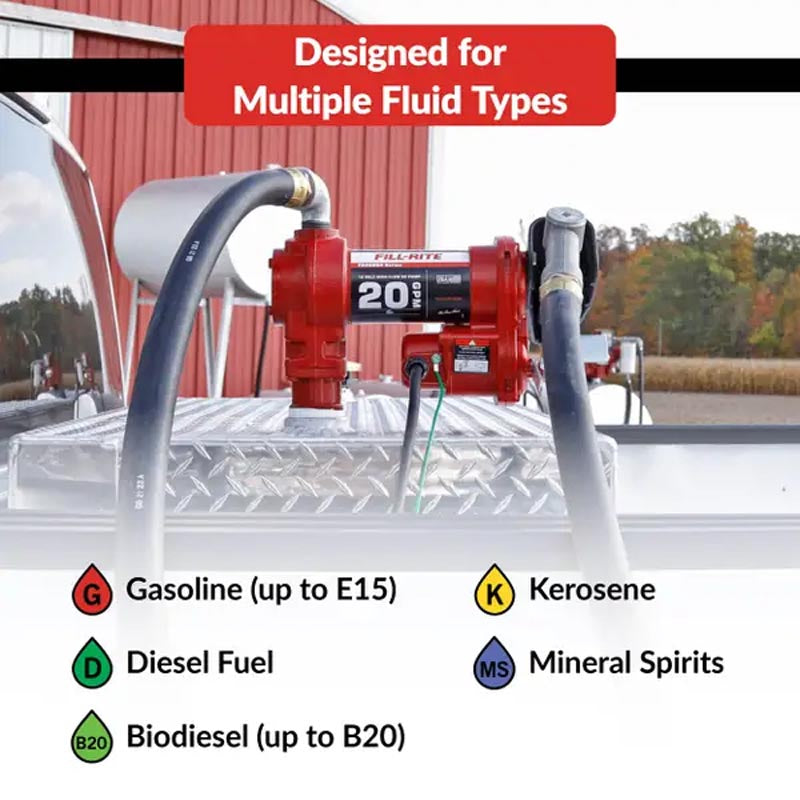

Compatible Fluids

• Diesel
• Kerosene
• Gasoline up to E15
• Biodiesel up to B20
• Mineral Spirits

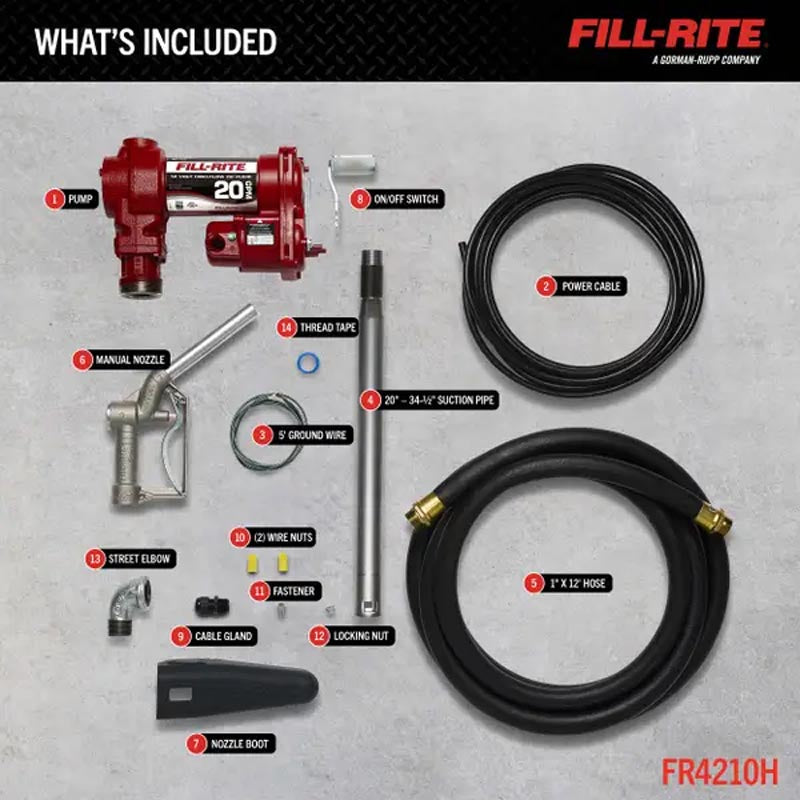

Included

• 18 ft. 12-gauge power cable with bare leads
• 20" to 34-1/2" steel telescoping suction pipe
• 1" x 12 ft. discharge hose with static ground wire
• 1" cast aluminum manual nozzle
• Nozzle boot
• PTFE tape roll
• 1" NPT street elbow
• Ground wire
• Cable gland
• (2) wire nuts
• Locking nut
• Fastener

Dimensions & Weight

• Assembled Dimensions: 8.4 H x 13.7 W x 6.5 D in.
• Assembled Weight: 32.2 lbs.

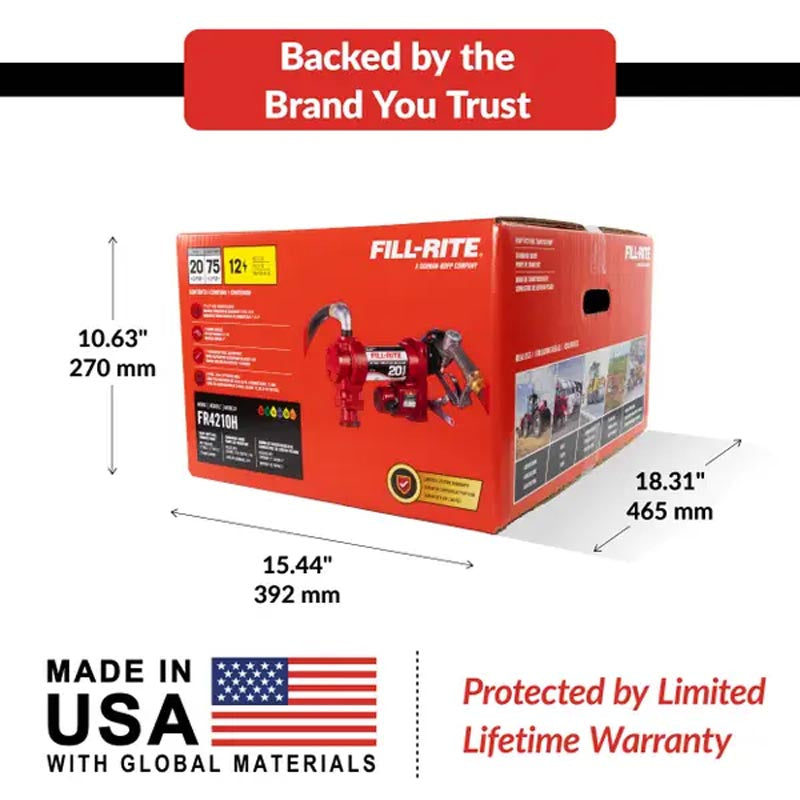

• Package Dimensions: 10.63 H x 15.44 W x 18.31 D in.
• Gross Weight: 34.7 lbs.

Application

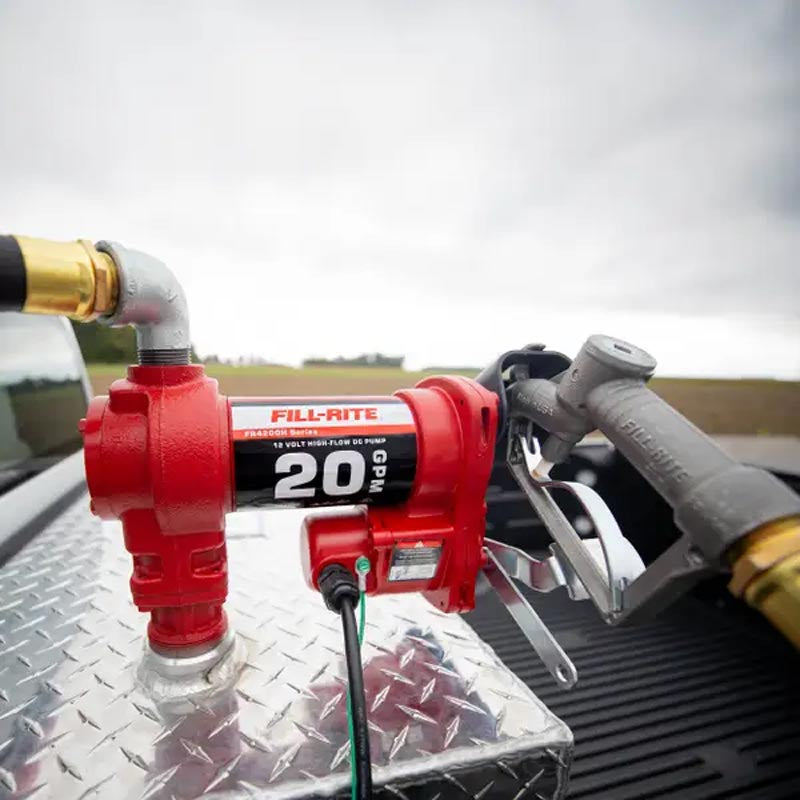

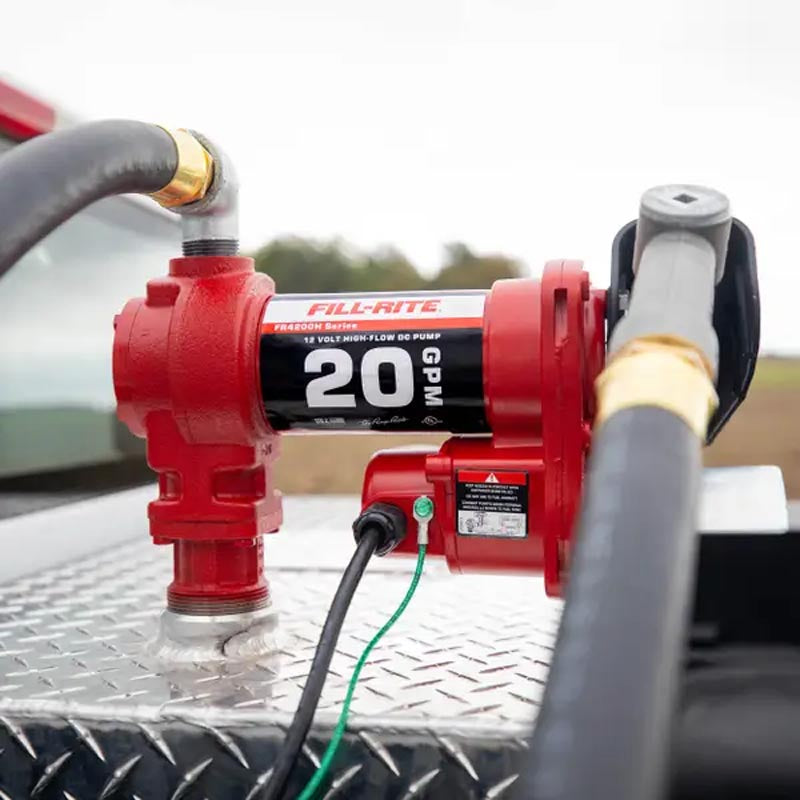

Ideal for mobile fuel transfer from truck-bed transfer tanks to diesel-powered equipment, vehicles and machinery in agricultural, construction, fleet, shop and industrial applications.

California Prop 65 Warning

WARNING: This product can expose you to chemicals including hexavalent chromium compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm.
