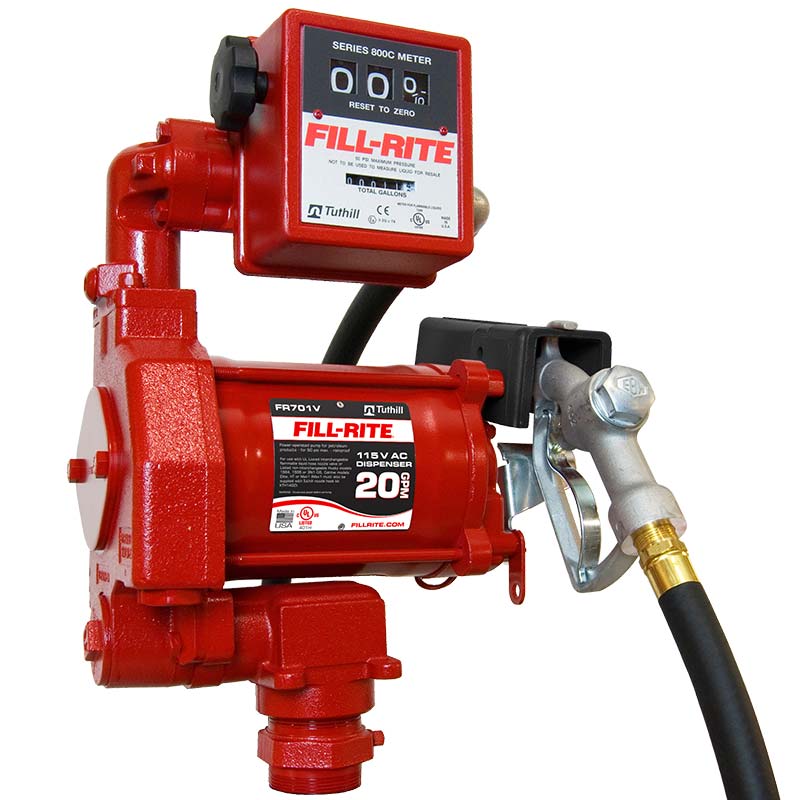

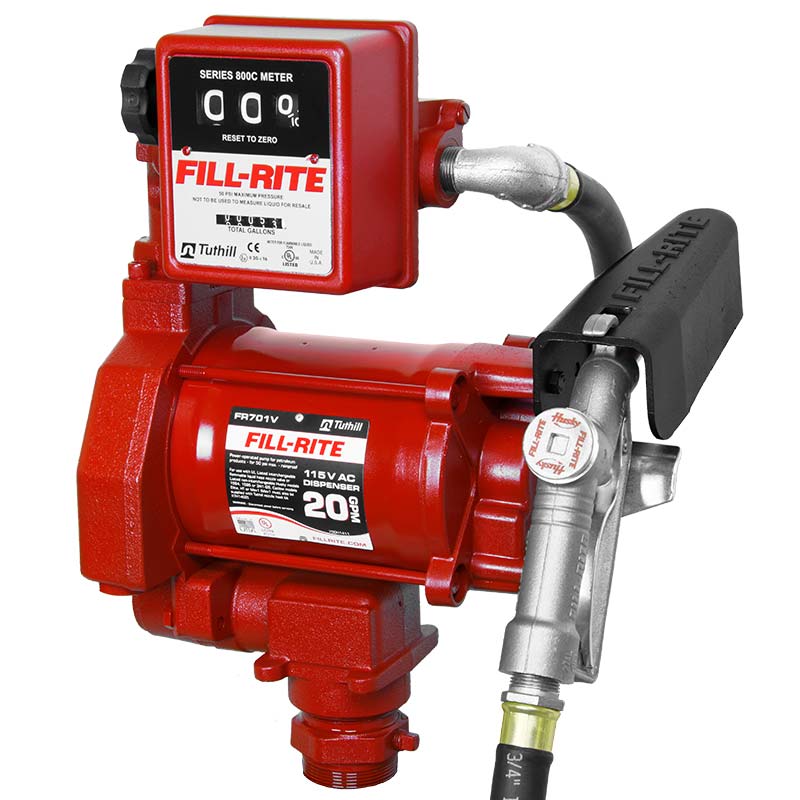

Fill-Rite FR701V 115V AC 20 GPM Fuel Transfer Pump with Meter, Hose & Nozzle

The Fill-Rite FR701V is a heavy-duty 115V AC fuel transfer pump delivering up to 20 GPM with integrated fuel metering. Designed for stationary aboveground tanks and larger equipment, this complete bundle includes a mechanical meter, hose, manual nozzle and installation components.

Features

• 20 GPM Flow Rate: Rotary vane pump technology delivers up to 20 GPM for equipment with 20 to 80 gallon fuel tanks.
• Integrated Fuel Meter: Includes an 807C mechanical meter for measuring fuel dispensed in gallons.
• Heavy-Duty Construction: Cast-iron construction is built for demanding field and job-site applications.
• 115V AC Power: Designed for connection to a standard 115V AC electrical supply and installation on stationary aboveground tanks.
• 2" Bung Mount: Fits standard 2" NPT bung openings for tank installation.
• Consistent Performance: Rotary vane technology maintains consistent performance as the pump wears through normal use.
• Thermal Protection: Thermally protected motor helps protect against overheating.
• Built-In Strainer: 40-micron mesh strainer helps filter particulates from fuel before they reach the pump.
• Limited Lifetime Warranty: Backed by Fill-Rite's Limited Lifetime Warranty.

Specifications

• Flow Rate: 20 GPM / 75 LPM
• Power: 115V AC
• AC Frequency: 60 Hz
• Motor: 0.33 HP
• Maximum Current: 5.5 A
• Inlet: 1-1/4" Female NPT
• Outlet: 3/4" Female NPT
• Mount: 2" NPT Bung Mount
• Duty Cycle: 30 min. on / 30 min. off
• Power Source: Electrical
• Maximum Discharge Pressure: 23 PSI
• Discharge Head: 53 ft.
• Suction Lift: 15 ft.
• Dry Vacuum: 12 in. Hg
• Strainer: 40 x 40 x 0.010" mesh
• Operating Temperature: -13° to 150°F
• Viscosity Range: 0.5 to 5.5 cSt
• Self-Priming: Yes
• Thermal Protection: Yes

Meter Specifications

• Model: 807C
• Display: Mechanical
• Display Digits: 3
• Accuracy: ±1%
• Repeatability: ±0.38%
• Measurement: Gallons

Compatible Fluids

• Diesel
• Kerosene
• Gasoline up to E15
• Biodiesel up to B20
• Mineral Spirits
• Heptane
• Stoddard Solvents

What's Included

• Hard-wire cable connection
• 3/4" x 12 ft. UL-listed discharge hose with static ground wire
• 3/4" cast aluminum manual nozzle
• 807C mechanical meter for gallons
• Nozzle boot
• Meter reset knob
• PTFE tape roll
• 3/4" NPT street elbow
• Locking nut
• Fastener

Dimensions & Weight

• Assembled Dimensions: 19" H x 14.2" W x 11.9" D
• Assembled Weight: 54.3 lbs.
• Package Dimensions: 10.25" H x 20.56" W x 19.56" D
• Gross Weight: 60.5 lbs.

Application: Ideal for stationary aboveground fuel tanks supplying larger equipment and vehicles in shop, fleet, agricultural, construction and industrial applications where measured fuel dispensing is required.

California Proposition 65 Warning: This product can expose you to chemicals including hexavalent chromium compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. See the California Proposition 65 website for additional information.
