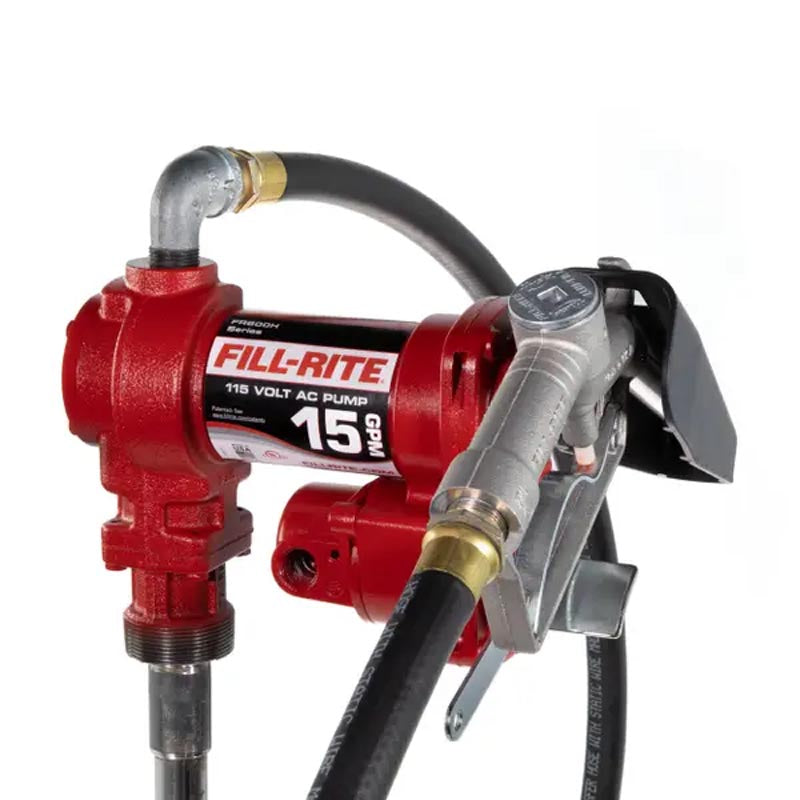

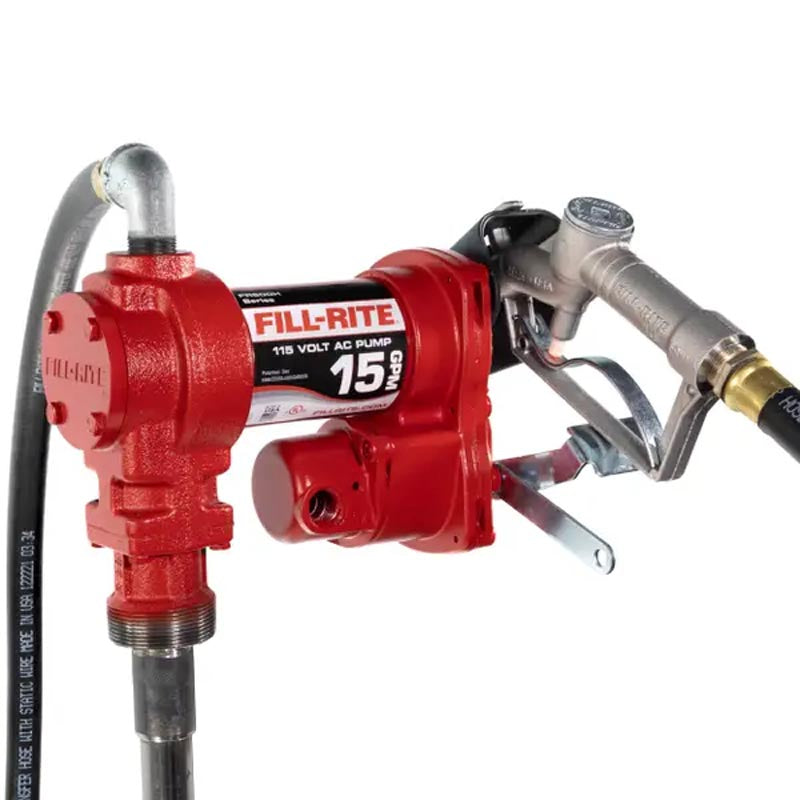

Fill-Rite FR610H 115V AC 15 GPM Fuel Transfer Pump with Hose & Nozzle

The Fill-Rite FR610H is a heavy-duty 115V AC fuel transfer pump delivering up to 15 GPM. Designed for stationary aboveground tanks, this complete bundle includes a hose, manual nozzle, suction pipe and installation components.

Features

• 15 GPM flow rate for efficiently fueling equipment with 15-60 gallon tanks

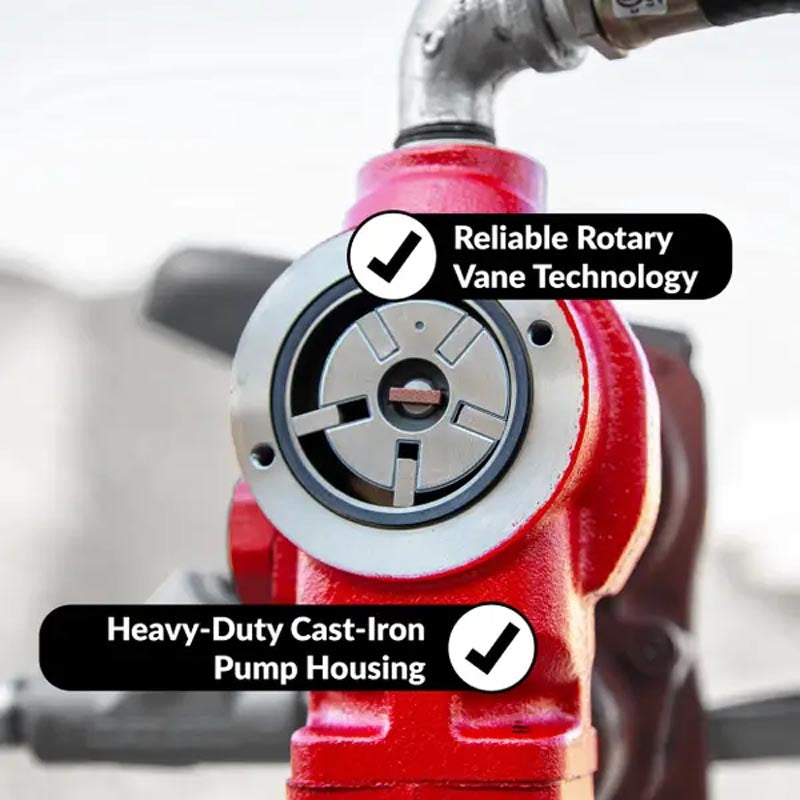

• Heavy-duty cast-iron construction for demanding field and job-site applications
• 115V AC motor with 2" NPT bung mount for stationary aboveground tanks
• Compatible with diesel, gasoline up to E15, biodiesel up to B20, kerosene and mineral spirits
• Rotating electrical junction box simplifies wiring and installation in tight spaces
• Thermally protected motor helps protect against overheating
• Built-in 20-micron strainer helps filter fuel particulates
• Metal on/off switch stopping arm provides dependable repeated operation
• Limited lifetime warranty

Specifications

• Maximum Flow Rate: 15 GPM / 57 LPM
• Power: 115V AC
• Motor Power: 0.17 HP
• Maximum Current: 2 A
• Inlet: 1" Female NPT
• Outlet: 3/4" Female NPT

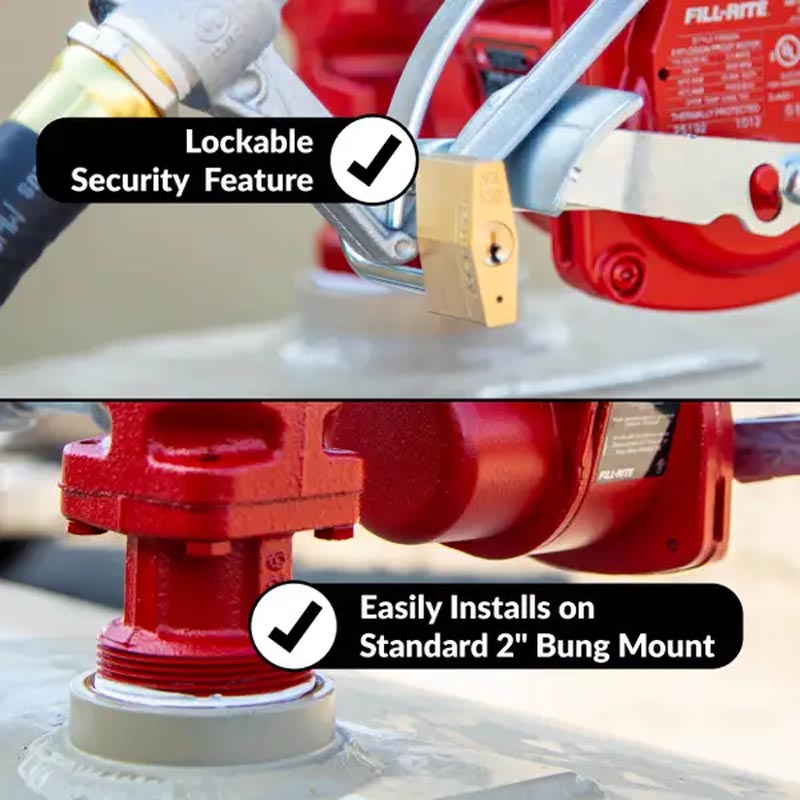

• Mounting: 2" NPT Bung Mount
• Duty Cycle: 30 Min. On / 30 Min. Off
• Maximum Discharge Pressure: 16 PSI
• Discharge Head: 37 ft.
• Suction Lift: 8 ft.
• Dry Vacuum: 5 in. Hg
• Strainer Mesh: 20 x 20 Micron
• Viscosity Range: 0.5 to 5.5 cSt
• Operating Temperature: -17 to 104°F
• Self-Priming: Yes
• Thermal Protection: Yes

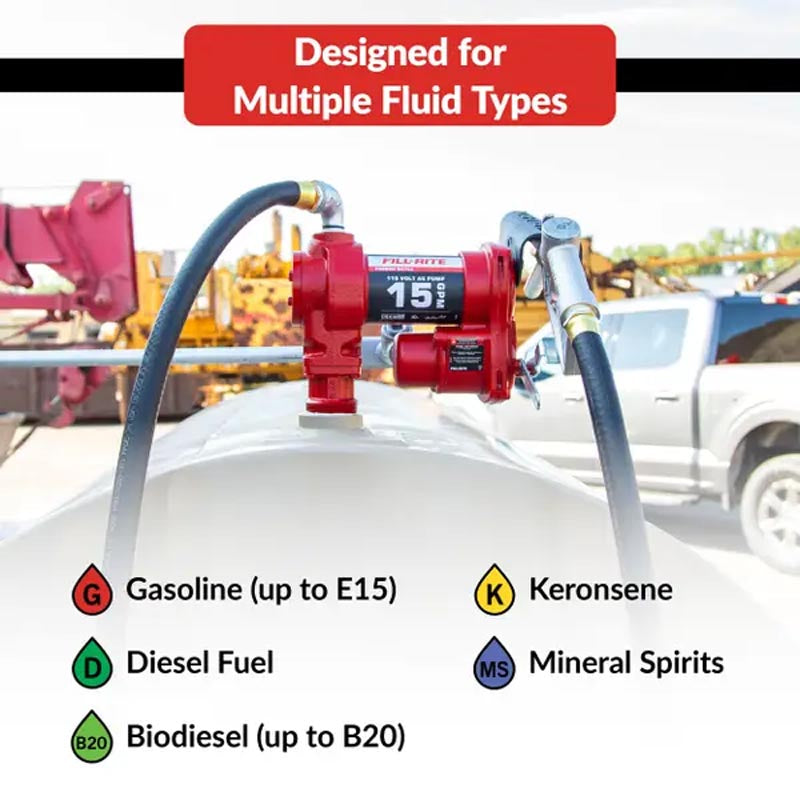

Compatible Fluids

• Diesel
• Gasoline
• Gasoline up to E15
• Biodiesel up to B20
• Kerosene
• Mineral Spirits

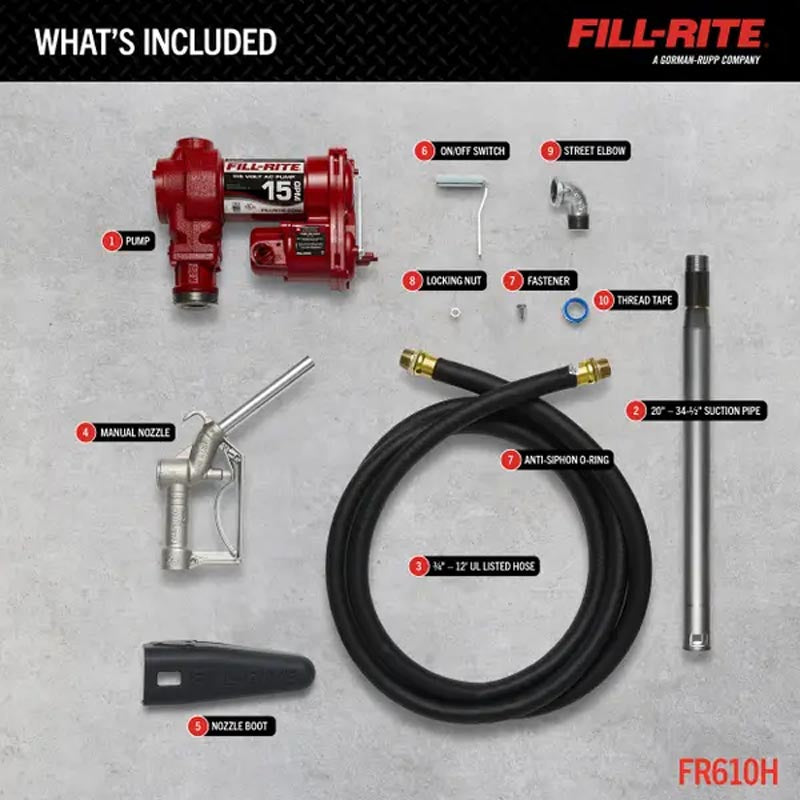

Included

• 18 ft. 12-gauge power cable with bare leads
• 20" to 34-1/2" steel telescoping suction pipe
• 3/4" x 12 ft. UL-listed discharge hose with static ground wire
• 3/4" cast aluminum manual nozzle
• 3/4" swivel
• Nozzle boot
• PTFE tape roll
• 1" NPT street elbow
• Ground wire
• Cable gland
• (2) wire nuts
• Locking nut
• Fastener

Dimensions & Weight

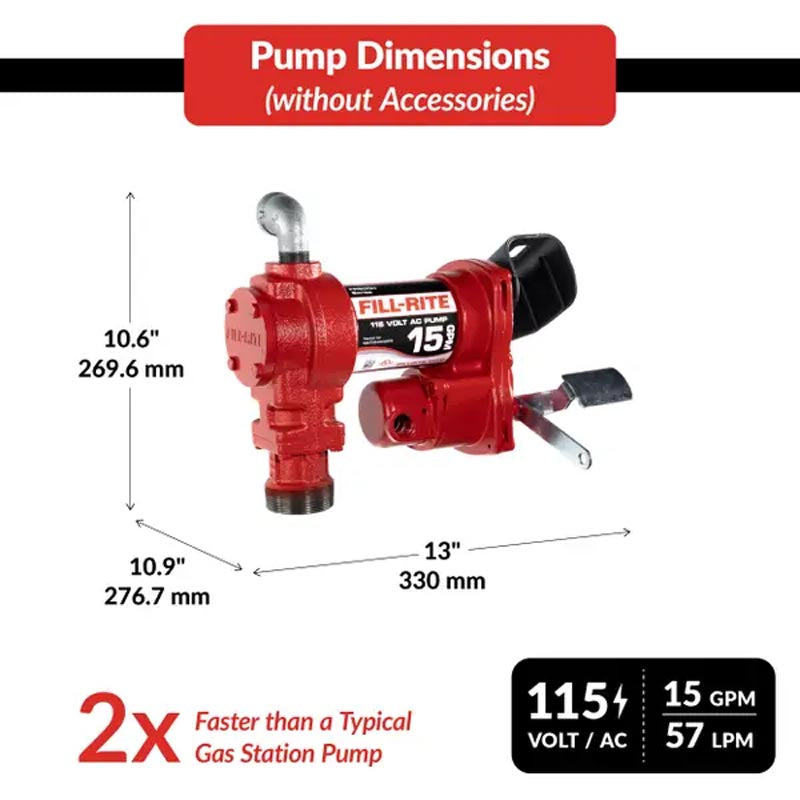

• Assembled Dimensions: 10.5 H x 12.8 W x 10.8 D in.
• Assembled Weight: 26.9 lbs.
• Package Dimensions: 10.63 H x 15.44 W x 18.31 D in.
• Gross Weight: 30.2 lbs.

Application

Ideal for stationary aboveground fuel tanks supplying diesel-powered equipment, vehicles and machinery in agricultural, construction, fleet, shop and industrial applications.

California Prop 65 Warning

WARNING: This product can expose you to chemicals including hexavalent chromium compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm.
