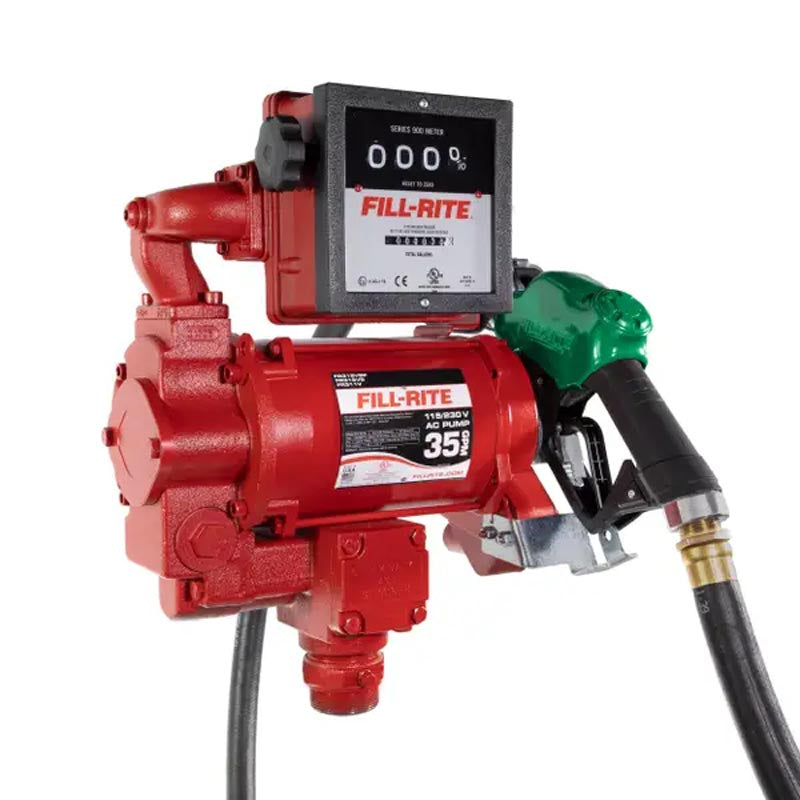

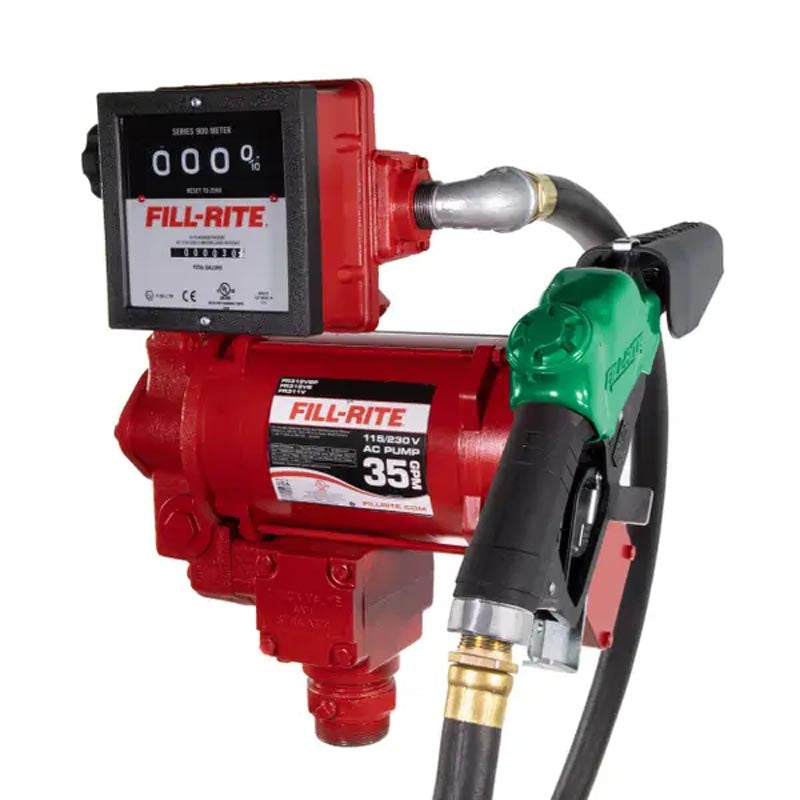

Fill-Rite FR311VB 115/230V AC 35 GPM Fuel Transfer Pump with Meter & Nozzle

The Fill-Rite FR311VB is a heavy-duty 115/230V AC fuel transfer pump delivering up to 35 GPM. Designed for high-volume fueling from stationary aboveground tanks, this complete bundle includes a 901C mechanical meter, 18 ft. hose, 1" automatic diesel nozzle and installation components.

Features

• 35 GPM flow rate for fueling large equipment with 35-140+ gallon tanks
• 901C mechanical meter for measured fuel dispensing
• Heavy-duty cast-iron construction for demanding field and job-site applications
• Dual-voltage 115/230V AC motor with selectable voltage for flexible installation
• 2" NPT bung mount for stationary aboveground tanks
• Compatible with diesel, kerosene, biodiesel up to B20, mineral spirits, Stoddard solvents and heptane
• Rotary vane technology delivers consistent performance throughout pump life
• Thermally protected motor helps protect against overheating
• Built-in strainer helps filter fuel particulates
• Limited lifetime warranty

Specifications

• Maximum Flow Rate: 35 GPM / 132 LPM
• Power: 115/230V AC
• AC Frequency: 50/60 Hz
• Motor Power: 0.75 HP
• Maximum Current: 9.8 A at 115V / 4.9 A at 230V
• Inlet: 1-1/4" Female NPT
• Outlet: 1" Female NPT
• Mounting: 2" NPT Bung Mount
• Duty Cycle: 30 Min. On / 30 Min. Off
• Maximum Discharge Pressure: 26 PSI
• Discharge Head: 60 ft.
• Suction Lift: 18 ft.
• Dry Vacuum: 14 in. Hg
• Strainer Mesh: 40 x 40 x 0.008 in.
• Viscosity Range: 0.5 to 5.5 cSt
• Operating Temperature: -13 to 150°F
• Self-Priming: Yes
• Thermal Protection: Yes

Meter

• Model: 901C
• Type: Mechanical
• Display: 4 Digits
• Accuracy: ±2%
• Repeatability: ±0.38%
• Unit: Gallons
• Batteries: Not Required

Compatible Fluids

• Diesel
• Kerosene
• Biodiesel up to B20
• Mineral Spirits
• Stoddard Solvents
• Heptane

Included

• 901C mechanical meter for gallons
• 1" x 18 ft. UL-listed discharge hose with static ground wire
• 1" ultra high-flow automatic diesel nozzle, green
• Bare-lead cable connection

Dimensions & Weight

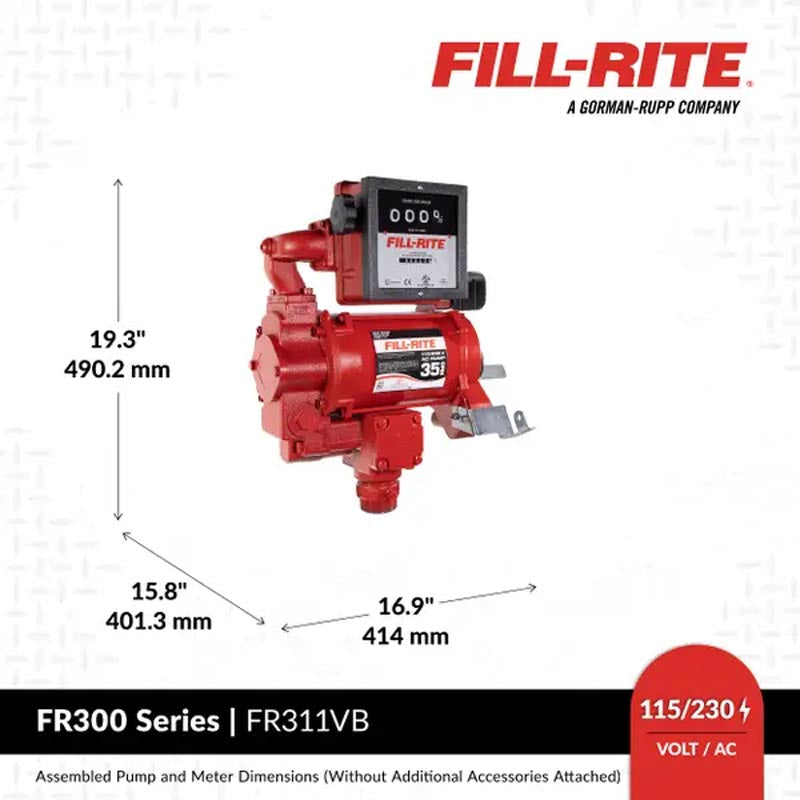

• Assembled Dimensions: 19.3 H x 16.9 W x 15.9 D in.
• Assembled Weight: 80.4 lbs.
• Package Dimensions: 12.25 H x 22.31 W x 19.75 D in.
• Gross Weight: 92 lbs.

Application

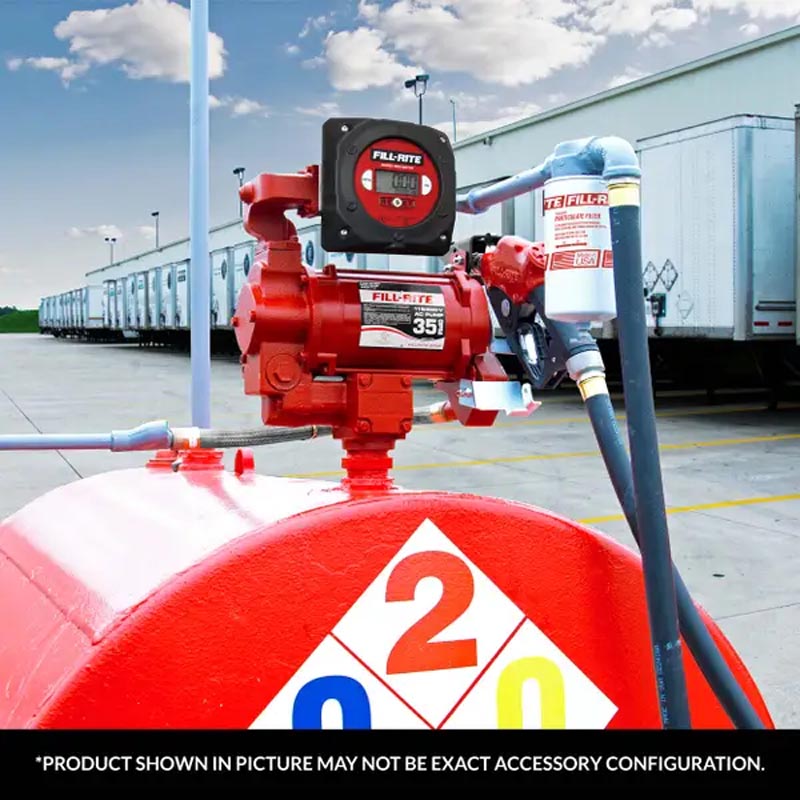

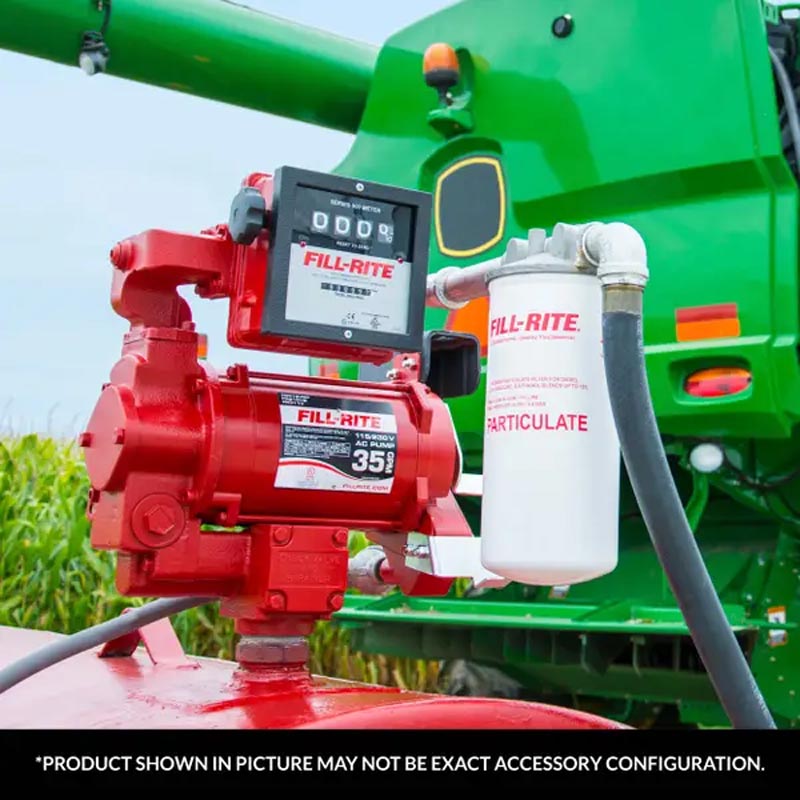

Ideal for high-volume, measured fuel transfer from stationary aboveground tanks to large diesel-powered equipment, vehicles and machinery in agricultural, construction, fleet, shop and industrial applications.

California Prop 65 Warning

WARNING: This product can expose you to chemicals including hexavalent chromium compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm.
