ADJUSTABLE Macnaught BOP205 Battery Powered Stem Kit for Oil, Coolant & ATF (BP205X-UNA)
SKU BP205X-UNA
Original price
$349.99
-
Original price
$349.99
Original price
$349.99
$349.99
-
$349.99
Current price
$349.99
Improve efficiency with complete portability, reduce spills, increase safety, eliminate hand pumps and stop manually pouring oils into smaller containers with the Adjustable BOP205 Battery Operated Pump. Suitable for all Oils up to 140W, Coolant and ATF.
A Single Powerhead Powers Multiple Pumps. Zero Contamination.

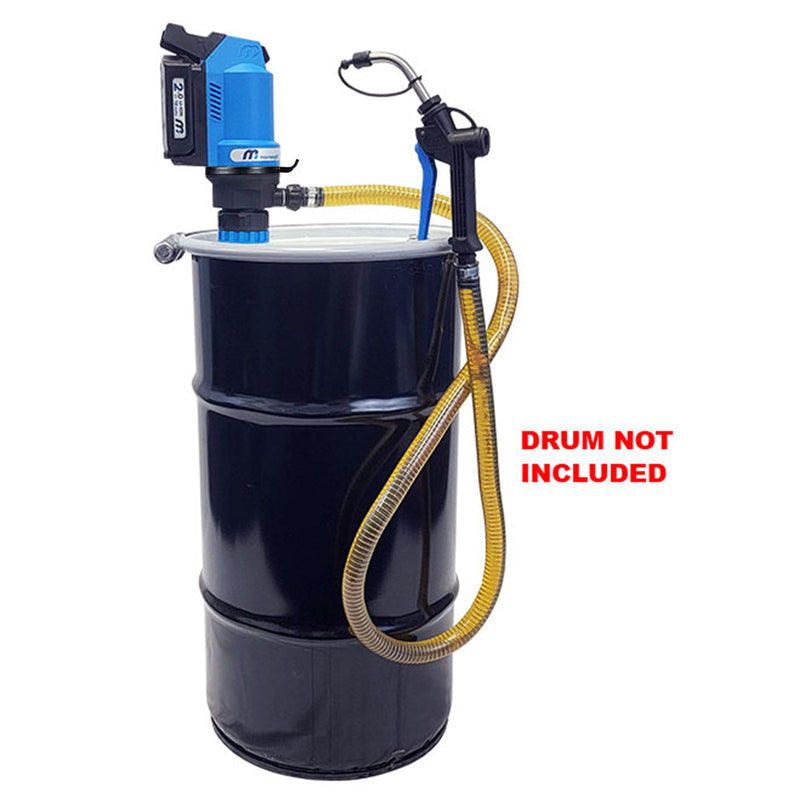

This battery operated oil stem kit is your fluid handling solution all the way, now for use from 5 gal. containers through to 55 gallon Oil Drums.

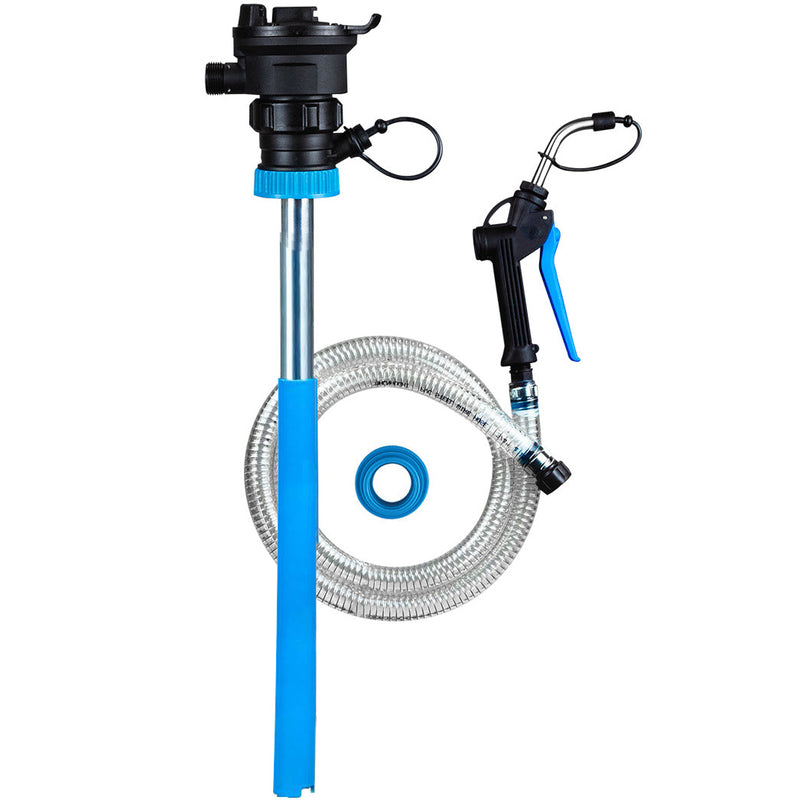

This Stem Kit is typically purchased with an existing BOP Oil Pump Kit for differing oil; eliminating cross-contamination. Complete with the Adjustable Suction Tube Stem with 5ft of 3/4 hose and On Demand Nozzle. No need to use cumbersome and difficult to dispense hand pumps or transfer oils manually to smaller containers.Â
Simply clicking the Powerhead ( provided separately ) on this new Stem makes transferring different grades of oil simple and fast.
NEWLY ENHANCED PUMP STEM
We have transformed our Pump Stem to allow for a single stem to handle multiple fluid types. Now one size fits both 5 Gallon 16 Gallon and 55 Gallon Containers and Drums!
New Adjustable Pump Stem enhancement is now suitable for:
- Engine oil
- Gear oil
- Hydraulic oil (oils up to SAE140 viscosity)
- Automatic transmission fluid (ATF)
- Engine coolant
Fluid specific stems are no longer required with our Universal Pump Stem
*pails or containers not included
INCLUDES 2 YEAR WARRANTY!
Macnaught BP205X-UNA Specifications
| Description | BOP205 Universal Adjustable Oil Stem Kit |
| Part number |
BP205X-UNA |
| Drum size | 5 Gallon Pails, 16 Gallon and 55 Gallon Drums |
| Adjustable Suction Tube | Yes! (Longer blue sleeve on shaft) |
| Lubricant Range | Up to 140W / ISO680, ATF & Coolants |
| Delivery Rate | Up to 1.5+ GPM @ 68F cooler temps will reduce output |
| Hose | 5 ft of 3/4" Hose. 10ft options are available |
| Charger (Not Included) | 45 min fast charge |
| Battery (Not Included) | 18V Li-Ion Smart Battery 2.0Ah up to 40 GAL/Charge |
| Fully serviceable | Yes |
| Warranty | 2 years |
Â
Adjustable MacNaught BP205X-UNA Features and Benefits
- ADJUSTABLE SUCTION TUBE (longer blue sleeve on shaft)
- On Demand control nozzle
- Sealed wetted parts
- Powerhead for use with multiple oils (sold separately)
- 18V rechargeable 2.0Ah battery delivers up to 40GAL (sold separately)
- Oils up to SAE140 / ISO680
- Flow rates up to 1.5+GPM
- No more pumping by hand to reduce fatigue
- No air required, eliminates costly air pumps
- No funnels needed, reducing spillage
Operations Manual:Â PDF
5 Gallon Bucket Oil Dispenser Pump kit Video>>
Applications:
- Automotive, Truck & Bus
- Marine
- Mining
- Heavy Equipment Maintenance
- Aviation Plant Equipment
- Farming Equipment and Agriculture Use
- Crane Maintenance
- Wind Farm Gear Box
- Locomotive/Rail
- Mobile Service
- Forklift
- Gearbox
- Compressor
- Elevator
- Turbine
- Truck and Bus
- Windmill
- Plant
- Machinery
- General Industrial Oiling Uses
How To Order
The BP205X-UNA Adjustable Stem Kit does not come with a Powerhead, Battery, or Charger.

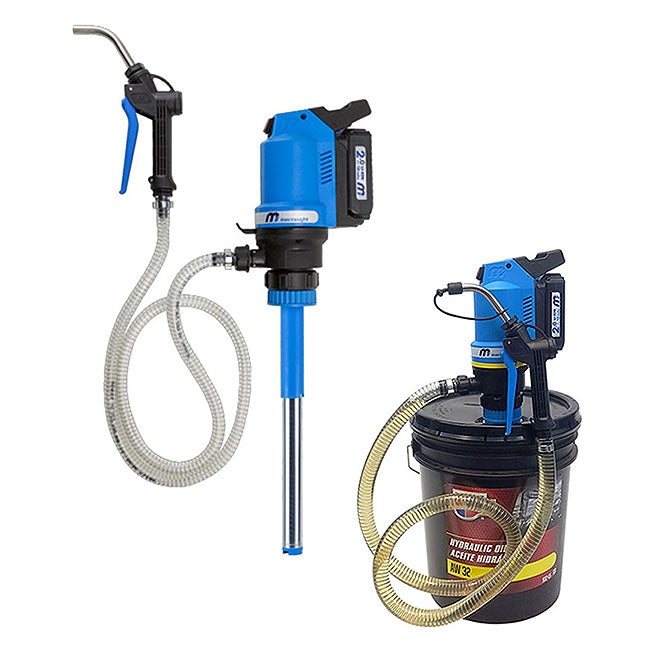

BOP users first purchase an Oil Pump Starter Kit (BP205S-UNU) and purchase this Stem Kit separately for differing oils, coolant or ATF.
The Powerhead from the Oil Pump Starter Kit clicks on and off all BOP Stems, making this system very cost-effective and flexible.
Caution: If you do not have an existing Oil Pump Kit with Powerhead, Battery & Charger, this Stem Kit will not work.
Most BOP users purchase a spare BOP Battery to have one battery working and one battery charging
Frequently Asked Questions
Q: Can I use a Non-Macnaught 18V Battery on the BOP?
A: No, BOP requires a Macnaught Battery
Q: Can I store the Powerhead outside?
A: No, the BOP Powerhead is not rated for rain conditions. Store the Powerhead in a dry location. Caution: Do not drop the Powerhead- damage can occur at any distance drop.
Q: Can I pump diesel with BOP?
A: No, only the rated fluids - Hydraulic or Engine Oils up to 140W/ISO680, Coolant & ATF.
Fuels of any type are very dangerous to pump and will damage the BOP seals. Only Oils, Coolant or ATF. No other fluids are warranted.
Q: Can BOP be used for Marine Outboard fills?
A: Yes, we have many Marine Mechanics using BOP for this application. You will need to modify the Nozzle Tip to accommodate the type of Outboard connection you will use
Q: Is BOP 3A or Sanitary compliant?
A: No, BOP can only be used with rated fluids.
Q: Does BOP work with 2.5 Gallon Jugs?
A: Yes, BOP205 does fit

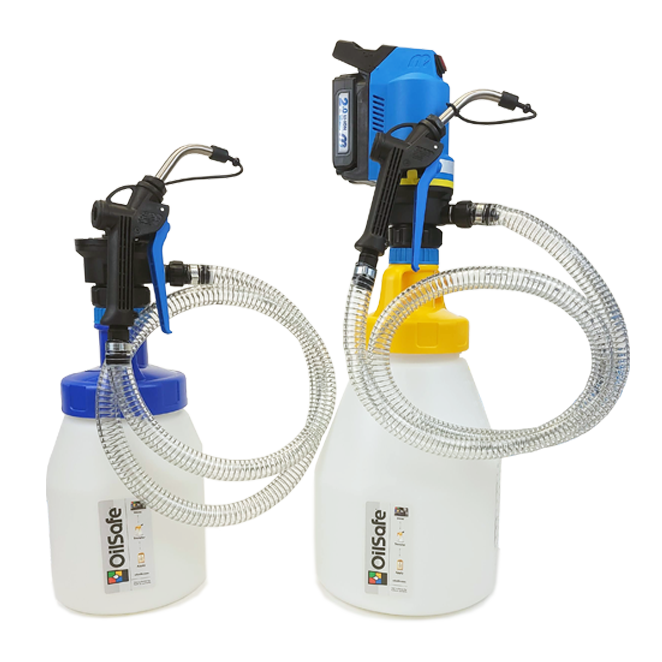

Q: Will BOP fit into my Oil Safe or other containers?
Yes, BOP205 fits perfectly with 5-liter and 10 Liter Oils Safe Containers with their Utility Lid.
The BOP205 also fits Des Case 7-Liter and 10-Liter and Trico 3-gallon and 4-gallon containers with Pump Lids.
Q: Can I run the BOP dry?
A: No, do not allow the BOP to run dry. Impeller damage will occur.
Q: Is the BOP serviceable?
A: Yes, we have Impeller Kits in stock.
Q: Do you offer a meter with the BOP?
A: Yes easy to install and operate >Â BOP Meter
Q: My 5 Gallon Pail is an odd size, will the BOP205 work?
A: Yes, the adapter fits most pail bungs and the BOP205 comes with an adjustable suction tube to evacuate fluids on taller pails up to 55 gallon drums.
Q: My BOP is running slower at cold temperatures why?
A: Oils thicken with lower temperatures, and cooler weather will slow the BOP flow rate. We recommend keeping oil containers as warm as possible indoors or with heating blanket wrap systems. BOP works best at 60F plus.
Q: My BOP stopped Pumping. The battery is charged, Powerhead light is on what do I do?Â
A: Inspect the Impeller for Damage or Plugging > BOP Manual
