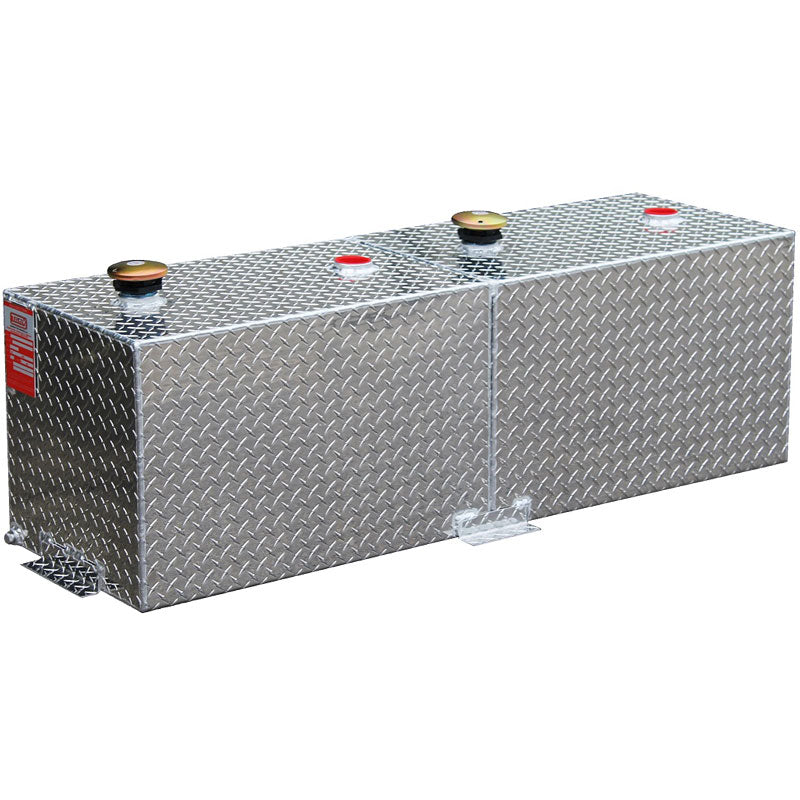

72 Gallon Split Refueling Tank | DOT Approved | ATI TTR72S
110 Gallon Split Refueling Tank | DOT Approved | ATI TTR110S
72 Gallon Split Refueling Tank | DOT Approved | ATI TTR72S

110 Gallon Split Refueling Tank | DOT Approved | ATI TTR110S

by Aluminum Tank Industries
SKU
$1,554.00 - $1,554.00
$1,554.00
$1,554.00 - $1,554.00
$1,554.00

110 Gallon Split Refueling Tank (55/55 Gallons) | DOT Approved Built for Commercial, State, and Industrial Applications

ATI Refueling Tanks are engineered to withstand the toughest conditions, giving you durability and peace of mind. These tanks are designed for commercial, state, and industrial applications, holding and dispensing fuels safely and legally.

Split Refueling Tanks are engineered for users who need to transport and refuel two separate fluids safely and legally. Ideal for gasoline, diesel, methanol, kerosene, aviation fuel, and more, these tanks allow you to carry two different fuels in one tank system without risk of cross-contamination.

Available in L-Shape and Rectangle designs, each tank comes in 72, 85, 95, and 110-gallon capacities, with the total capacity evenly split into two separate compartments. This design makes it easy to store and dispense two fuels simultaneously, whether on a flatbed or in the bed of a pickup truck.

Each tank includes two 2" NPT bungs, giving you the flexibility to position the fuel fill cap and transfer pump on whichever side fits your setup best. Built from rugged diamond plate aluminum with fully welded baffles, ATI Split Refueling Tanks are durable, dependable, and designed to perform in demanding industrial and commercial applications.

110 Gallon Split Refueling Tank Dimensions

Important Notes:

  • Mounting tabs extend out 1-1/2"
  • Add 2 1/2" for cap height

  • A: 23 1/2"
  • B: 48 1/2"
  • C: 24"
  • 55 Gallons
  • 55 Gallons

Refueling Tank Features:

  • Special Permit issued by the U.S. Department of Transportation
  • Legal for gasoline, diesel, methanol, kerosene, aviation fuel, and other liquids
  • Commercial-grade lockable vent/prevent filler cap
  • Fully baffled to minimize fuel movement
  • Two 2" NPT reinforced bungs for superior strength
  • 3/8" NPT drain for easy maintenance
  • Hold-down brackets for secure installation
  • Pressure and leak tested for safety
  • Clean and debris-free inside and out
  • 1-year limited warranty

Optional Refueling Transfer Pumps up to 30 lbs are available to complete your fueling setup.

20 GPM 12V Fuel Transfer Pump Automatic Shut-Off Diesel Nozzle | BS-G20-012AD

20 GPM 12V Fuel Transfer Pump with Automatic Shut-Off Diesel Nozzle | BS-G20-012AD

Aluminum Tank Industries
$979.00 - $979.00
$979.00
$979.00 - $979.00
$979.00

20 GPM 12V Fuel Transfer Pump Automatic Shut-Off Diesel Nozzle Recommended for use with these fuels: Diesel Fuel up to B20 | Gasoline up to E15 | ...

View full details
$979.00 - $979.00
$979.00
$979.00 - $979.00
$979.00
15 GPM 12V Fuel Transfer Pump with Automatic Nozzle | BS-M150S-AU

15 GPM 12V Fuel Transfer Pump with Automatic Nozzle | BS-M150S-AU

Aluminum Tank Industries
$668.00 - $668.00
$668.00
$668.00 - $668.00
$668.00

15 GPM 12V Fuel Transfer Pump with Automatic Nozzle Recommended Fuels: Diesel (up to B20) | Gasoline (up to E15) | Kerosene The M-150S-AU is the in...

View full details
$668.00 - $668.00
$668.00
$668.00 - $668.00
$668.00
15 GPM 12V Fuel Transfer Pump with Manual Nozzle | BS-M150S-MU

15 GPM 12V Fuel Transfer Pump with Manual Nozzle | BS-M150S-MU

Aluminum Tank Industries
$613.00 - $613.00
$613.00
$613.00 - $613.00
$613.00

15 GPM 12V Fuel Transfer Pump with Manual Nozzle Recommended Fuels: Diesel (up to B20) | Gasoline (up to E15) | Kerosene The M-150S-MU is the indus...

View full details
$613.00 - $613.00
$613.00
$613.00 - $613.00
$613.00
8 GPM 12V Fuel Transfer Pump | EZ-8

8 GPM 12V Fuel Transfer Pump with Manual Nozzle | EZ-8

Aluminum Tank Industries
$454.00 - $454.00
$454.00
$454.00 - $454.00
$454.00

8 GPM 12V Fuel Transfer Pump with Manual Nozzle Recommended Fuels: Diesel (up to B20) | Gasoline (up to E15) | Kerosene The EZ-8 12V DC Fuel Transf...

View full details
$454.00 - $454.00
$454.00
$454.00 - $454.00
$454.00

Dual Flo Fuel Transfer Hand Pump | 50 Gal per 100 Strokes | BS-HP100-UL

Aluminum Tank Industries
$359.00 - $359.00
$359.00
$359.00 - $359.00
$359.00

Dual Flo Fuel Transfer Hand Pump with 50 Gallon per 100 Strokes | BS-HP100-UL For use with diesel (diesel blends to B20), gasoline (alcohol blends ...

View full details
$359.00 - $359.00
$359.00
$359.00 - $359.00
$359.00
Shop Refueling Transfer Pumps

ATI refueling tanks are legal in all 50 states for gasoline, kerosene, methanol, diesel, and aviation fuel.

It is the user's responsibility to comply with local, state and federal requirements pertaining to safe transportation, loading and discharging tank contents.

Constructed from rugged diamond plate aluminum, and manufactured in the USA to ensure durability and performance, these refueling tanks are designed to handle the toughest jobs while keeping your fuel safe and secure. Whether you’re a farmer, contractor, municipality, or private citizen, you can rely on an ATI tank to last a lifetime.

Special Permit, DOT approved Aluminum Tank Industries

Aluminum Tank Industries, Inc. (ATI) has been granted a special permit from the U.S. Department of Transportation for its aluminum refueling tanks.

This permit allows you to refuel equipment, machinery, or vehicles without removing the fuel tank from your vehicle. ATI is authorized to manufacture, mark, and sell refueling tanks that safely store and dispense gasoline, diesel, methanol, aviation fuel, and kerosene in capacities up to 119 US gallons.

Most "transfer tanks" on the market are designed only for transporting non-flammable liquids. ATI’s refueling tanks are specifically designed and DOT-approved for both transport and on-vehicle refueling of flammable fuels. The special permit ensures that these tanks meet stringent federal safety standards, making them legal for private, commercial, and state use.

Navigating fuel regulations can be confusing. The DOT allows companies to build transfer tanks for diesel or other non-flammable liquids, but manufacturers must comply with detailed design specifications. Normally, the DOT does not verify compliance unless there is an incident, meaning many tanks are only legally suitable for limited private use.

ATI refueling tanks, under their special permit, are different:

  • DOT-reviewed and approved: every aspect of design, materials, and construction is scrutinized to ensure safety.
  • Safe for flammables: tanks are approved for gasoline, diesel, methanol, aviation fuel, and kerosene.
  • Pump-ready and legal: you can safely and legally dispense fuel from the tank while it remains in your vehicle.

With capacities of 36 to 110 US gallons, carrying fuel is a serious responsibility. When it comes to quality, legality, and safety, trust ATI’s refueling tanks. Built to last, built like a tank.
