Ultra-Modular IBC Spill Pallet | Indoor - 5 IBC | UltraTech 1128
by UltraTech
SKU 1128
Original price
$3,275.00
-
Original price
$3,275.00
Original price
$3,275.00
$3,275.00
-
$3,275.00
Current price
$3,275.00

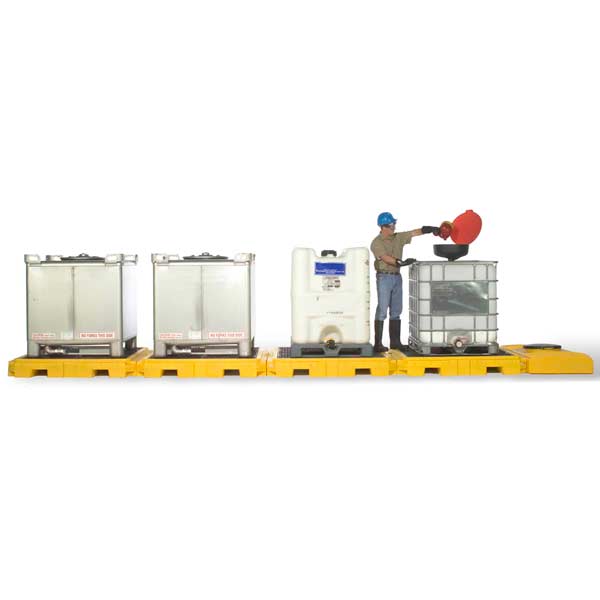

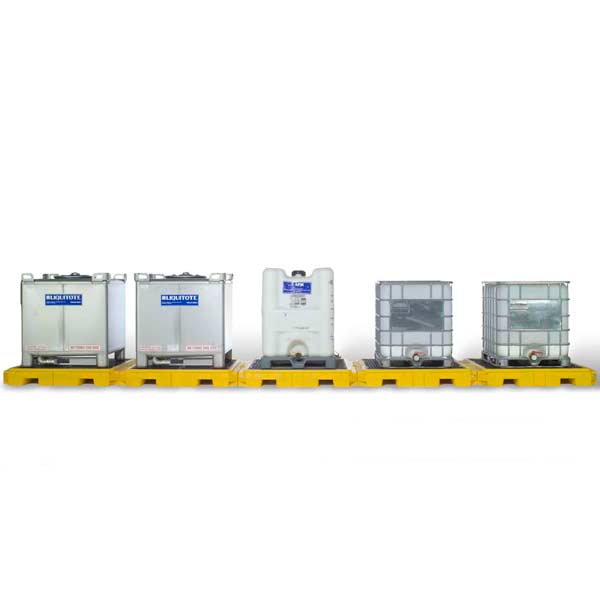

Ultra-Modular IBC Spill Pallet Indoor Modular Containment System
Includes 0 Expansion Tanks and 5 Pallets
The Ultra-Modular IBC Spill Pallet delivers a cost-effective, space-saving solution for the indoor containment of multiple intermediate bulk containers (IBCs), totes, or tanks. Designed for warehouses, manufacturing facilities, and industrial environments, this modular system allows individual spill pallets to connect via flow-through bulkhead fittings, sharing walls and maximizing containment while maintaining EPA compliance.
Each spill pallet supports heavy-duty loads up to 9,000 lbs, with a low-profile footprint measuring 62 x 62 x 8.75 inches and a containment capacity of 75 gallons per pallet. Flow-through bulkhead fittings enable liquids to channel between connected units, effectively borrowing containment capacity from adjacent pallets to safely capture overflows. Optional 65-gallon expansion tanks increase system capacity for high-volume applications, while 100% chemical-resistant polyethylene construction ensures durability against acids, solvents, and oils. Scalable and configurable, the Ultra-Modular IBC Spill Pallet system enhances safety, minimizes spill risks, and optimizes indoor storage efficiency.
- Modular spill pallets connect via bulkhead fittings for shared containment
- Indoor pallet dimensions: 62 x 62 x 8.75 inches, 75-gallon containment per pallet
- Flow-through bulkhead fittings allow channeling of spills between units
- Optional 65-gallon expansion tanks available to increase system containment
- Constructed from 100% chemical-resistant polyethylene, resistant to acids, solvents, and oils
- Scalable solution for indoor warehouses and industrial facilities, enhancing safety and efficiency
Ultra-Modular IBC Spill Pallets (Indoor) Specifications
| Part No. | Description | Dimensions (In.) | Grating Surface (In.) | Load Capacity (Lbs.) | Containment Capacity (Gal.) | Weight (Lbs.) |
|---|---|---|---|---|---|---|
| 1125 | 2-Tank Model | 186 x 62 x 11 | 52 x 52 | 9,000 | 280 | 310 |
| 1126 | 3-Tank Model | 248 x 62 x 11 | 52 x 52 | 9,000 | 355 | 435 |
| 1127 | 4-Tank Model | 279 x 62 x 11 | 52 x 52 | 9,000 | 365 | 531 |
| 1128 | 5-Tank Model | 310 x 62 x 11 | 52 x 52 | 9,000 | 375 | 625 |
Accessories for Indoor and Outdoor Ultra-Modular IBC Spill Pallets
-
Part No: 1118
Description: Assembly Kit (Required)
REQUIRED: YES
Weight: 2 lbs
-
Part No: 1117
Description: 1.25" Bulkhead Fittings (Set of 2)
Dimensions: 3 x 3 x 3 inches
Load Capacity: N/A
Containment Capacity: N/A
Weight: 2 lbs
-
Part No: 1124
Description: Expansion Tank Only
Dimensions: 61 x 31 x 12.5 inches
Load Capacity: N/A
Containment Capacity: 65 gallons
Weight: 30 lbs
-
Part No: 9630
Description: Spill Pallet Without Drain
Dimensions: 62 x 62 x 8.8 inches
Load Capacity: 9,000 lbs
Containment Capacity: 75 gallons
Weight: 140 lbs
