For top-tier performance and efficiency, choose the fully automatic ArcticPRO ACX2180 A/C service machine

High Performance R134a Air Conditioning Handling System

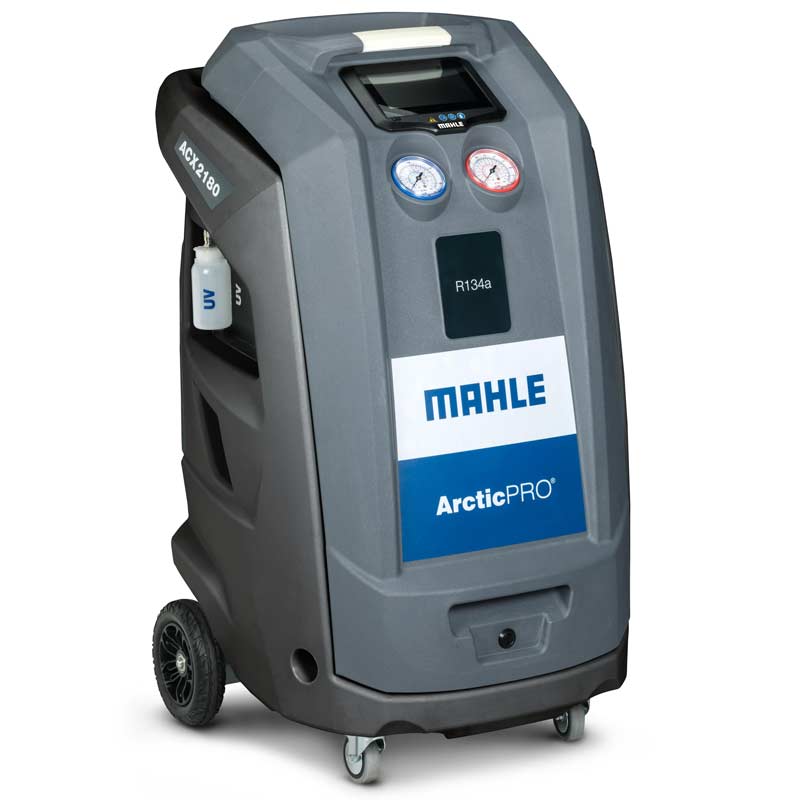

If you’re looking for a machine built for performance, look to the ArcticPRO ACX2180 R134A Refrigerant Handling System. These new high-performance units are fully automatic and able to run practically unattended. Each unit was designed with an ergonomic, convenient service door, and an intuitive, state of the art user interface to provide an optimal environment for effortless A/C service and simple unit maintenance. For a streamlined shop, and safe and precise A/C refrigerant handling, rely on ArcticPRO.

ArcticPRO ACX2180 Refrigerant Handling System Features

• State-of-the-art ergonomic design, 7" capacitive touch LCD display, and intuitive user interface set a new industry standard.
• Contains three transducers, providing reduced process times over dual-sensor units.
• LED light indicates status visible from anywhere in the workshop.
• iOS and Android capable phone app allowing remote service session mirroring and advanced functions.
• Best-in-class serviceability with a new ergonomic hinged service door that simplifies unit service.
• Permanent wireless automatic software updates, ensuring you always have the latest features.
• Automatic weighing of recovered oil, allowing accurate replenishment of oil removed during service and supporting two oil types for injection.
• Integrated UV dye injection provides a high level of A/C system leak detection.
• Remote support for technicians allows MAHLE to connect to a unit over Wi-Fi for troubleshooting and advanced support.
• Data management and reporting metrics offer the ability to log and monitor services for analytics, proactive service reminders, refrigerant use optimization, warranty reporting, and more.
• Every unit is built to be easily repaired by the owner; we proudly offer nationwide service centers and lifetime phone support coverage.
• Retain valuable service records with network printing capability to print services provided for the customer.

Optional Features for the ArcticPRO ACX2180

• Thermal Printer. Allows printing of service reports.

ArcticPRO ACX2180 Specifications

• Certifications: SAE J2788, SAE J2099, UL 1963
• Charge Performance: +/- 0.5 oz at 70° to 75°F (+/- 15g at 21° to 24°C)
• Recovery Performance: 95% at 70° to 75°F (21° to 24°C) within 30 minutes
• Operation: Fully Automatic
• Charging Cylinder: 30 lb. (13.6 kg) DOT
• Compressor: 3/8 HP - 0.279 kW
• Dimensions (H × W × D): 47 in × 29 in × 29 in (119 cm × 74 cm × 74 cm)
• Weight: 215 lb. (98 kg)
• Display: Color, 7” Capacitive Touch Screen
• Filter Drier Capacity: 200 lb. (91 kg) spin-on type
• Hoses: 9 ft. (2.75 m)
• Hybrid Function: ACX2180H only
• Languages: English, French, Spanish
• Operating Ranges: 50° to 122°F (10° to 50°C)
• Power Source: 120 VAC - 60 HZ - 12 AMP
• Printer: Optional
• Vacuum Pump: 1.8 CFM dual stage
• Warranty: 1 Year Labor, 2 Years Parts
