Oil Dispense Bar, Metered + Roth Tank Package

SKU DWT110OTM
Original price $3,649.00 - Original price $5,319.00
Original price
$3,649.00
$3,649.00 - $5,319.00
Current price $3,649.00

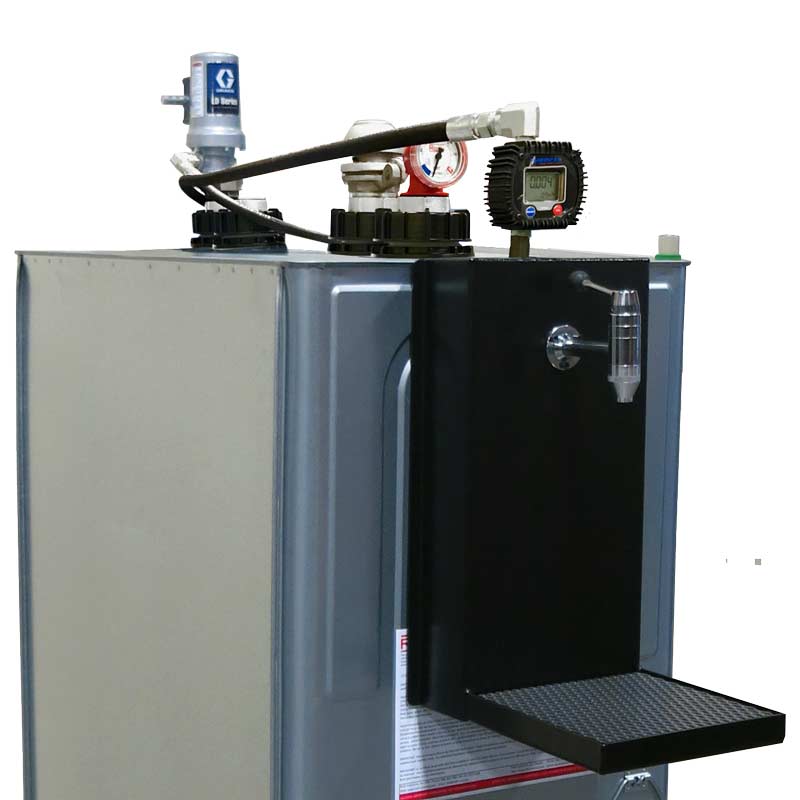

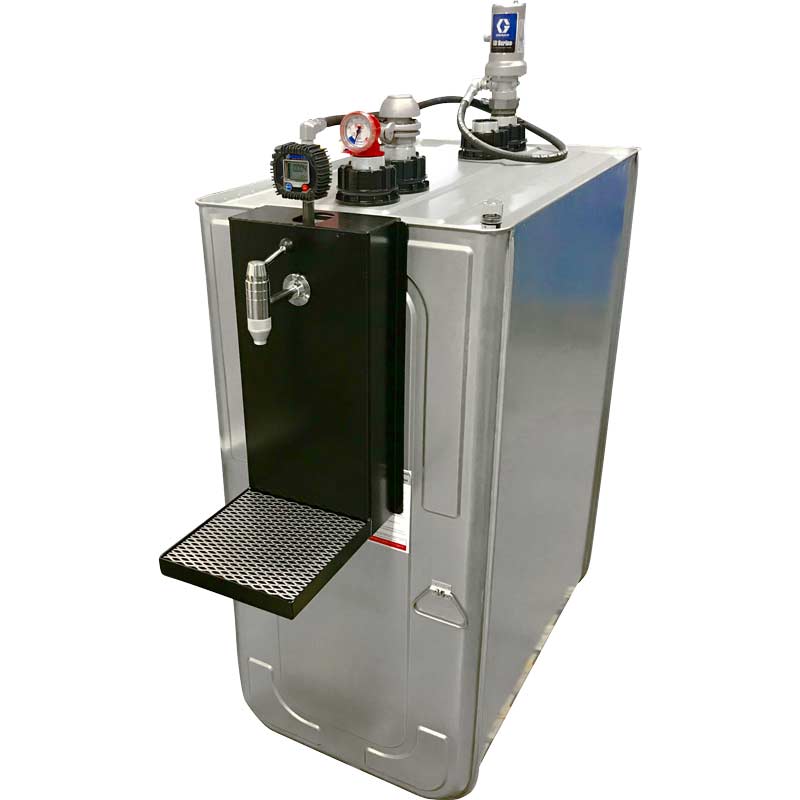

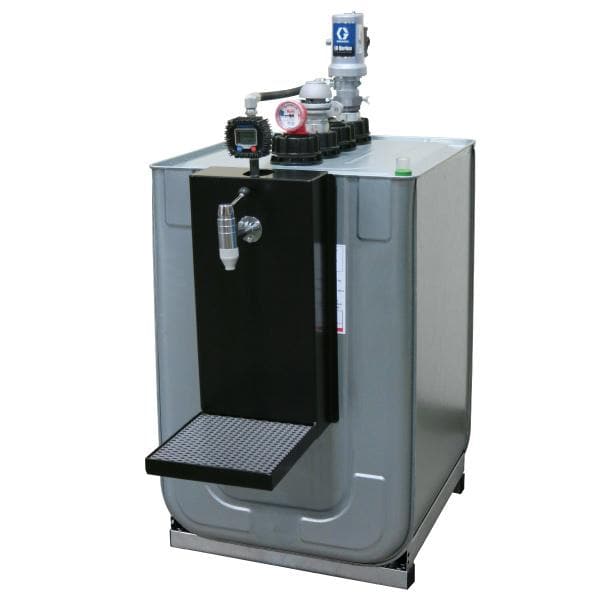

Oil Dispense Bar, Metered + Roth Tank Package provides clean, efficient and quick oil top-offs for motor oils, gear oils, lubricants, hydraulic fluids and ATF.

Our heavy-duty Oil Tap Bar is constructed of powder-coated steel that is secured to the front of the Roth double wall tank.

The oil dispense area provides 15″ of clearance below the tap, ideal for quick top-offs into an oil transfer container. The Oil Bar is equipped with one spring-loaded, non-drip oil dispense valve and a removable mesh drip tray.

Oil Dispense Bar, Metered + Roth Tank Package include:

  • Graco Oil Tap Bar (Graco LD 3:1 oil pump, single tap oil bar with dispense valve, hose, and air pressure regulator)
  • Down tube
  • Meter
  • Fluid Level gauge
  • Lockable fill cap with vent

Specifications for Oil Dispense Bar, Metered + Roth Tank Package

Specifications below are measured for the Roth Tank only, and do not include added measurements from dispense equipment. Certified to UL SU2258, and are compliant with NFPA 30 & 30A.

  • 110 Gallon
  • 165 Gallon
  • 275 Gallon
  • 275 Low Profile
  • 400 Gallon
    • Tank Model: DWT 400L
    • Part Number: 2335103401
    • Gallon Capacity: 110 Gallons
    • Liter Capacity: 400 Liters
    • Roth Width: 28in
    • Roth Length: 29in
    • Tank Height: 44in (Add 4in for Top Openings). Packaged Height is 54in.
    • Tank Weight: (lbs.): 106
    • Tank Model: DWT 620L
    • Part Number: 2335101861
    • Gallon Capacity: 165 Gallons
    • Liter Capacity: 620 Liters
    • Roth Width: 28in
    • Roth Length: 29in
    • Tank Height: 61in (Add 4in for Top Openings). Packaged Height is 71in.
    • Tank Weight: (lbs.): 132
    • Tank Model: DWT 1000L
    • Part Number: 2335101862
    • Gallon Capacity: 275 Gallons
    • Liter Capacity: 1000 Liters
    • Roth Width: 28in
    • Roth Length: 43in
    • Tank Height: 61in (Add 4in for Top Openings). Packaged Height is 71in.
    • Tank Weight: (lbs.): 167
    • Tank Model: DWT 1000LH
    • Part Number: 2335103722-275LH
    • Gallon Capacity: 275 Gallons
    • Liter Capacity: 1000 Liters
    • Roth Width: 30in
    • Roth Length: 51in
    • Tank Height: 54in (Add 4in for Top Openings). Packaged Height is 64in.
    • Tank Weight: (lbs.): 208
    • Tank Model: DWT 1500L
    • Part Number: 2335102642
    • Gallon Capacity: 400 Gallons
    • Liter Capacity: 1500 Liters
    • Roth Width: 30in
    • Roth Length: 64in
    • Tank Height: 68in (Add 4in for Top Openings). Packaged Height is 78in.
    • Tank Weight: (lbs.): 333

Roth Double Wall Tank Features

  • Completely sealed, every one of our tanks is pressure tested and meets exacting quality control standards.
  • Weld-free galvanized steel outer tank capable of holding 110% of the primary tank.
  • Seamless high-density polyethylene inner tank.
  • Highly visible optical leak alarm.
  • Corrosion-resistant steel filling system with external 2" thread, allowing for an even level in each tank when installed in groups.
  • Up to 50% lighter than conventional steel tanks.
  • Wide handles on each end facilitates transport and handling.
  • Removable base facilitates access to tight spaces and offers greater stability.
  • Compact and economical design. (8 sq. ft. for 1000L)
  • No fittings below the oil line.
  • Unique expansion system ensures storage capacity and faster, easier fill-ups.
  • Optional Roth Tank Cover for outdoor use (must purchase separately).
  • Other available Roth Tank Accessories include tie-down kits, fluid level gauges, duplex bushings and covers, all manufactured exclusive to Double Wall Roth Tanks.
