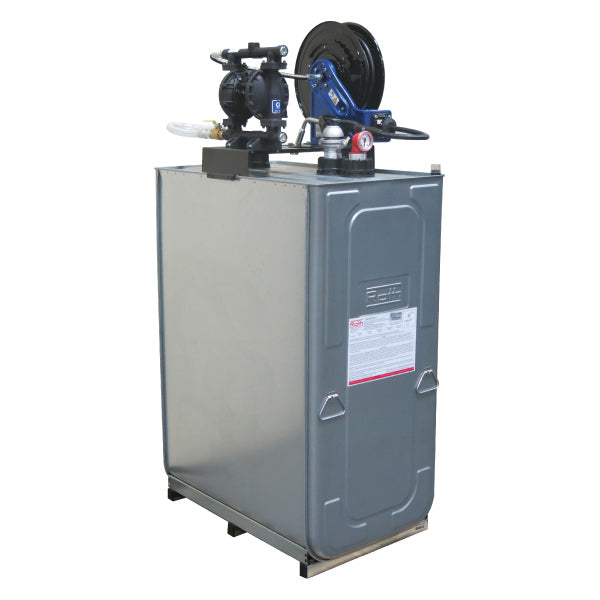

Graco 1050 Double Diaphragm Pump, Preset Meter + Roth Tank Package
by Fluidall
SKU DWT110DDP
Original price
$5,644.00
-
Original price
$7,411.00
Original price
$5,644.00
$5,644.00
-
$7,411.00
Current price
$5,644.00
Professional Grade Roth Double Walled Oil Tanks Packaged with Graco's 1050 Husky Double Diaphragm Pumps are manufactured with the Automotive Service Shop in mind. Each Roth Tank is configured with a complete heavy-duty equipment package and will direct ship from Minnesota, preassembled, to your auto shop, fleet facility, or service center.

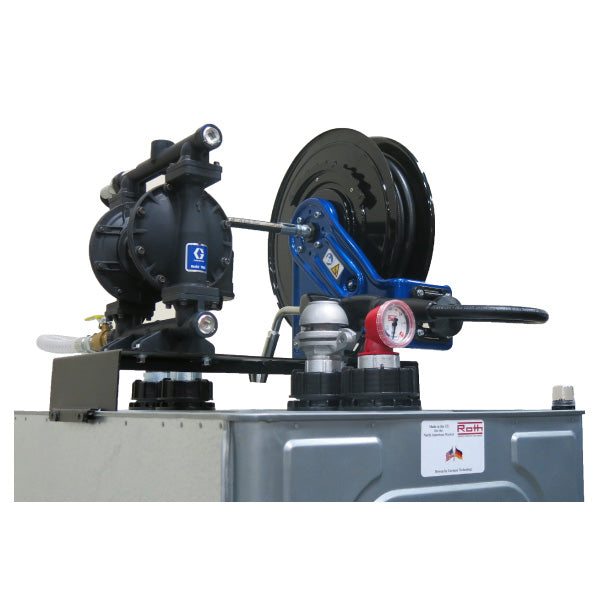

The Graco Husky 1050 Double Diaphragm Pump, Preset Meter + Roth Tank Package includes: Double Wall Roth Tank with Optical Leak Alarm, Fluid Level Gauge and Down Tube, Lockable Fill Cap with Vent, and Pump/Reel Bracket. The Roth Tank is then equipped with a built-to-order dispense package that consists of Graco's Husky 1050 Double Diaphragm Pump, Graco SD Series Reel with 50’ Hose, Preset Dispense Meter and an Air Pressure Regulator.
Our Diaphragm Pump Preset Metered Packages Include
- Double Wall Tank
- Graco Dispense Pkg (Husky 1050 Double Diaphragm Pump, SD Hose Reel with 50' Hose, Preset Meter, Air Pressure Regulator)
- Down Tube
- Fluid Level Gauge
- Lockable Fill Cap with Vent
- Steel Pump and Reel Bracket
Specifications for Graco 1050 Double Diaphragm Pump, Preset Meter + Roth Tank Package
Specifications below are measured for the Roth Tank only, and do not include added measurements from dispense equipment. Certified to UL SU2258, and are compliant with NFPA 30 & 30A.
- 110 Gallon
- 165 Gallon
- 275 Gallon
- 275 Low Profile
- 400 Gallon
-
- Tank Model: DWT 400L
- Part Number: 2335103401
- Gallon Capacity: 110 Gallons
- Liter Capacity: 400 Liters
- Roth Width: 28in
- Roth Length: 29in
- Tank Height: 44in (Add 4in for Top Openings). Packaged Height is 68in.
- Tank Weight: (lbs.): 106
-
- Tank Model: DWT 620L
- Part Number: 2335101861
- Gallon Capacity: 165 Gallons
- Liter Capacity: 620 Liters
- Roth Width: 28in
- Roth Length: 29in
- Tank Height: 61in (Add 4in for Top Openings). Packaged Height is 85in.
- Tank Weight: (lbs.): 132
-
- Tank Model: DWT 1000L
- Part Number: 2335101862
- Gallon Capacity: 275 Gallons
- Liter Capacity: 1000 Liters
- Roth Width: 28in
- Roth Length: 43in
- Tank Height: 61in (Add 4in for Top Openings). Packaged Height is 85in.
- Tank Weight: (lbs.): 167
-
- Tank Model: DWT 1000LH
- Part Number: 2335103722-275LH
- Gallon Capacity: 275 Gallons
- Liter Capacity: 1000 Liters
- Roth Width: 30in
- Roth Length: 51in
- Tank Height: 54in (Add 4in for Top Openings). Packaged Height is 78in.
- Tank Weight: (lbs.): 208
-
- Tank Model: DWT 1500L
- Part Number: 2335102642
- Gallon Capacity: 400 Gallons
- Liter Capacity: 1500 Liters
- Roth Width: 30in
- Roth Length: 64in
- Tank Height: 78in (Add 4in for Top Openings). Packaged Height is 92in.
- Tank Weight: (lbs.): 333
Roth Double Wall Tank Features
- Completely sealed, every one of our tanks is pressure tested and meets exacting quality control standards.
- Weld-free galvanized steel outer tank capable of holding 110% of the primary tank.
- Seamless high-density polyethylene inner tank.
- Highly visible optical leak alarm.
- Corrosion-resistant steel filling system with external 2" thread, allowing for an even level in each tank when installed in groups.
- Up to 50% lighter than conventional steel tanks.
- Wide handles on each end facilitates transport and handling.
- Removable base facilitates access to tight spaces and offers greater stability.
- Compact and economical design. (8 sq. ft. for 1000L)
- No fittings below the oil line.
- Unique expansion system ensures storage capacity and faster, easier fill-ups.
- Optional Roth Tank Cover for outdoor use (must purchase separately).
- Other available Roth Tank Accessories include tie-down kits, fluid level gauges, duplex bushings and covers, all manufactured exclusive to Double Wall Roth Tanks.
