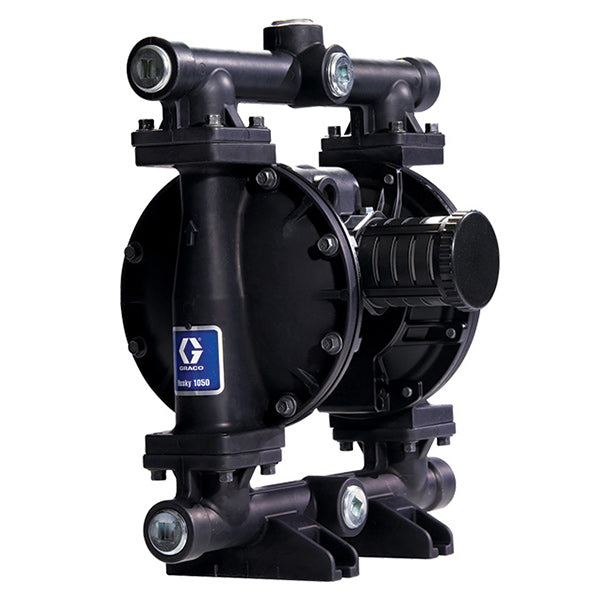

Graco 647016 | Husky 1050 Double Diaphragm Pump (ANTI-FREEZE)

by Graco
SKU 647016
Original price $1,270.00 - Original price $1,270.00
Original price
$1,270.00
$1,270.00 - $1,270.00
Current price $1,270.00

Husky™ 1050 Air-Operated Double Diaphragm Transfer Pump – 1" Aluminum/TPE for Water, Anti-Freeze, and Fuel Transfer

The Husky 1050 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.

Determine the best Husky pump for your applications. Read more at Graco Husky Air Operation Double Diaphragm Pump Selection Guide.


Graco Part Number Pump Description Fluids

Max PSI

647016

Husky 1050
Aluminum – 1 in
Aluminum/TPE

  • Water
  • Anti-Freeze
  • Fuel Transfer

    100 psi
    (6.9 bar)




    FEATURES

    The Husky 1050 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.

    • Longer Diaphragm Life
      Up to 5x longer diaphragm life for less maintenance and downtime
    • Modular Air Valve
      Stall-free, low pulsation operation provides smooth and rapid changeover
    • One-Piece Center Section
      Eliminates air leaks for more efficient operation
    • Four Bolt Joint Design
      Bolted design provides even sealing pressure for leak-free operation
    • Multiple Ports
      Increased number of ports for installation flexibility
    • Optional Features
      DataTrak™ - Runaway protection and tracks material usage
      Pulse Output - Cycle count capability
    • Spring loaded, externally serviceable pilot valves for faster change over and reduced pulsation
    • 30% more efficient than the market leader
    • 20% increase in fluid flow compared to the Husky 1040

    SPECIFICATIONS

    Technical Specifications
    Air Exhaust Port Size (in) 3/4
    Air Exhaust Port Thread Gender Female
    Air Exhaust Port Thread Type NPT
    Air Inlet Size (in) 1/2
    Air Inlet Thread Gender Female
    Air Inlet Thread Type NPT
    Application Industrial
    Ball Material Acetal
    Center Section Material Aluminum
    Compatible Material Water, Antifreeze, Fuel
    Connection Type Threaded
    Diaphragm Material TPE
    Fluid Inlet Size (in) 1
    Fluid Inlet Thread Gender Female
    Fluid Inlet Thread Type NPT
    Fluid Outlet Size (in) 1
    Fluid Outlet Thread Gender Female
    Fluid Outlet Thread Type NPT
    Fluid Section Material Aluminum
    For Use With Water / anti-freeze / fuel transfer
    Manifold O-Ring Material None
    Material Aluminum
    Maximum Air Consumption (SCFM) 25
    Maximum Air Pressure (MPa) 0.69
    Maximum Air Pressure (psi) 100
    Maximum Cycle Rate (CPM) 280
    Maximum Flow Rate (GPM) 50
    Maximum Fluid Pressure (MPa) 0.862
    Maximum Fluid Pressure (psi) 125
    Maximum Operating Temperature (°F) 150
    Maximum Solid Size (in) 0.125
    Overall Height (in) 15.9
    Power Source Air
    Seat Material TPE
    Standards Met UL
    Type Pneumatic Diaphragm Pump
    Weight (lb) 23
    Wetted Material Aluminum, TPE, Acetal
