Graco 244038 | Fire-Ball 300 Series 5:1 Oil Bulk Oil Dispensing Pump Package (Preset Meter)

by Graco
SKU 244038
Original price $4,160.00 - Original price $4,160.00
Original price
$4,160.00
$4,160.00 - $4,160.00
Current price $4,160.00

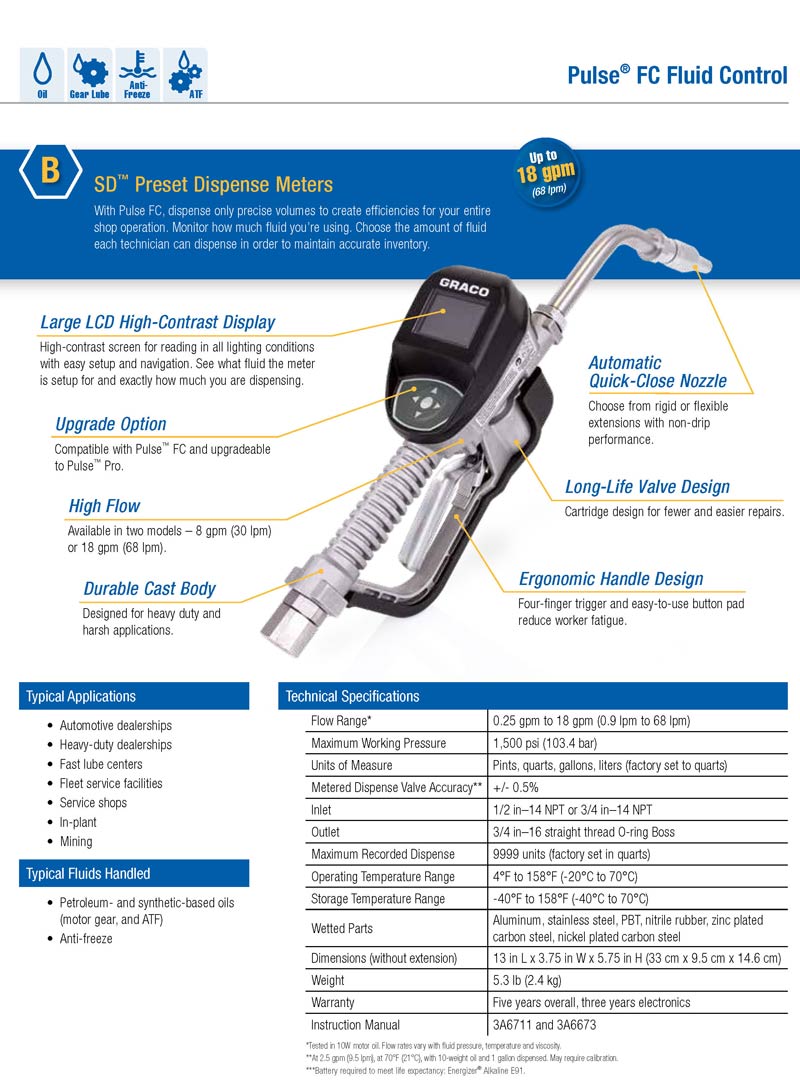

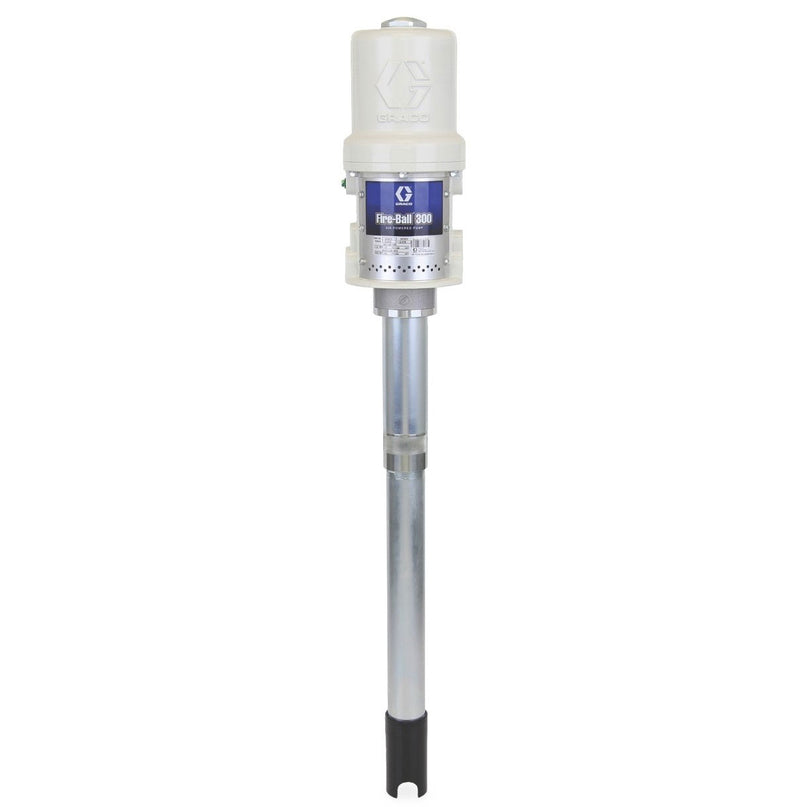

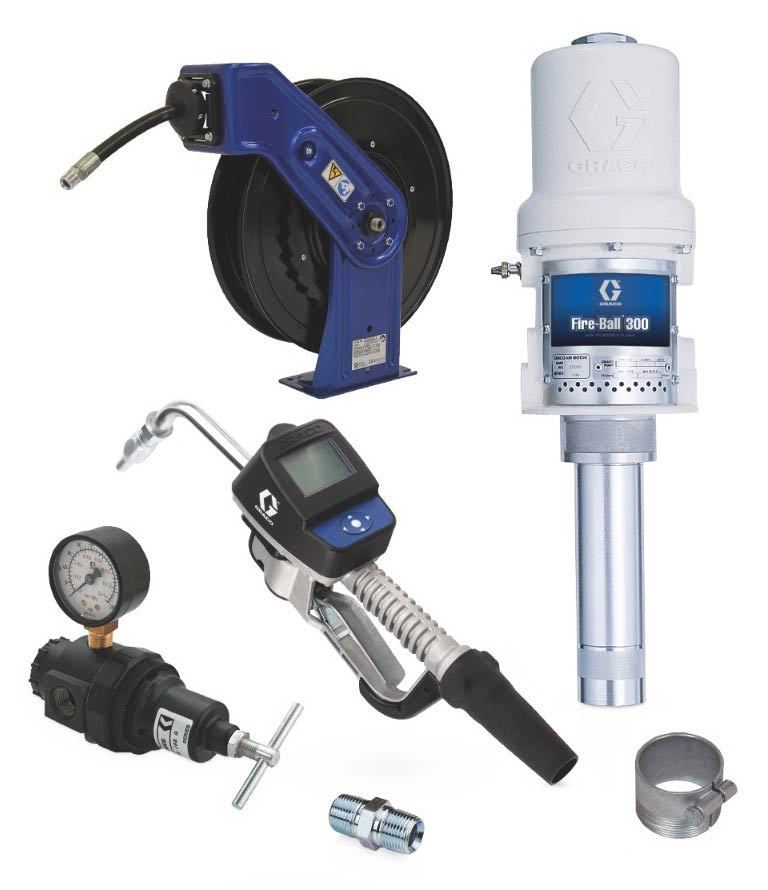

TheĀ Fire-Ball Pump Package includes: 5:1 Graco Fire-Ball 300 Universal Pump, 50' SD Series Reel, SDP8 PresetĀ Meter, Air Pressure Regulator.

As the mainstay pump in the industry for decades, the reputation of Fire-Ball is unrivaled. Built to withstand the test of time with fewer moving parts, our flagship pump is built to extend uptime so customers can be more productive. The durable pumps are renowned for their durability, with pumps built decades ago still operating efficiently.

Install the Fire-Ball 300 5:1 in high pressure, medium volume oil transfer applications such as automotive dealerships, fast lube centers, and service shops.

  • Reliable Flow - A 3 inch (76.2 mm) differential air motor and the double-acting pump design provides reliable fluid flow and accurate dispense.
  • Durable - Thick cast aluminum air motor housing offers unmatched durability.
  • Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
  • Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
  • Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
  • Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair.
  • Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
  • Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

Download Fire-Ball 300 Pump Instructions

Technical Specifications for Fire-Ball 300 Series 5:1 Oil Bulk Oil Dispensing Pump Package

Air Inlet Size (in): 0.375
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Application: Industrial
Compatible Material: Oil
Fluid Inlet Size (in): 1.5
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (in): 1/2
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT

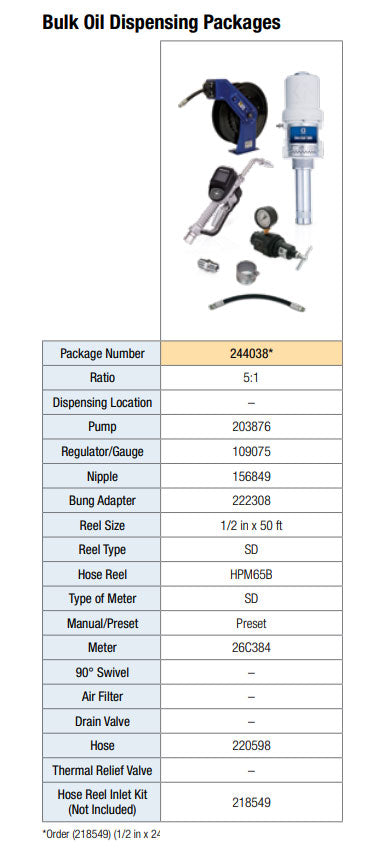

Includes: Fire-Ball 300 5:1 Pump, Regulator/Gauge, Nipple, Bung Adapter, SD Series Reel with Hose, SDP5 Meter
Maximum Air Working Pressure: 180
Maximum Flow Rate (gpm @ 80 cpm): 2.8
Maximum Fluid Working Pressure (psi): 900
Maximum Working Pressure (MPa): 6.2
Maximum Working Pressure (psi): 900
Motor Type: Pneumatic
Mount Location: Universal
Power Type: Pneumatic
Pump Ratio: 5:1
Pump Weight (lb): 17
Series: 300
Type: Piston Pump Package
Wetted Material: Steel, Polyurethane, Aluminum, Buna-N
