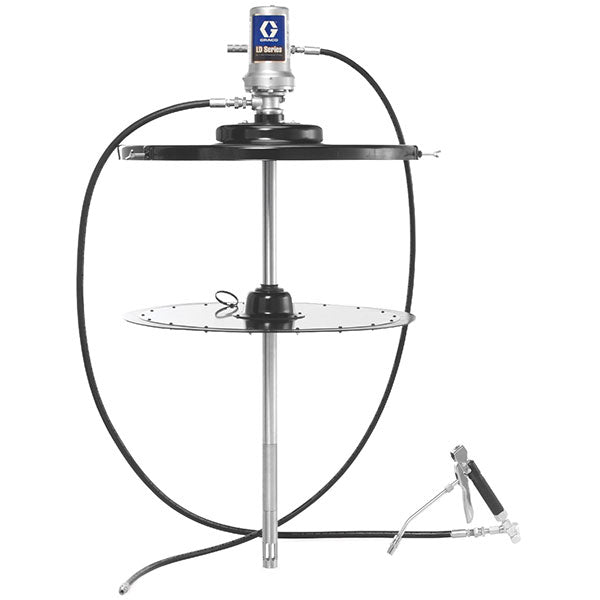

Graco 24J042 | LD Series 50:1 - 400 Lb Grease Package
- Three Inch Air Motor: Provides more power to create better flow.
- Engineered for Durability:Â Patented cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.
- Modular Air Valve:Â Air inlet and exhaust locations are easy to configure with just four bolts for simple, hassle free installations.
- Pilot Valves:Â Patented self-cleaning design increases reliability in dirty air environments and minimizes pressure drop with rapid changeovers for reduced stalling and smoother flow.
Â
Â
TECHNICAL SPECIFICATION
| Air Inlet Size (in) | 0.25 |
| Application | Grease |
| Compatible Material | Grease |
| Fluid Outlet Size (in) | 1/4 |
| Maximum Working Pressure (MPa) | 35 |
| Maximum Working Pressure (psi) | 5000 |
| Power Type | Pneumatic |
| Pump Ratio | 50:1 |
| Type | Piston Pump Package |
| Wetted Material | Steel, Brass, Nitrile Rubber, Polyurethane, UHMWPE, Acetal |
