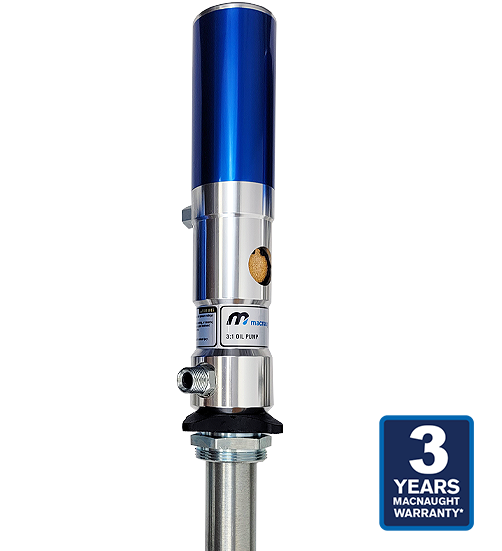

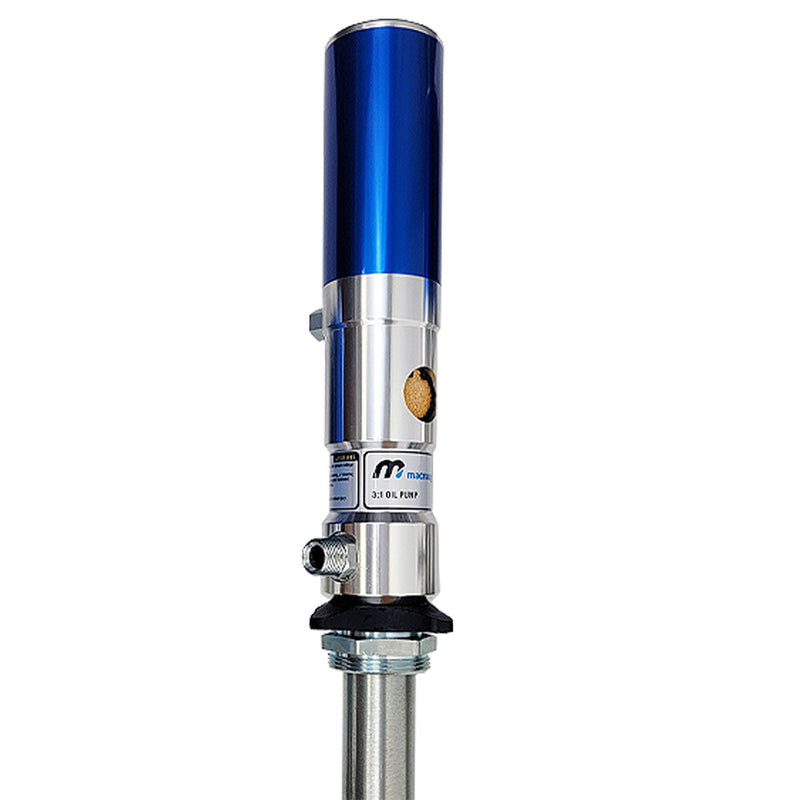

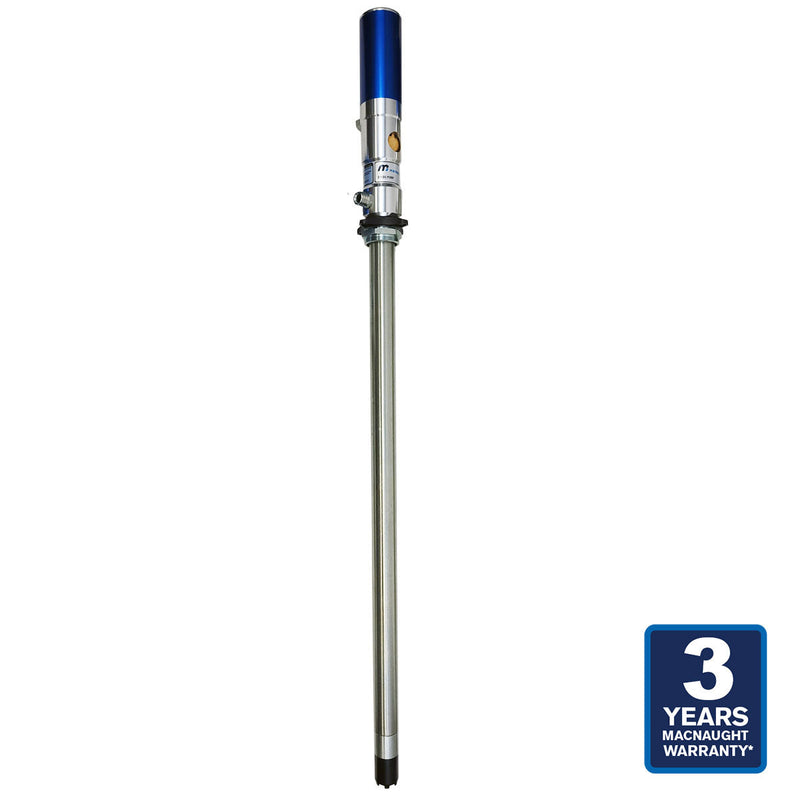

M3 Series 3:1 – 55 Gallon Air Operated Oil Pump | OP583-1-001
SKU OP583-1-001
Original price
$347.00
-
Original price
$347.00
Original price
$347.00
$347.00
-
$347.00
Current price
$347.00
Macnaught M3 Series 3:1 pneumatic oil pumps are high quality economically priced pumps. The ideal choice for the busy repair shop or service truck center. High Flow Rates and Low Air Consumption.
M3 OP583-1-001 – 3:1 Standard Oil Pump with fixed suction tube for 55 gallon Drums. 5.25 GPM with 2-1/2 inch Motor Diameter.
INCLUDES 3 YEAR WARRANTY!
Macnaught M3 Air Operated Oil Pump Specifications| Model number | OP583-1-001 |
| Pump ratio | 3:1 ratio |
| Air Inlet | 30 – 150 PSI |
| Max Fluid Pressure | 450 PSI |
| Air Motor Diameter | 2 1/2 Inch |
| Air Consumption | 3.6 CFM@ 150 PSI |
| Free Flow | 5.25 GPM |
| Suction Tube Diameter | 1 5/8 Inch |
| Suction Tube Length | 37" |
| Air Inlet | 1/4 Inch FNPT |
| Oil Outlet | 1/2 Inch MNPT |
| Warranty | 3 years |
Instruction Manual: PDF
Features & Benefits:
• Double Acting, Highly Efficient & Light Weight• Suitable for all oils up to SAE 140W
• Waste Oil, Coolant and ATF compatible
• Each M3 Oil Pump comes with Suction Tube & Filter
• Adjustable 2 inch Bung Adapter
• Minimal Internal Pump Component Design
• 3 Year Warranty
