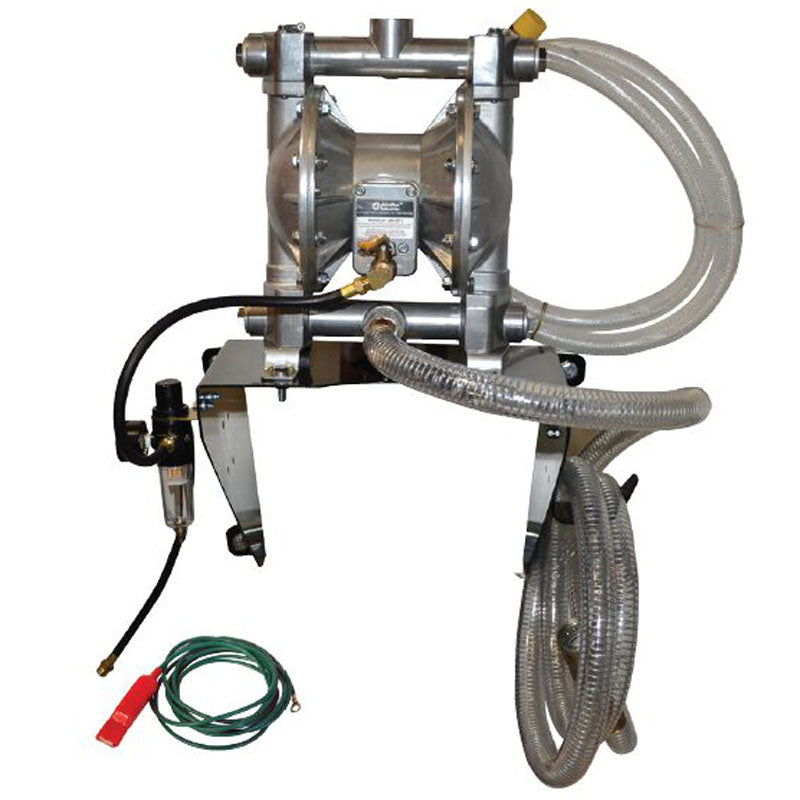

Air Operated Diaphragm Pump Evacuation System Kit (Non UL) | John Dow Industries | JDI-DPES
Air-Operated Diaphragm Pump Evacuation System Kit (Non-UL)
This versatile Air-Operated Diaphragm Pump Evacuation System Kit comes in a leak-free, all-bolted durable construction for use in automotive applications, among others. Rated for use with diesel, kerosene and oil, this pump features O-ring seals and Nitrile diaphragm material, making it ideal for low-viscosity petroleum fluids.

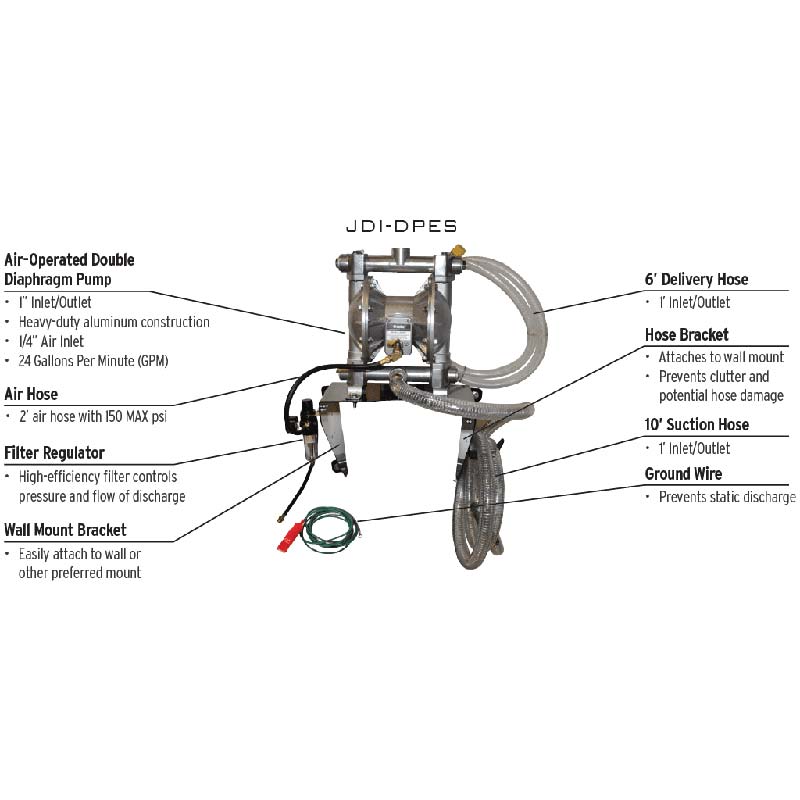

JDI-DPES Features:
- Air-Operated Double Diaphragm Pump
- 1" Inlet/Outlet
- Heavy-duty aluminum construction
- 1/4" Air Inlet
- 24 Gallons Per Minute (GPM)*
- 2' Air Hose with 115 MAX psi
- High-efficiency filter controls pressure and flow of discharge
- Wall Mount Bracket easily attaches to wall or other preferred mount
- 6' Delivery Hose with 1" Inlet/Outlet
- Hose Bracket attaches to wall mount and prevents clutter and potential hose damage
- 10' Suction Hose with 1" Inlet/Outlet
- Ground Wire prevents static discharge
Specifications
| JDI-DPES | |
|---|---|
| Flow Rate | 24 GPM |
| Ball Valve | PTFE |
| Suction Hose | 10' |
| Delivery Hose | 6' |
| Material | Nitrile |
| Weight (Pump Only) | 22 lbs. |
| Max psi | 115 psi |
*Flow rate will vary based on temperature, viscosity, purity, and type of fluid.
