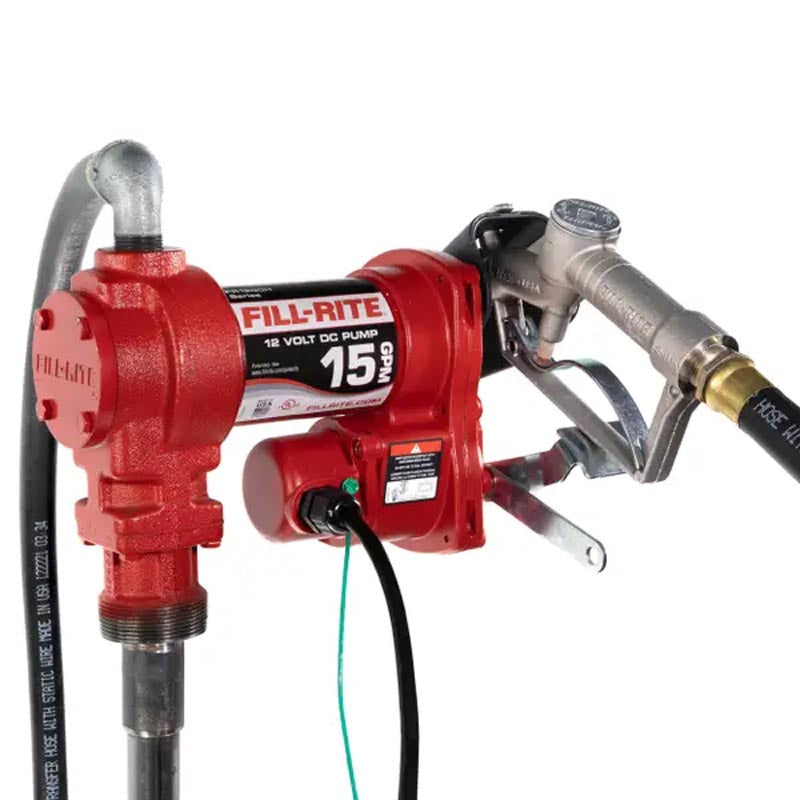

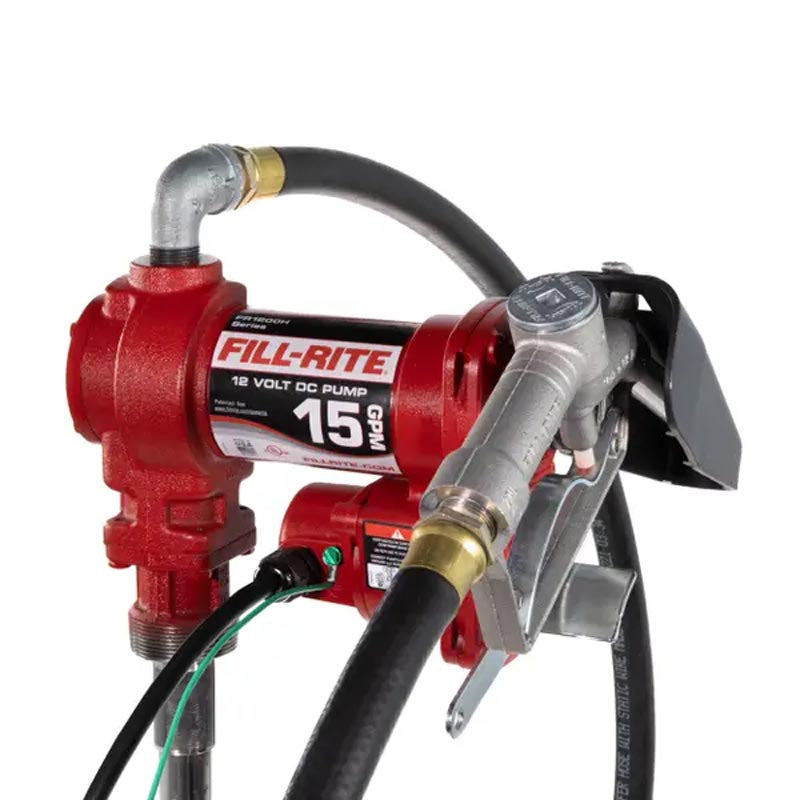

Fill-Rite FR1210H 12V DC 15 GPM Fuel Transfer Pump with Hose & Nozzle

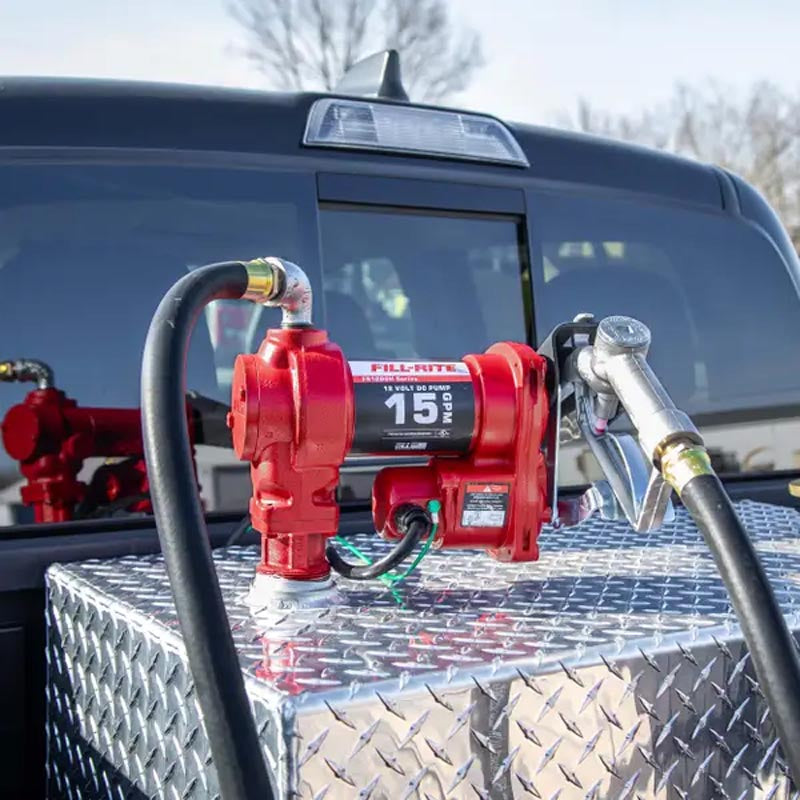

The Fill-Rite FR1210H is a heavy-duty 12V DC fuel transfer pump delivering up to 15 GPM. Designed for mobile transfer tanks and equipment fueling, this complete bundle includes a hose, manual nozzle, telescoping suction pipe and installation components.

Features

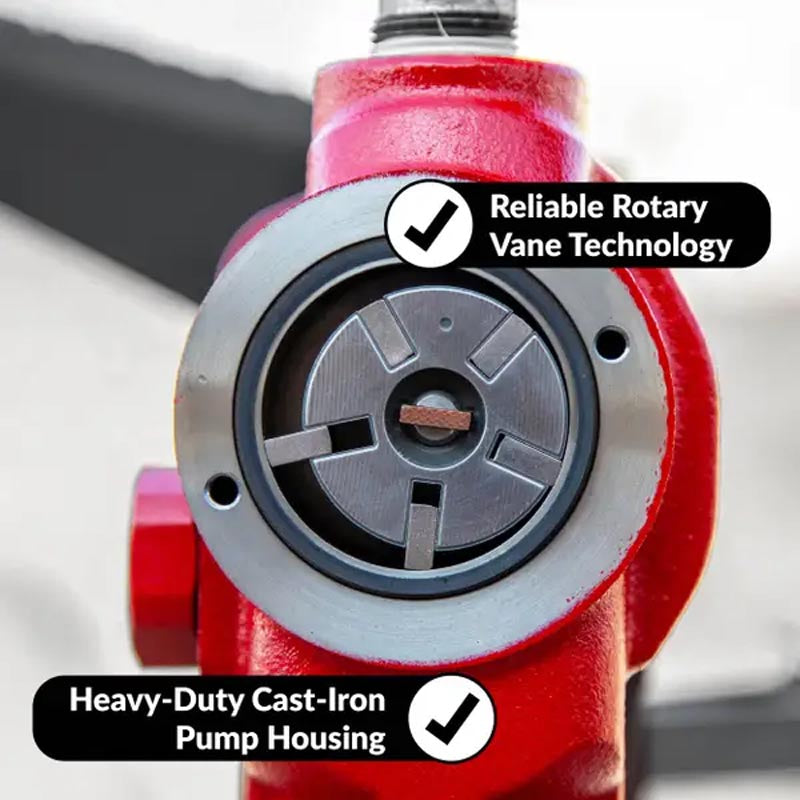

• 15 GPM Flow Rate: Rotary vane pump technology delivers up to 15 GPM for 15 to 60 gallon equipment fuel tanks.
• Heavy-Duty Construction: Cast-iron pump housing is built for demanding field and job-site use.
• 12V DC Power: Designed for installation on truck-bed transfer tanks and connection to a 12V battery.

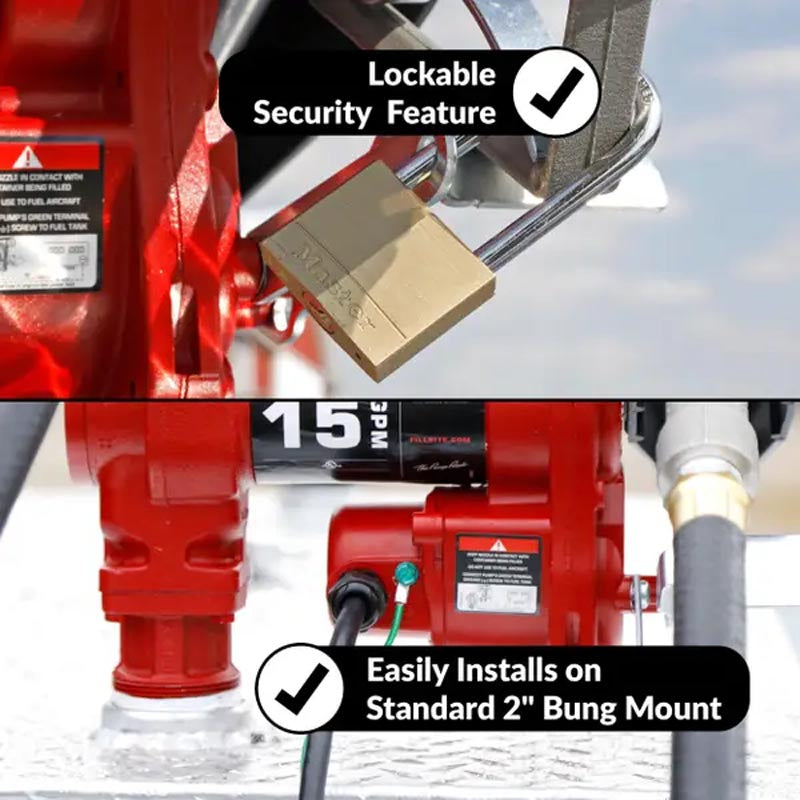

• 2" Bung Mount: Fits standard 2" NPT bung openings for transfer tank installation.
• Fuel Compatibility: For diesel, kerosene, mineral spirits, biodiesel up to B20 and gasoline up to E15.
• Self-Priming: Provides up to 8 ft. of suction lift.
• Thermal Protection: Thermally protected motor helps protect against overheating.
• Built-In Strainer: 20-micron mesh strainer helps filter fuel particulates before they reach the pump.
• Flexible Installation: Rotating electrical junction box adjusts 180° for easier wiring in tight spaces.
• Limited Lifetime Warranty: Backed by Fill-Rite's Limited Lifetime Warranty.

Specifications

• Flow Rate: 15 GPM / 57 LPM
• Power: 12V DC
• Motor: 0.25 HP
• Maximum Current: 20 A
• Inlet: 1" Female NPT
• Outlet: 3/4" Female NPT
• Mount: 2" NPT Bung Mount
• Duty Cycle: 30 min. on / 30 min. off
• Maximum Operating Pressure: 16 PSI
• Discharge Head: 37 ft.
• Suction Lift: 8 ft.
• Dry Vacuum: 5 in. Hg
• Strainer: 20-micron mesh
• Operating Temperature: -15° to 150°F
• Viscosity Range: 0.5 to 5.5 cSt
• Self-Priming: Yes
• Thermal Protection: Yes

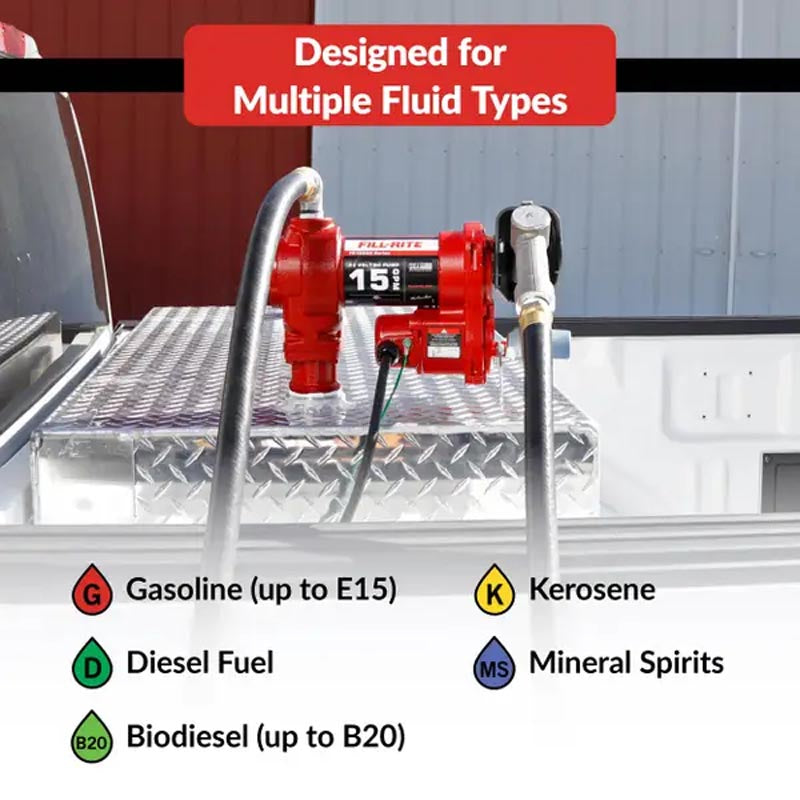

Compatible Fluids

• Diesel
• Kerosene
• Gasoline up to E15
• Biodiesel up to B20
• Mineral Spirits

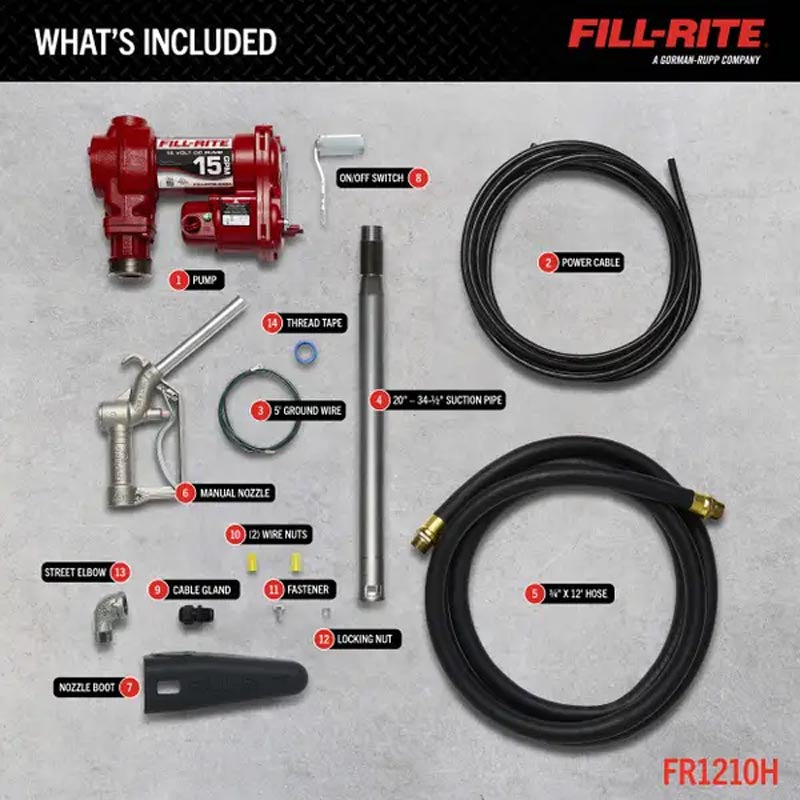

What's Included

• 18 ft. power cable with 12-gauge wire and bare leads
• 20" to 34-1/2" steel telescoping suction pipe
• 3/4" x 12 ft. discharge hose with static ground wire
• 3/4" cast aluminum manual nozzle
• Nozzle boot
• PTFE tape roll
• 3/4" NPT street elbow
• Ground wire
• Cable gland
• 2 wire nuts
• Locking nut
• Fastener

Dimensions & Weight

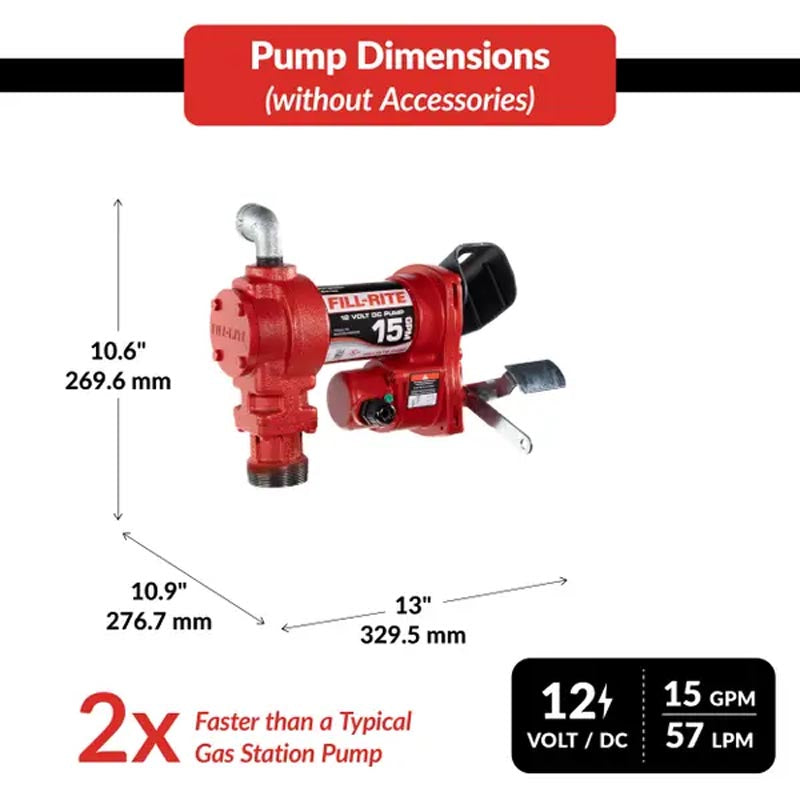

• Assembled Dimensions: 8.4" H x 13" W x 6.5" D
• Assembled Weight: 29.1 lbs.

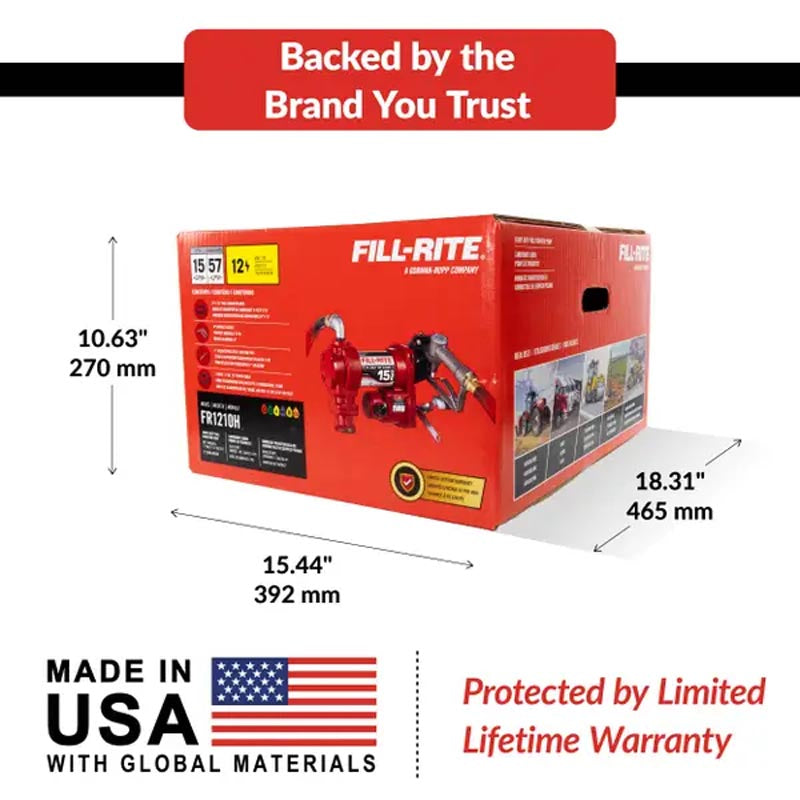

• Package Dimensions: 10.63" H x 15.44" W x 18.31" D
• Gross Weight: 32 lbs.

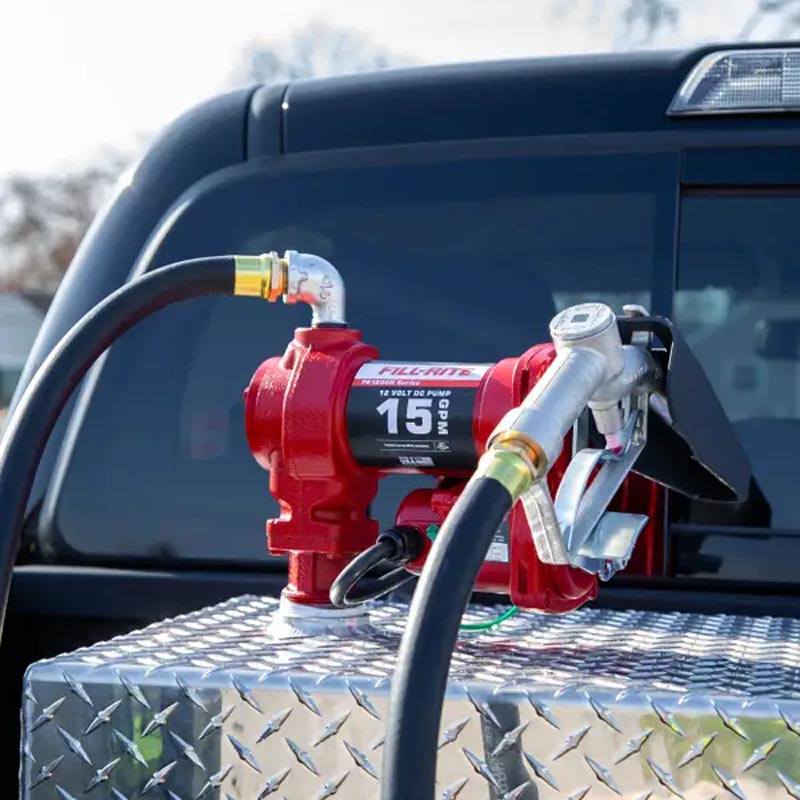

Application: Ideal for mobile fuel transfer from truck-bed transfer tanks to equipment, vehicles and other fuel-powered machinery.

California Proposition 65 Warning: This product can expose you to chemicals including hexavalent chromium compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. See the California Proposition 65 website for additional information.
