509 Gallon Round Horizontal Tank, Double Wall
by PeeDee Tank
SKU 500PDHDW
Original price
$3,395.00
-
Original price
$3,395.00
Original price
$3,395.00
$3,395.00
-
$3,395.00
Current price
$3,395.00

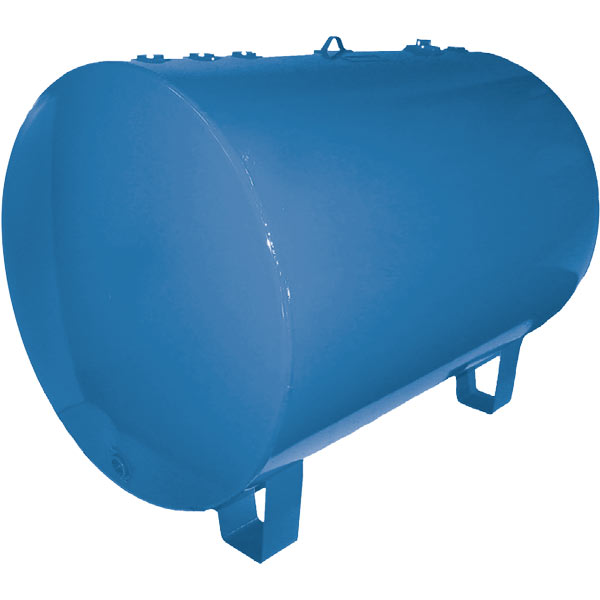

Steel Round Horizontal Tanks are UL142 rated and built both in single and double walled configurations for the storage and dispense of lubricants, oils and chemicals.

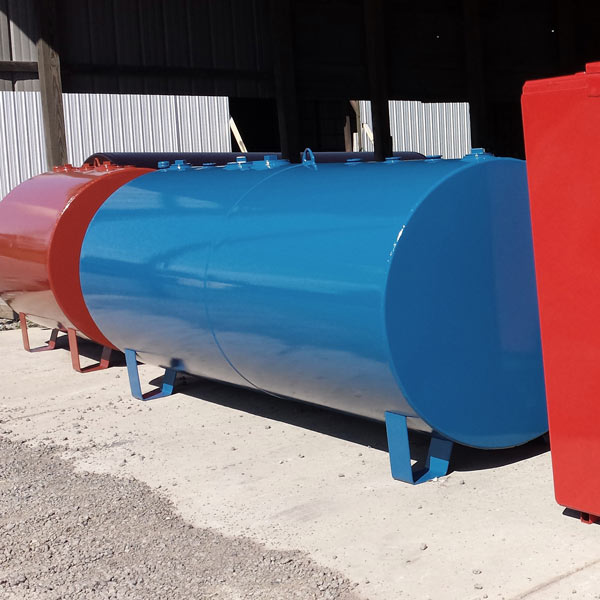

Each double walled Steel Round Tank is painted blue and features a universal hose reel mounting plate. Steel double walled tanks have a 2" pipe with an elbow at the bottom of the tank that allows for insertion of a gauge for inspection of the interstitial space. These steel round tanks utilize the latest welding technology and testing standards to ensure that they are of highest quality tanks available.
| Tank Model | Gallon Capacity | Tank Dimensions | Tank Openings |
|---|---|---|---|
| 150PDHDW | 147 Gallons | 30"Dia x 48"L | (5) 2" Top NPT, (2) 4" NPT Emergency Vent, (1) 2" Monitoring Pipe |
| 280PDHDW | 264 Gallons | 36"Dia x 60"L | (5) 2" Top NPT, (2) 4" NPT Emergency Vent, (1) 2" Monitoring Pipe |
| 500PDHDW | 509 Gallons | 48"Dia x 65"L | (5) 2" Top NPT, (2) 4" NPT Emergency Vent, (1) 2" Monitoring Pipe |
| 1000PDHDW | 1,018 Gallons | 48"Dia x 130"L | (5) 2" Top NPT, (2) 6" NPT Emergency Vent, (1) 2" Monitoring Pipe |
| 2000PDHDW | 2,005 Gallons | 64"Dia x 144"L | (5) 2" Top NPT, (2) 6" NPT Emergency Vent, (1) 2" Monitoring Pipe |
