Metered Oil Control Gun with Rigid Ext. | HG20R-012E-02

SKU HG20R-012E-02
Original price $441.00 - Original price $441.00
Original price
$441.00
$441.00 - $441.00
Current price $441.00

Metered Control Gun HG20 & IM012E, 1/2″ NPT inlet, rigid extension, auto shutoff nozzle, handle guard, 8 GPM/30 LPM flow rate, 1000psi.

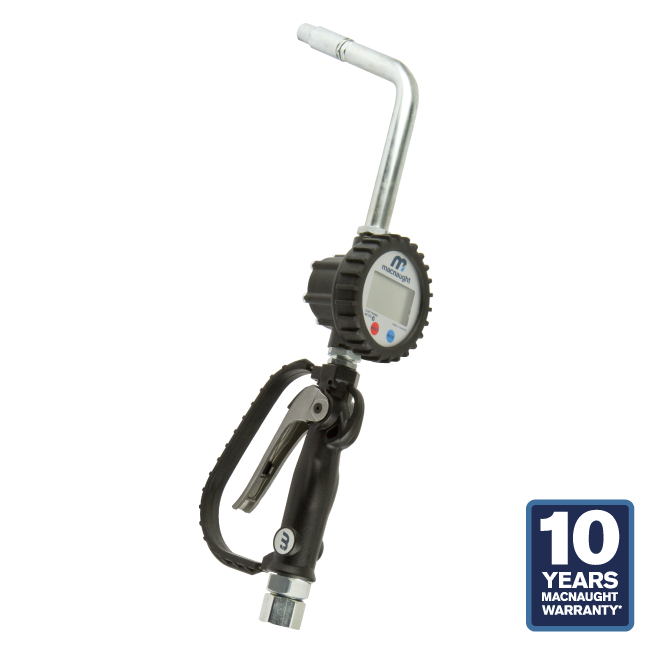

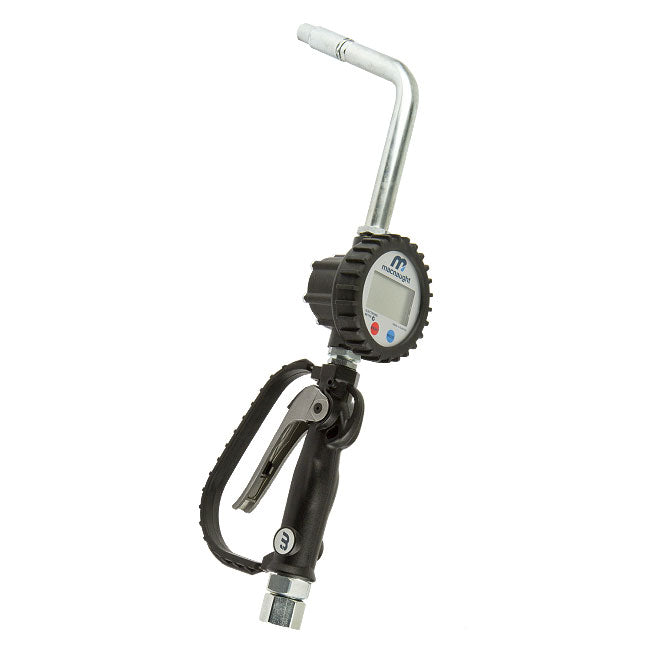

Macnaught offers the HG20R-012E-02 highly accurate electronic metered oil control with a rigid extension and automatic non-drip nozzle. The meter features a 6-digit totalizer and resettable batch total. It comes with a trigger guard, latching trigger and is fully serviceable. With a ½ inch NPT inlet and maximum working pressure up to 1000 psi this gun delivers a flow rate of up to 8 gallons a minute. Used for oil, ATF and antifreeze up to a maximum viscosity of SAE 140.

INCLUDES 10 YEAR WARRANTY!

Frequently bought together with: Ratio Air Operated Oil Stub Pump OILMASTER® T312-02 or the Ratio Air Operated Oil Stub Pump OILMASTER® T512-02

Macnaught Metered Control Gun Specifications
Model number HG20R-012E-02
Flow Range up to 8gal(30L)/min
Inlet Swivel 1/2″ NPT (F)
Meter Electronic
Meter Accuracy +/-0.5%
Features 6 digit totalizer
Extension Rigid with non-drip nozzle
Non drip nozzle Automatic
Latching Trigger
Fully Serviceable
Warranty
10 years
Parts Guarantee 10 years
Compatible Fluid engine, gear, ATF, hydraulic oils up to SAE140 viscosity & anti-freeze/anti boil
Max Working Pressure 1000psi(6900kPa)



Metered Control Guns Data Sheet: PDF
Instruction Manual: PDF

Features & Benefits:
  • Digital meter accurate to +/- 0.5%
  • 6-digit totalizer
  • Auto Non-Drip Nozzle
  • Rigid extension
  • 1/2″NPT swivel inlet
  • Trigger guard
  • Trigger lock
  • Fully serviceable
