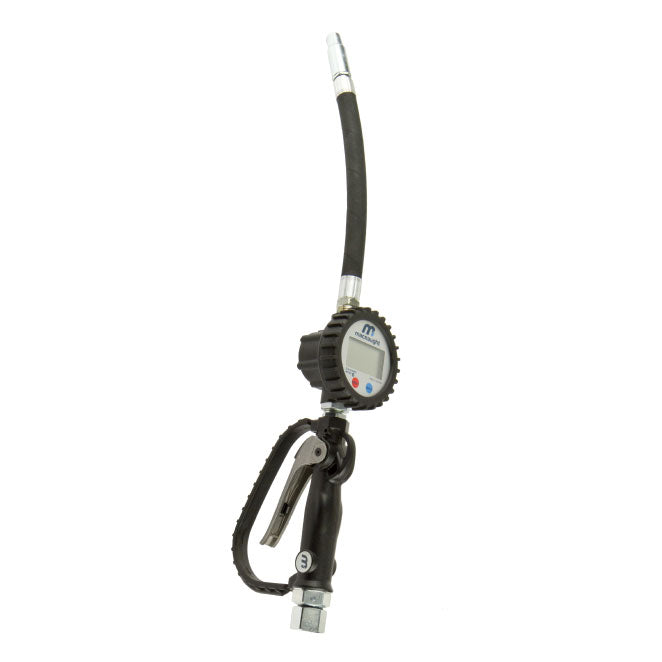

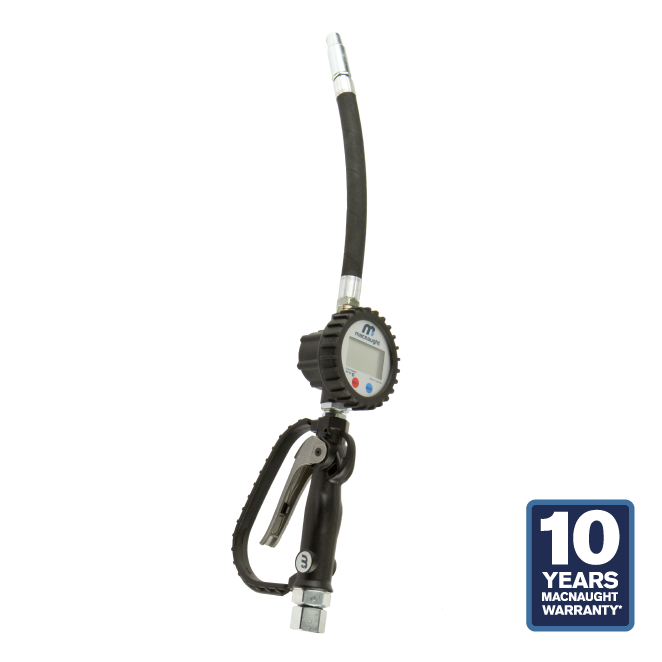

Metered Oil Control Gun with Flex Ext. | HG20F-012E-02
Factory Shipped. This product typically ships within 1-3 business days.
Metered Control Gun HG20 & IM012E, 1/2″ NPT inlet, flexible extension, 30 LPM/8 GPM flow rate, 1000psi.
Macnaught offers the HG20F-012E-02 highly accurate electric metered oil control with a flexible extension and automatic non-drip nozzle. The meter features a 6-digit totalizer and resettable batch total. It comes with a trigger guard, latching trigger and is fully serviceable. With a ½ inch NPT inlet and maximum working pressure up to 1000 psi this gun delivers a flow rate of up to 8 gallons a minute. Used for oil, ATF and antifreeze up to a maximum viscosity of SAE 140.
INCLUDES 10 YEAR WARRANTY!
Frequently bought together with: Ratio Air Operated Oil Stub Pump OILMASTER® T312-02 or the Ratio Air Operated Oil Stub Pump OILMASTER® T512-02
Macnaught Metered Control Gun Specifications| Model number | HG20F-012E-02 |
| Flow Range | up to 8gal(30L)/min |
| Inlet Swivel | 1/2″ NPT (F) |
| Meter | Electronic |
| Meter Accuracy | +/-0.5% |
| Features | 6 digit totalizer |
| Extension | Flexible with non-drip nozzle |
| Non drip nozzle | Automatic |
| Latching Trigger | √ |
| Fully Serviceable | √ |
| Warranty |
10 years |
| Parts Guarantee | 10 years |
| Compatible Fluid | engine, gear, ATF, hydraulic oils up to SAE140 viscosity & anti-freeze/anti boil |
| Max Working Pressure | 1000psi(6900kPa) |
Metered Control Guns Data Sheet: PDF
Instruction Manual: PDF
- Digital meter accurate to +/- 0.5%
- 6-digit totalizer
- Auto Non-Drip Nozzle
- Flexible extension
- 1/2″NPT swivel inlet
- Trigger guard
- Trigger lock
- Fully serviceable
