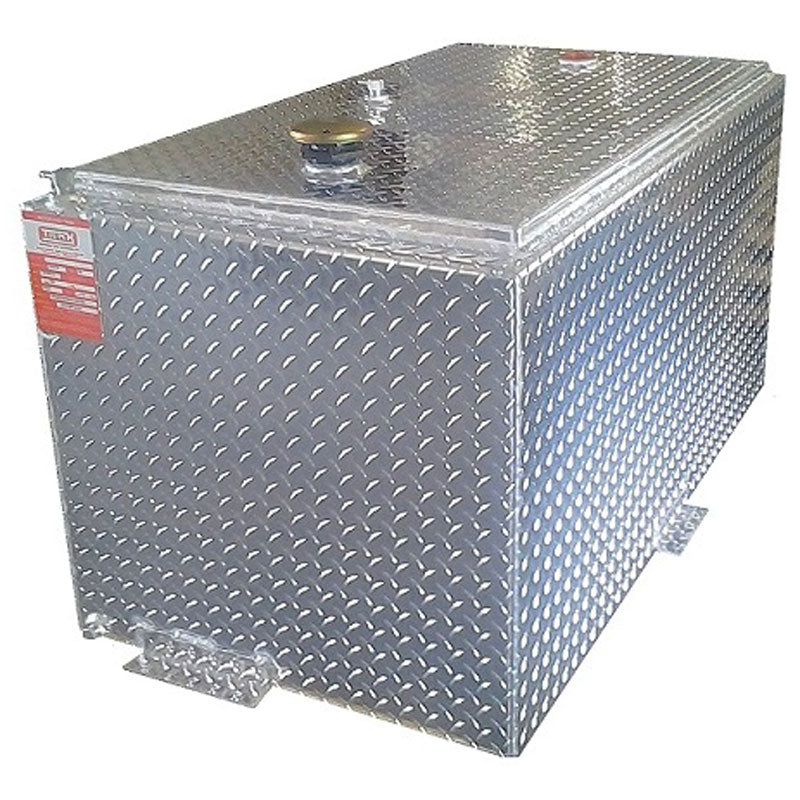

98 Gallon Double Wall Refueling Tank | DOT Approved | ATI TTR98DW
98 Gallon Double Wall Refueling Tank | DOT Approved Built for Commercial, State, and Industrial Applications
ATI Refueling Tanks are engineered to withstand the toughest conditions, giving you durability and peace of mind. These tanks are designed for commercial, state, and industrial applications, holding and dispensing fuels safely and legally.
Rectangle Double Wall Refueling Tanks are built for ultimate strength, safety, and long-term reliability. Designed and constructed with the industrial user in mind, these tanks meet the highest standards for fuel containment and environmental protection. Each tank is legal in all 50 states for the transport and storage of gasoline, kerosene, methanol, diesel, and aviation fuel.
Available in 98-gallon and 110-gallon capacities, Double Wall Refueling Tanks are ideal for users who require extra protection against leaks and spills. The rectangle shape offers maximum capacity while maintaining a compact footprint — perfect for trucks, trailers, and stationary applications.
Every tank includes two 2" NPT bungs, allowing you to position the fuel fill cap and transfer pump on the side that best fits your setup. Built from rugged diamond plate aluminum and fully welded for superior strength, ATI’s Double Wall Refueling Tanks are engineered to perform in demanding environments — trusted by farmers, contractors, municipalities, and private operators who expect their equipment to last a lifetime.
98 Gallon Double Wall Refueling Tank Dimensions
Important Notes:
- Mounting tabs extend out 1-1/2"
- Add 2 1/2" for cap height
Â
![]() |
|
Refueling Tank Features:
- Special Permit issued by the U.S. Department of Transportation
- Legal for gasoline, diesel, methanol, kerosene, aviation fuel, and other liquids
- Commercial-grade lockable vent/prevent filler cap
- Fully baffled to minimize fuel movement
- Two 2" NPT reinforced bungs for superior strength
- 3/8" NPT drain for easy maintenance
- Hold-down brackets for secure installation
- Pressure and leak tested for safety
- Clean and debris-free inside and out
- 1-year limited warranty
