Samson 3:1 Oil Pump, Non-Preset Meter + Roth Tank Package

Original price $3,958.00 - Original price $5,719.00
Original price
$3,958.00 - $5,719.00
Current price $3,958.00

Professional Grade Roth Double Walled Oil Tank Packages are manufactured with Automotive Service Shops in mind. Each Roth Tank is configured with heavy-duty dispense equipment. The Roth storage and dispense package will direct ship from Minnesota, preassembled, to your auto shop, fleet facility, or service center.

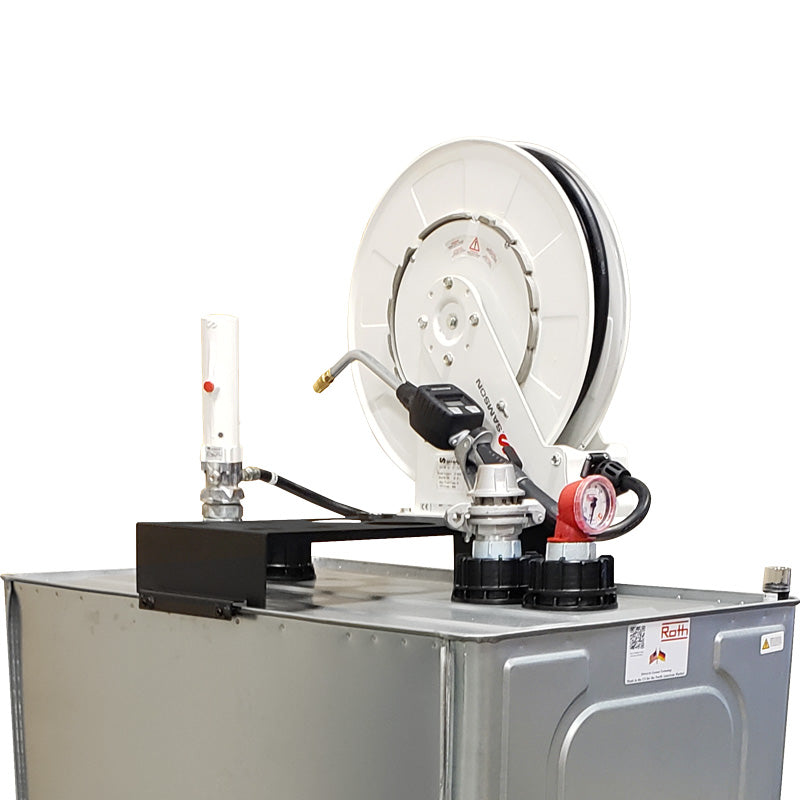

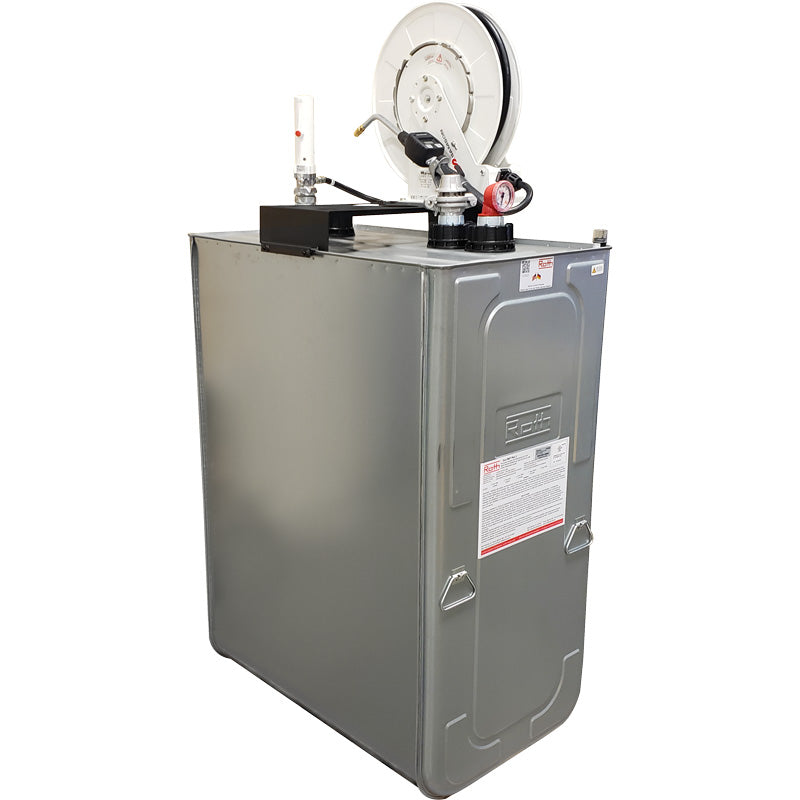

The Non-PRESET Metered Samson and Roth Tank Package includes a Double Wall Roth Tank with Optical Leak Alarm, Liquid Level Gauge and Lockable Fill Cap with Vent, Samson 3:1 Series Oil Pump Package, Hose Reel with 50' Hose, Air Filter Regulator and Digital Dispensing Non-PRESET Gun.

Our Double Wall Tank Premium Metered Packages offer

  • Roth Double Wall Tank¬†
  • Samson Dispense Package¬†(Samson 3:1 Oil Pump, Hose Reel with 50' Hose, Non-Preset Meter, Air Pressure Regulator)
  • Down Tube
  • Fluid Level Gauge
  • Lockable Fill Cap with Vent
  • Steel Pump and Reel Bracket

Specifications for Samson 3:1 Oil Pump with Non-Preset Meter Roth Double Wall Tank Package

Specifications below are measured for the Roth Tank only, and do not include added measurements from dispense equipment. Certified to UL SU2258, and are compliant with NFPA 30 & 30A.

  • 110 Gallon
  • 165 Gallon
  • 275 Gallon
  • 275 Low Profile
  • 400 Gallon
    • Tank Model:¬†DWT 400L
    • Part Number:¬†2335103401
    • Gallon Capacity:¬†110 Gallons
    • Liter Capacity:¬†400 Liters
    • Roth Width:¬†28in
    • Roth Length:¬†29in
    • Tank Height:¬†44in (Add 4in for Top Openings). Packaged Height is 68in.
    • Tank Weight:¬†(lbs.): 106
    • Tank Model:¬†DWT 620L
    • Part Number:¬†2335101861
    • Gallon Capacity:¬†165 Gallons
    • Liter Capacity:¬†620 Liters
    • Roth Width:¬†28in
    • Roth Length:¬†29in
    • Tank Height:¬†61in (Add 4in for Top Openings). Packaged Height is 85in.
    • Tank Weight:¬†(lbs.): 132
    • Tank Model:¬†DWT 1000L
    • Part Number:¬†2335101862
    • Gallon Capacity:¬†275 Gallons
    • Liter Capacity:¬†1000 Liters
    • Roth Width:¬†28in
    • Roth Length:¬†43in
    • Tank Height:¬†61in (Add 4in for Top Openings). Packaged Height is 85in.
    • Tank Weight:¬†(lbs.): 167
    • Tank Model:¬†DWT 1000LH
    • Part Number:¬†2335103722-275LH
    • Gallon Capacity:¬†275 Gallons
    • Liter Capacity:¬†1000 Liters
    • Roth Width:¬†30in
    • Roth Length:¬†51in
    • Tank Height:¬†54in (Add 4in for Top Openings). Packaged Height is 78in.
    • Tank Weight:¬†(lbs.): 208
    • Tank Model:¬†DWT 1500L
    • Part Number:¬†2335102642
    • Gallon Capacity:¬†400 Gallons
    • Liter Capacity:¬†1500 Liters
    • Roth Width:¬†30in
    • Roth Length:¬†64in
    • Tank Height:¬†78in (Add 4in for Top Openings). Packaged Height is 92in.
    • Tank Weight:¬†(lbs.): 333

Roth Double Wall Tank Features

  • Completely sealed, every one of our tanks is pressure tested and meets exacting quality control standards.
  • Weld-free galvanized steel outer tank capable of holding 110% of the primary tank.
  • Seamless high-density polyethylene inner tank.
  • Highly visible optical leak alarm.
  • Corrosion-resistant steel filling system with external 2" thread, allowing for an even level in each tank when installed in groups.
  • Up to 50% lighter than conventional steel tanks.
  • Wide handles on each end facilitates transport and handling.
  • Removable base facilitates access to tight spaces and offers greater stability.
  • Compact and economical design. (8 sq. ft. for 1000L)
  • No fittings below the oil line.
  • Unique expansion system ensures storage capacity and faster, easier fill-ups.
  • Optional Roth Tank Cover for outdoor use (must purchase separately).
  • Other available Roth Tank Accessories include tie-down kits, fluid level gauges, duplex bushings and covers, all manufactured exclusive to Double Wall Roth Tanks.
